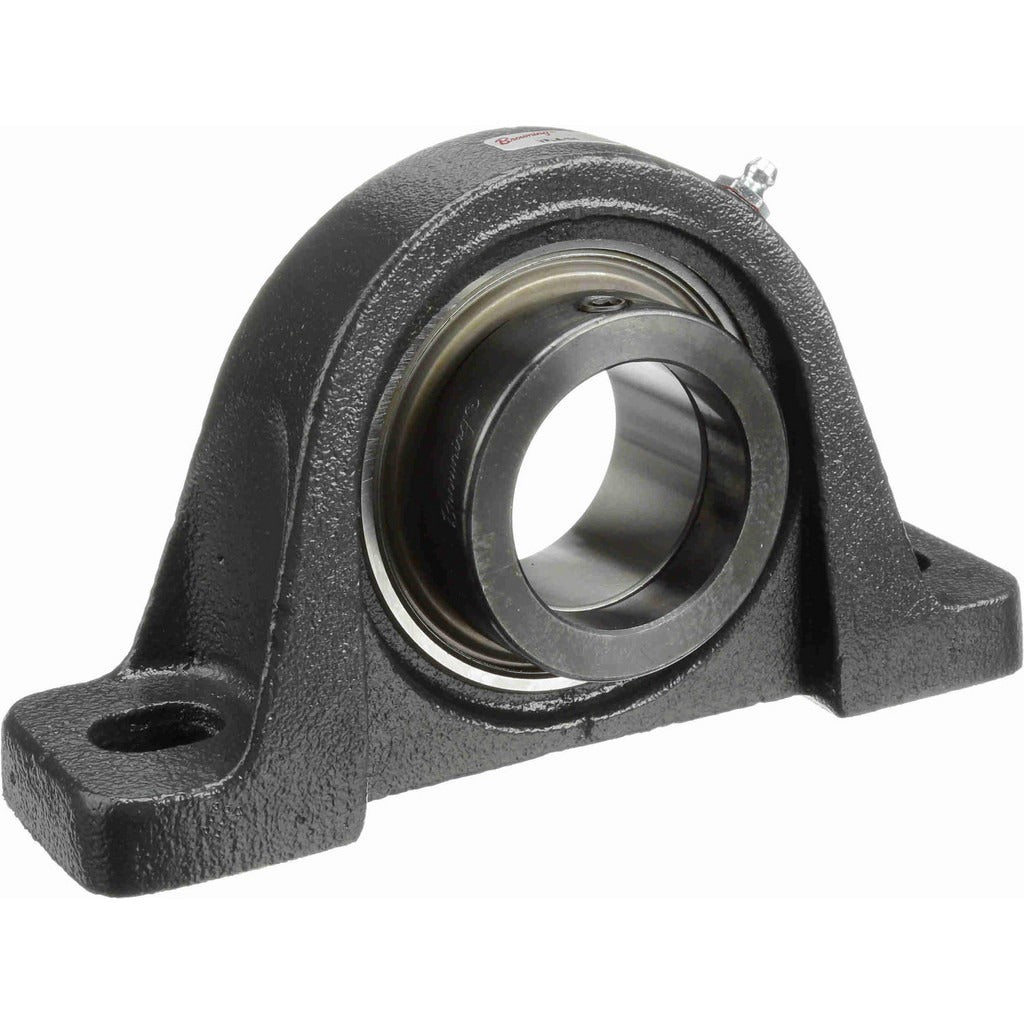

Browning 767322 Pillow Block Bearing 1-15/16 in Cast Iron

Product Description

The BROWNING 767322 is a cast iron pillow block bearing in the VPLE 100 series, designed to support rotating shafts in industrial and commercial drive applications. It features a 1-15/16 inch straight bore with an eccentric locking collar for positive shaft retention. Static load capacity is 5,216 pounds and dynamic load capacity is 7,889 pounds, making it well suited for moderate-to-heavy radial loads. The bearing insert is manufactured from 52100 bearing steel. Rated to 2,000 RPM. Millwrights, maintenance mechanics, and industrial equipment technicians are the primary installers of this unit.

The 767322 pillow block is used in conveyor systems, fan assemblies, blower shafts, pump drives, and general industrial machinery where a two-bolt base-mount bearing is required. The housing accepts a ball bearing insert and mounts to a flat surface via two bolts spaced 6-3/16 inches center-to-center. Overall assembly height is 4-1/2 inches, overall length is 8 inches, and the base-to-center height is 2-3/16 inches. This configuration suits applications where shaft centerline height and bolt pattern must match existing equipment layouts.

Key Features

• 1-15/16 inch straight bore with eccentric locking collar for secure shaft engagement
• 5,216 pound static load capacity and 7,889 pound dynamic load capacity
• Cast iron housing for durability in industrial environments
• 52100 bearing steel insert for wear resistance under sustained radial loads
• 2,000 RPM maximum speed rating
• Two-bolt mounting pattern with 6-3/16 inch center-to-center bolt spacing

Compatibility

Designed as an OEM-style replacement or direct installation pillow block for applications requiring a two-bolt, 1-15/16 inch bore bearing with a VPLE 100 series housing footprint.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Align the shaft carefully before tightening the eccentric collar to avoid preloading the bearing. Verify bolt hole spacing and shaft centerline height against equipment drawings before mounting. Consult equipment manufacturer specifications for lubrication intervals and grease type.
