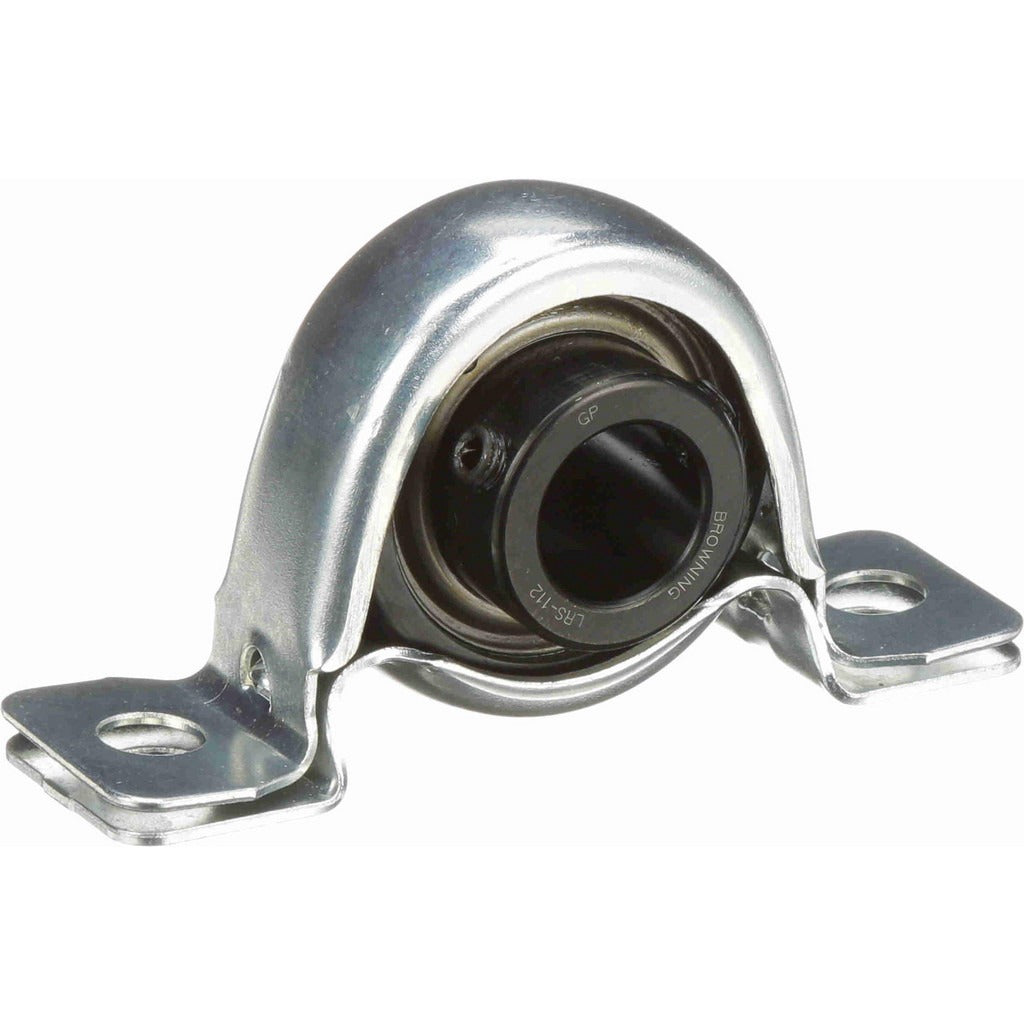

Browning 767114 Set Screw Pillow Block Bearing 3/4 in Id

Product Description

The BROWNING 767114 is a set screw locking pillow block bearing in the SSRPS 100 series, designed to support rotating shaft assemblies in light to medium industrial and mechanical applications. The unit features a 3/4 inch straight bore and a stamped steel housing with a 52100 bearing steel ball insert. Static load capacity is 1,444 pounds and dynamic load capacity is 2,611 pounds, with a maximum rated shaft speed of 4,000 RPM. The two-bolt base mount and compact overall height of 2-13/64 inches make it a practical choice for equipment maintenance, conveyor systems, and drive assemblies where space and load ratings are the primary selection criteria.

This pillow block is suited for residential and light commercial mechanical systems, including HVAC fan shaft assemblies, conveyor drives, agricultural equipment, and general power transmission applications. The set screw locking collar secures directly to the shaft without requiring a separate locking collar or adapter sleeve. The stamped steel housing keeps overall weight low at 0.68 pounds, which is advantageous in applications where bearing cluster weight affects frame design. It is installed by licensed mechanics, HVAC technicians, and equipment maintenance professionals as an OEM-style or replacement bearing unit.

Key Features

• 3/4 inch straight bore with set screw shaft locking for direct shaft engagement
• 52100 bearing steel ball insert for reliable radial load handling
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• Maximum rated speed of 4,000 RPM
• Stamped steel housing with two-bolt base mount pattern
• Compact 1-1/8 inch base-to-center height for low-profile installations

Compatibility

Designed as an OEM-style replacement pillow block bearing for two-bolt mounted shaft assemblies with a 3/4 inch shaft diameter and 3-3/8 inch center-to-center bolt hole spacing, consistent with the SSRPS 100 series standard mounting footprint.

Installation Notes

Installation should be performed by qualified mechanical or HVAC technicians. Shut down and lock out all power to the driven equipment before removing or installing bearing units. Align the bearing housing squarely with the shaft before tightening the set screw to avoid side loading the insert. Consult applicable ANSI and OSHA lockout/tagout procedures during service.
