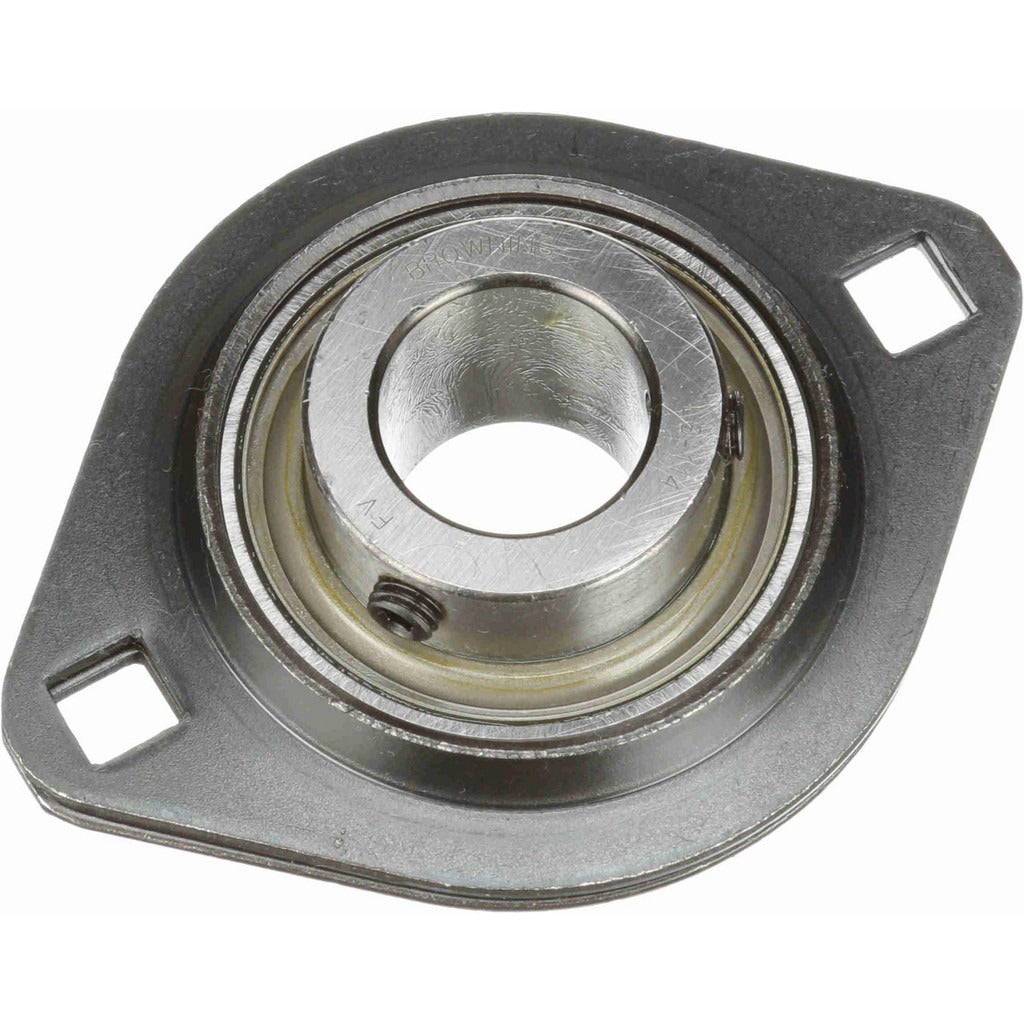

Browning 766782 2-bolt Flange Bearing 7/8 Inch Id

Product Description

The BROWNING 766782 is a 2-bolt flange bearing unit, model SSF2S-114, designed to support rotating shafts in light-to-medium duty industrial and mechanical drive applications. It accepts a 7/8 inch shaft and houses a ball bearing insert made from 52100 steel, secured by a set screw lock. The stamped steel housing keeps weight low at 0.9 pounds while delivering a static load capacity of 1,651 pounds and a dynamic load capacity of 2,801 pounds. Maximum operating speed is 3,500 RPM. Licensed trades and industrial maintenance technicians install this unit in conveyor systems, fan shafts, augers, and similar rotating equipment where a compact, bolt-down mount is required.

This bearing is suited for residential and light commercial mechanical equipment as well as general industrial machinery where a standard 2-bolt flange configuration is specified. The 7/8 inch bore and 3 inch center-to-center bolt spacing make it a direct fit for common shaft and frame configurations in the SSF2S 100 series. Typical applications include HVAC fan shaft support, agricultural equipment, and small conveyor or drive assemblies. Lubrication is required during installation and at regular service intervals.

Key Features

• 7/8 inch inside diameter accommodates standard shaft sizes common in light industrial and HVAC fan applications
• 52100 steel ball bearing insert with set screw lock for positive shaft retention
• Stamped steel housing — lightweight at 0.9 pounds with sufficient rigidity for load requirements
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• 3,500 RPM maximum speed rating
• 3 inch bolt hole center-to-center spacing with 5/16 inch bolt size for straightforward mounting

Compatibility

Designed as an OEM-style replacement or direct-install 2-bolt flange bearing for applications requiring a 7/8 inch bore, SSF2S 100 series fitment, with 3 inch mounting hole center-to-center spacing.

Installation Notes

Installation is performed by qualified mechanical or industrial maintenance technicians. De-energize and lock out all power to the shaft and drive system before handling. Align the bearing housing flush with the mounting surface before tightening 5/16 inch bolts, and verify shaft runout is within acceptable limits prior to final torque. Apply appropriate grease to the bearing insert at installation and follow a regular lubrication schedule in service.
