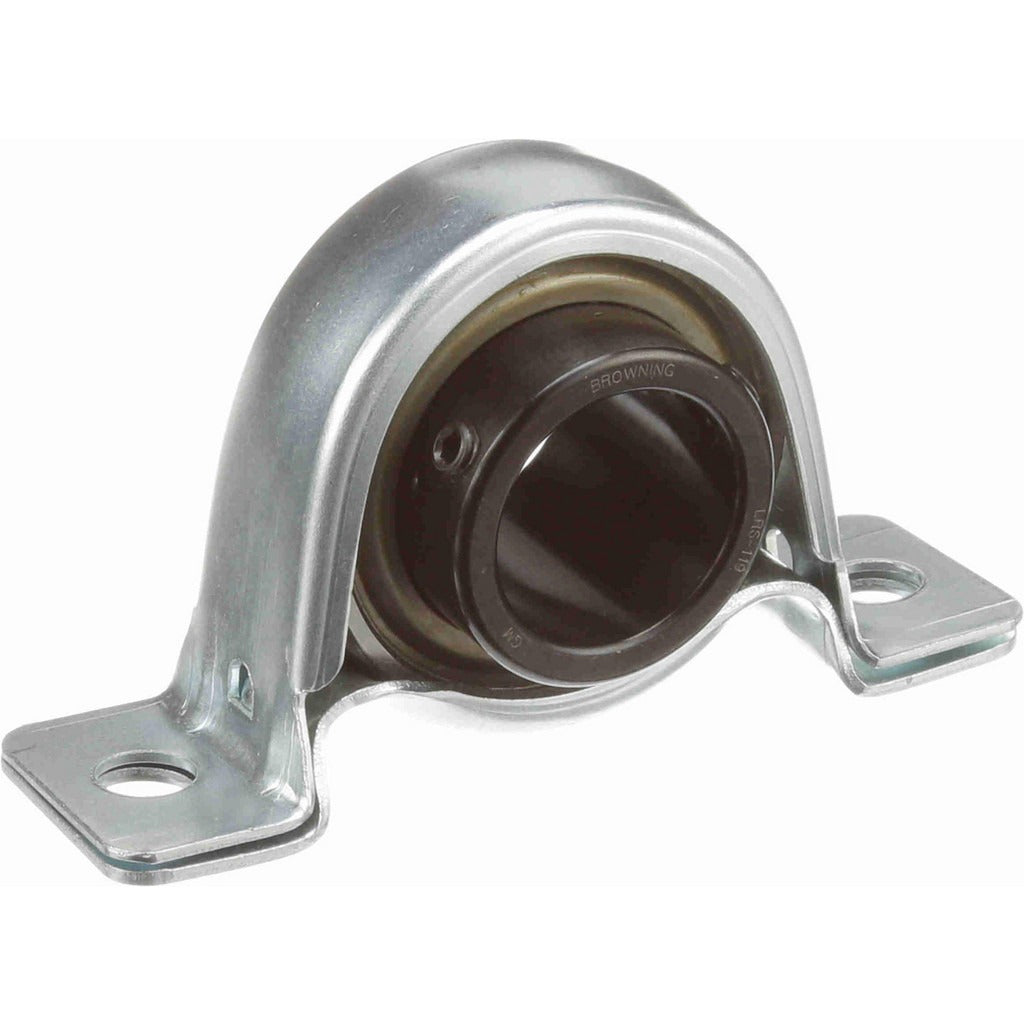

Browning 766240 Pillow Block Bearing 1-3/16 in Id Steel

Product Description

The BROWNING 766240 is a stamped steel pillow block bearing in the SSPS 100 series, designed for mounting rotating shafts in light- to medium-duty industrial and mechanical applications. The bearing features a 1-3/16 inch straight bore with a set screw locking mechanism and a 52100 bearing steel insert. It carries a static load capacity of 2,567 pounds and a dynamic load capacity of 4,381 pounds. The two-bolt mounting base spans 3-3/4 inches center-to-center, with an overall assembly height of 2-19/32 inches and a base-to-center height of 1-5/16 inches. Installation is handled by millwrights, maintenance mechanics, and equipment technicians across manufacturing, agricultural, and material handling environments.

This pillow block is suited for conveyor systems, fans, pumps, and other rotating shaft assemblies where a reliable, bolt-down bearing housing is required. The SSPS 100 series is commonly used in both new equipment builds and replacement service applications. The straight bore and set screw design allow straightforward shaft fitment without specialized tooling. Maximum rated speed is 3,000 RPM, making it appropriate for moderate-speed drive applications in light industrial settings.

Key Features

• 1-3/16 inch straight bore with set screw shaft lock for positive retention
• 52100 bearing steel insert for reliable load handling and wear resistance
• Stamped steel housing with two-bolt mounting configuration
• 3-3/4 inch center-to-center bolt spacing for consistent bolt pattern alignment
• 2,567 pound static load capacity and 4,381 pound dynamic load capacity
• Rated to 3,000 RPM for moderate-speed rotating shaft applications

Compatibility

Designed as an OEM-style replacement pillow block bearing for rotating shaft assemblies requiring a 1-3/16 inch bore, two-bolt mount, and 3-3/4 inch bolt hole center-to-center spacing in the SSPS 100 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. Lock out and tag out all energy sources before removing or installing bearing assemblies per LOTO procedures. Ensure the mounting surface is flat and the shaft is properly aligned before tightening set screws to avoid premature bearing wear. Do not use excessive force when seating the bearing onto the shaft; use appropriate shaft and housing tolerances as specified by the equipment manufacturer.
