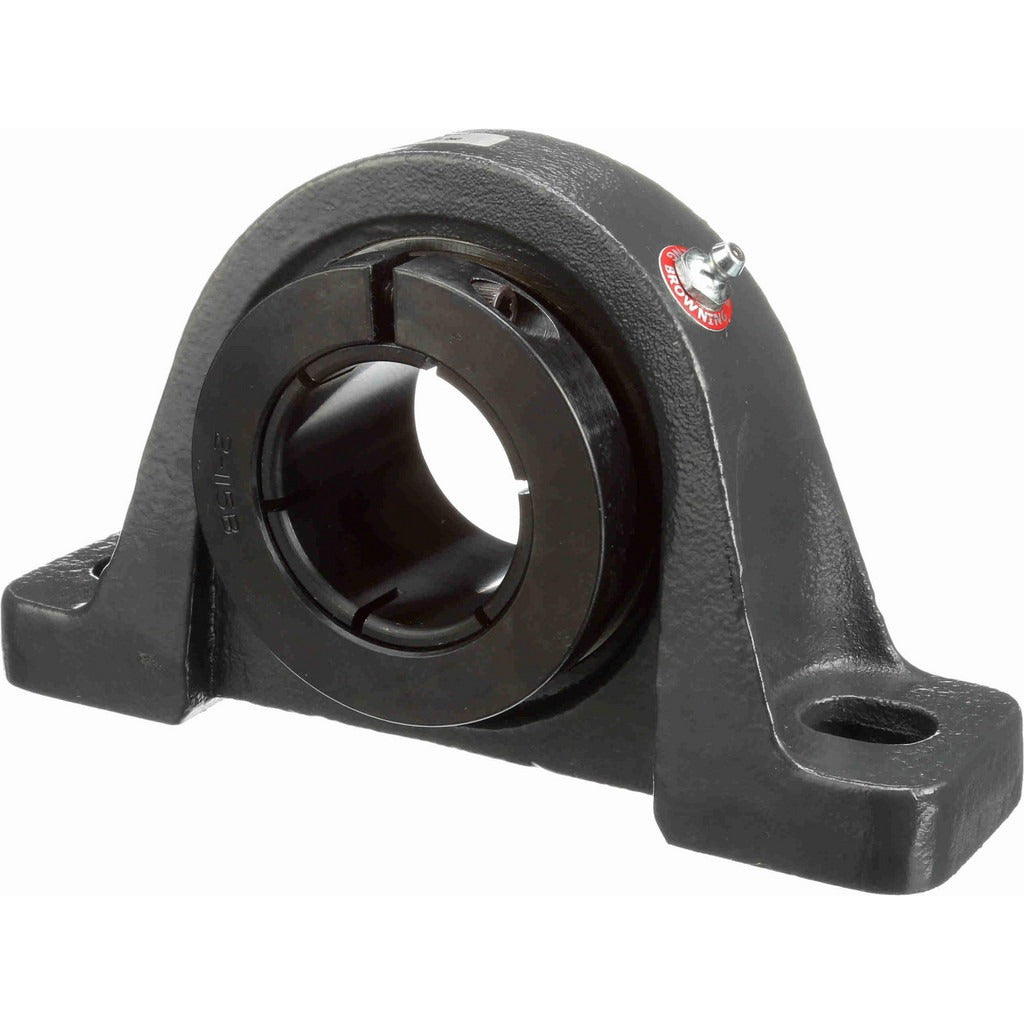

Browning 766196 Pillow Block Bearing 2-7/16 in Id

Product Description

The BROWNING 766196 is a two-bolt pillow block bearing designed for industrial shaft support applications. It houses a ball-type bearing insert made from 52100 bearing steel, secured via an eccentric lock collar. The bore is a straight 2.4375-inch (2-7/16 inch) inside diameter, rated for a static load capacity of 8,150 pounds and a dynamic load capacity of 11,789 pounds. The cast iron housing delivers rugged durability in demanding rotating-equipment environments. With a maximum rated speed of 2,500 RPM, this unit suits moderate- to high-load drive train applications typical in HVAC fan assemblies, conveyor systems, and industrial equipment.

The 766196 is a VPB 200 Series pillow block intended for shaft support in commercial and industrial settings. It is commonly installed by millwrights, HVAC mechanics, and industrial maintenance technicians wherever a rigid two-bolt mount is required. The mounting hole center-to-center distance of 7-13/32 inches (7.9375 inches) and a base-to-center height of 2-3/4 inches allow straightforward alignment on standard steel or fabricated bases. Overall length measures 9.5 inches and overall height measures 5.5625 inches (5-9/16 inches).

Key Features

• 2-7/16 inch straight bore with eccentric locking collar for positive shaft retention
• 52100 bearing steel insert for high load and wear resistance
• Cast iron housing for rigid, vibration-resistant mounting
• 8,150 lb static and 11,789 lb dynamic load ratings
• Rated to 2,500 RPM maximum shaft speed
• Two-bolt base mount with 7-13/32 inch center-to-center hole spacing

Compatibility

Designed as a VPB 200 Series OEM-style replacement pillow block for industrial and commercial rotating equipment requiring a 2-7/16 inch straight bore, two-bolt housing configuration.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. De-energize and lock out all equipment before mounting or removing bearing assemblies. Ensure the shaft and housing surfaces are clean and free of burrs before seating the insert. Torque mounting bolts evenly and verify shaft alignment before returning equipment to service.
