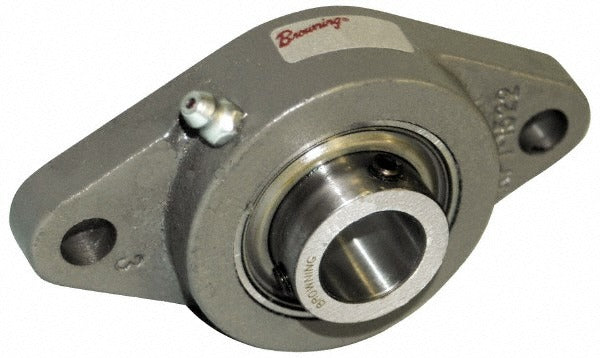

Browning 765005 2-bolt Flange Bearing 2-7/16 in Cast Iron

Product Description

The BROWNING 765005 is a 2-bolt flange bearing unit designed for industrial shaft support applications requiring a secure, low-profile mounting solution. Fitted with a 2-7/16 inch bore and a 52100 steel insert, this unit delivers a static load capacity of 8,150 pounds and a dynamic load capacity of 11,789 pounds. The set screw locking mechanism secures the shaft against axial movement. The cast iron housing provides durability in demanding environments. This bearing is installed by millwrights, maintenance technicians, and industrial mechanics working on conveyor systems, fans, pumps, and similar rotating equipment.

This 2-bolt flange bearing is suited for industrial and commercial applications where a flanged, two-bolt mounting pattern is required on flat surfaces. The 7-15/16 inch distance between mounting hole centers and 5/8 inch bolt size accommodate standard industrial mounting configurations. It is commonly used on conveyor drives, blower shafts, agricultural equipment, and light-to-medium duty power transmission assemblies. The unit accepts a 2-7/16 inch shaft diameter and is packaged as a single unit.

Key Features

• 2-7/16 inch bore with set screw lock for positive shaft retention
• Static load capacity of 8,150 pounds and dynamic load capacity of 11,789 pounds
• 52100 steel bearing insert for wear resistance under radial and axial loads
• Cast iron housing for rigidity and corrosion resistance in industrial environments
• 2-bolt flange mounting pattern with 5/8 inch bolt size and 7-15/16 inch hole center spacing
• Overall length of 9.25 inches and overall height of 5-7/16 inches for standard fitment

Compatibility

Designed as an OEM-style replacement or direct-fit 2-bolt flange bearing for industrial shaft applications requiring a 2-7/16 inch bore and a 2-bolt cast iron housing.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to the connected drive before removing or installing the bearing. Ensure the mounting surface is flat and clean before torquing the mounting bolts, and verify shaft alignment before tightening set screws. Consult applicable ANSI and OSHA lockout/tagout procedures throughout the installation process.
