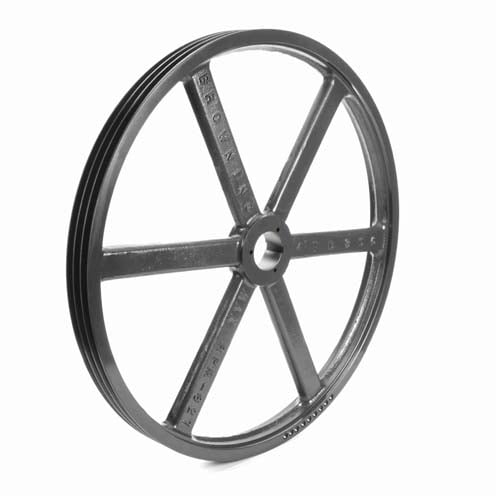

Browning 3TB300 1003128 Multiple Sheaves

Product Description

The Browning 3TB300 is a reliable multiple sheave designed for effective power transmission. Built with a robust cast iron material, it incorporates the Browning Split Taper Bushing for a secure fit. This sheave is ideal for use with A and B belts, accommodating various pitch diameters.

• Incorporates Browning Split Taper Bushing for true Key-to-Key drive
• Allows for both A and B belt operation
• Made with close grain cast iron for precise machining

Product Highlights

This sheave ensures optimal performance in mechanical systems.

Product Information

Standard Information

• Brand: Browning
• Part Number: 3TB300

Technical Specifications

• Bushing Used: Q1
• Belt Section: A, B
• Bushing Type: Split Taper
• Overall Length: 3.171875 inches
• Pulley Material: Cast Iron
• Bushing Series: Q1
• Datum Diameter (A): 29.6 inches
• Number of Grooves: 3
• Bore (Min): 0.75 inches
• Outside Diameter: 30.28 inches
• Pitch Diameter (A): 29.8 inches
• Pitch Diameter (B): 30.3 inches
• Material: Cast Iron
• Weight: 78.5 LB
• EAN or UPC: 662289222650
