Browning 3TB110 Split Taper Sheave Cast Iron 3 Groove A or B Belt 11.35 Inches Diameter Uses Q1 Bushing

Product Description

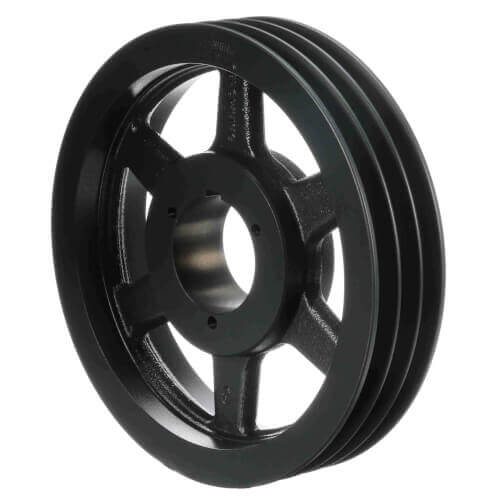

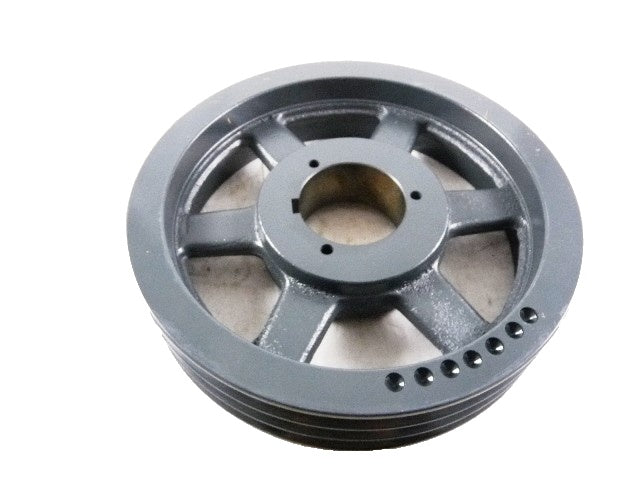

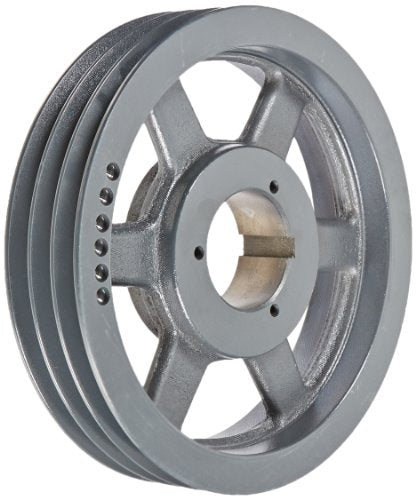

Browning 3TB110 is a robust split taper sheave made from high-quality cast iron, designed for versatility and durability in various mechanical and industrial setups. This sheave is compatible with A or B section belts and requires a Q1 bushing for installation, which is sold separately.

• Constructed from close grain cast iron ensuring enhanced durability and precision.
• Features a unique split taper bushing system, securing a reliable connection to both the shaft and the hub.
• Offers flexibility through its combination grooves, allowing for the use of multiple belt sizes which can cater to a variety of pitch diameters and horsepower requirements.

Product Highlights

The Browning 3TB110 sheave is engineered to allow machined tolerances as accurate as possible, making it ideal for precise mechanical operations. Its solid design and adaptable configuration make it a preferred choice in fields requiring reliable power transmission components.

Product Information

Standard Information

• Brand: Browning
• MPN: 3TB110
• Material: Cast Iron
• Number of Grooves: 3

Technical Specifications

• Compatible Belt Type: A, B
• Bushing Required: Q1 (not included)
• Outside Diameter: 11.35 inches
• Item Dimensions (LxWxH): 8.01 x 8.01 x 8.01 inches
• Package Dimensions: 12.20 x 11.99 x 4.20 inches
• Total Weight: 23.81 lbs
