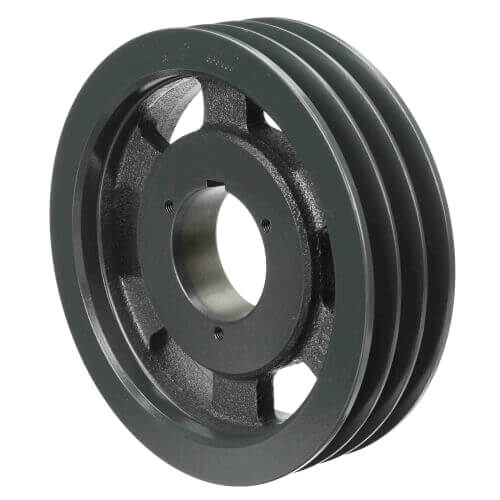

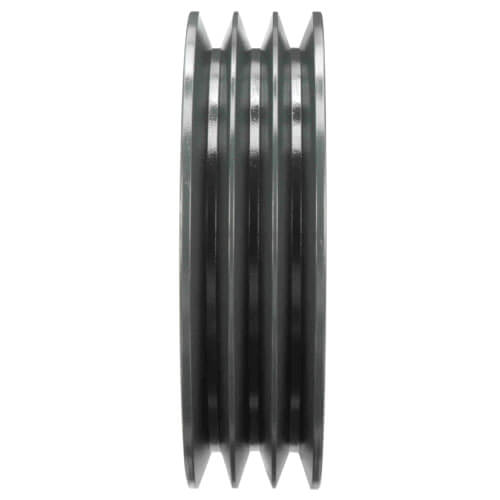

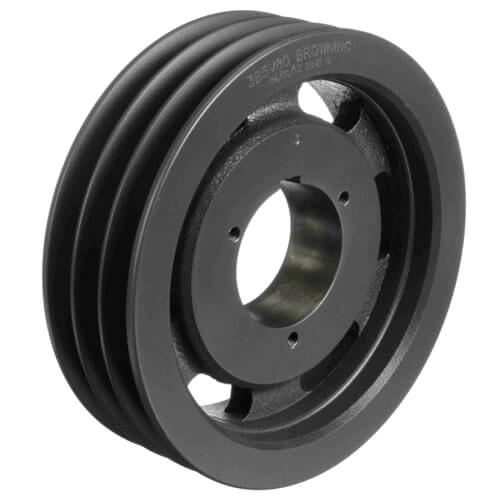

Browning 3B5V86 3694312 Multiple Sheaves

Product Description

The Browning 3B5V86 is a reliable multiple sheave designed for various industrial applications. This product is suitable for fans, blowers, conveyors, pumps, mixers, crushers, and other conveying equipment. It features a design that supports A, 4L, B, 5L, and 5V belts, making it versatile and functional in multiple configurations.

• Combination groove design accommodates a variety of belts.
• Available in configurations covering 5 to 125 horsepower.
• Incorporates a unique split taper bushing system.

Product Highlights

The Browning 3B5V86 provides efficient power transfer in a compact and durable package with a new casting design based on advanced engineering methodologies.

Product Information

Standard Information

• Brand: Browning
• MPN: 3B5V86

Technical Specifications

• Outside Diameter: 8.88 inches
• Bushing Type: Split Taper
• Belt Size: A, B, 5V
• Number of Grooves: 3
• Weight: 14.74 pounds
• Material: Cast Iron
• Pitch Diameter: 8.4 inches (A), 8.9 inches (B), 8.7 inches (5V)
• Bore (Min): 0.5 inches
