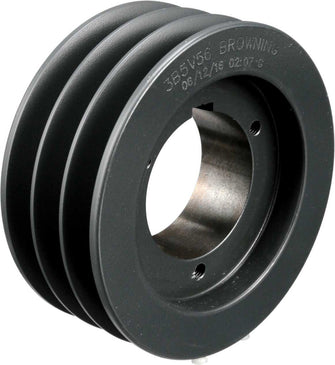

Browning 3B5V54 Sheave

Product Description

The Browning 3B5V54 sheave is designed for use with A, 4L, B, 5L, and 5V belts. This versatile sheave provides various pitch diameters and supports a wide range of horsepower ratings, making it suitable for many applications. The product is crafted using advanced design techniques including CAD and Finite Elements Analysis.

• Combination groove for multiple belt types
• Compatible with drives from five to 125 horsepower
• Features Browning split taper bushing

Product Highlights

The Browning 3B5V54 sheave is effective for different drive systems, ensuring compatibility with various belts and providing reliable performance in demanding situations.

Product Information

Standard Information

• Brand: Browning
• MPN: 3B5V54

Technical Specifications

• Belt Section Size: 5V, A, B
• Bore Type: Split taper bushed
• Bushing Series: B
• Keyway Size: 0.5000 inches
• Material: Cast iron
• Bushing Bore Range: 0.500 to 2.438 inches
• Datum Diameter: 5.0000 inches (A), 5.4000 inches (B)
• Pitch Diameter: 5.5000 inches (5V), 5.2000 inches (A), 5.7000 inches (B)
• Overall Width: 2.8438 inches
• Pulley Construction: Plain
• Number of Grooves: 3
• O.D.: 5.68 inches
• Height: 2.5 inches
• Length: 6.06 inches
• Width: 6.06 inches
• UPC Code: 662289035052
