Browning 3B5V136 3 Groove Cast Iron Split Taper Sheave A B or 5V Belt

Product Description

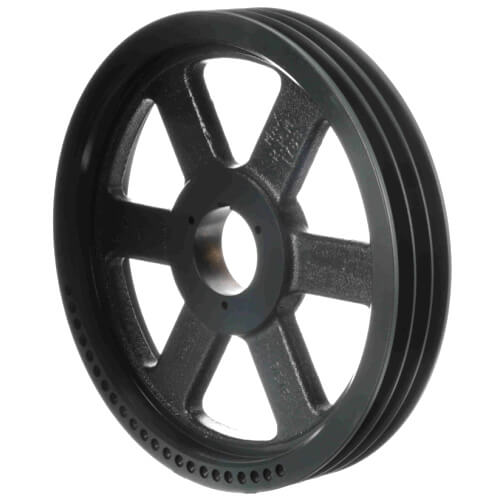

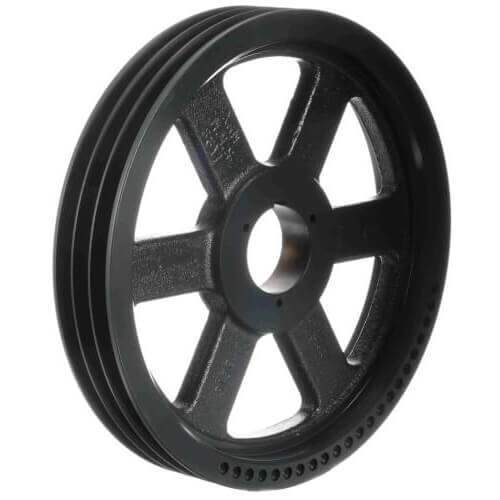

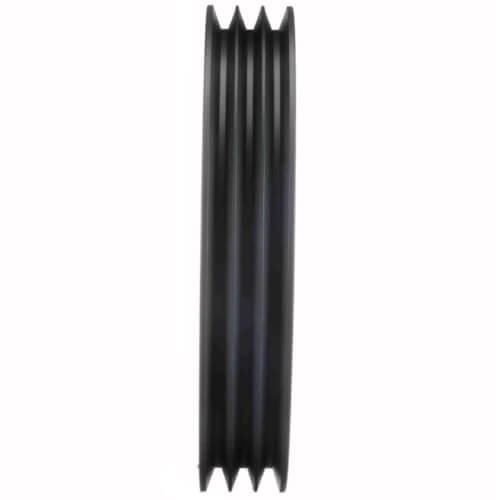

The Browning 3B5V136 is a cast iron split taper sheave with three grooves, designed for A, B, or 5V belts. It works with a B bushing and includes a combination groove for flexibility with different pitch diameters and horsepower ratings. The close grain cast iron allows for precision during machining.

• Outside diameter measures thirteen point eight eight inches.
• Constructed from durable cast iron.
• Compatible with Browning Split Taper Bushing for true key-to-key drive.

Product Highlights

This sheave is ideal for various power transmission tasks, supporting A, B, and 5V belts to meet diverse application needs.

Product Information

Standard Information

• Product Type: Split Taper Sheave
• Belt Type: A, B, 5V

Technical Specifications

• Grooves: 3
• Bore (Min): 0.50 inches
• Bore (Max): 2.4375 inches
• Outside Diameter: 13.88 inches
• Material: Cast Iron
• Bushing Used: B
• Bore Type: Split Taper Bushed
• Keyway Size: 0.5000 inches
• Bushing Bore Range: 0.500 - 2.438 inches
• Datum Diameter: 13.2000 inches (A), 13.6000 inches (B)
• Pitch Diameter: 13.7000 inches (5V), 13.4000 inches (A), 13.9000 inches (B)
• Overall Width: 2.8438 inches
• Pulley Construction: Spoked
• Manufacturer Catalog Number: 3B5V136
• Manufacturer UPC Number: 662289034772
• Pulley Type: Fixed Pitch
• Bushing Type: B
