Browning 3B154SK V-Belt Pulleys - A, B Belt Section, 3 Groove, 15.2000 in (A) 15.7000 in (B) Pitch Dia.

Product Description

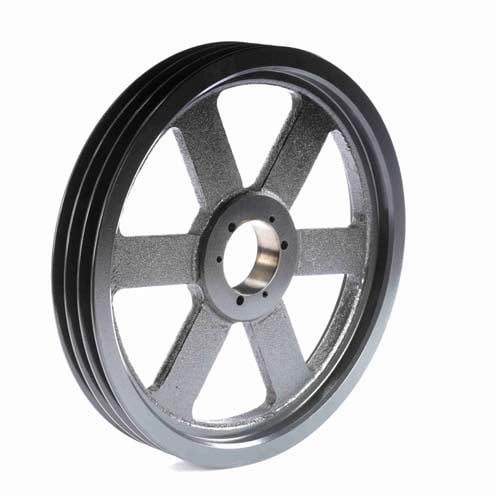

The Browning 3B154SK is a v-belt pulley designed for both A and B belt sections. It features three grooves and a pitch diameter of fifteen point two inches for section A and fifteen point seven inches for section B. With an outside diameter of fifteen point six eight inches, this pulley is built using cast iron, ensuring durability and effective power transmission.

• Combination groove for use with both A and B belts.
• Constructed from close grain cast iron.
• QD bushed for easy mounting.

Product Highlights

The Browning 3B154SK is ideal for mechanical power transmission applications where multiple belt types are needed, providing flexibility in drive design.

Product Information

Standard Information

• Brand: Browning
• Country of Origin: Mexico

Technical Specifications

• Weight: 34.10 lbs
• Material: Cast Iron
• Bore Type: QD Bushed
• Bushing Series: SK
• Pitch Diameter: 15.2000 in (A), 15.7000 in (B)
• Outside Diameter: 15.6800 in
• Number of Grooves: 3
• Bushing Bore Range: 0.438 - 2.625 in
