Browning 3695210 Qd Bushed V Belt Sheave 1 Groove

Product Description

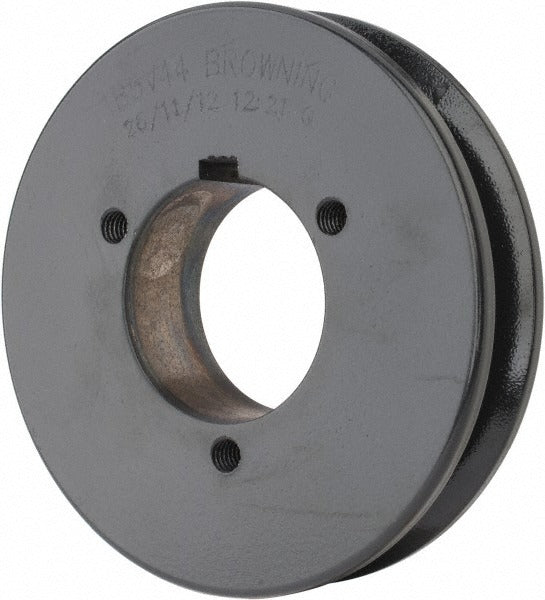

The BROWNING 3695210 is a single-groove, quick-detachable (QD) bushed V belt sheave designed for use in belt-driven power transmission applications. It accepts a P1-style QD bushing and accommodates bore diameters ranging from 0.5 inches to 2.4375 inches, making it adaptable to a wide range of shaft sizes. The outside diameter measures 4.68 inches, with a belt pitch A diameter of 4.0 inches, a belt pitch B diameter of 4.4 inches, and a belt pitch 5V diameter of 4.5 inches. Licensed HVAC and mechanical contractors, industrial maintenance technicians, and trade professionals install this sheave on fan, blower, and pump drive assemblies where a single-groove V belt drive is specified.

This sheave is suited for residential and light commercial applications including air handling units, belt-drive blowers, condenser fan assemblies, and pump systems. The QD bushing design allows the sheave to be mounted and removed without special pullers, streamlining maintenance and belt replacement in the field. Where sheave pitch diameter adjustment is needed to fine-tune drive speed or airflow, the range of compatible bore sizes gives technicians flexibility across common shaft configurations.

Key Features

• Single-groove design for straightforward single-belt drive configurations
• P1-style QD bushing style for tool-efficient mounting and removal
• Bore diameter range of 0.5 inches to 2.4375 inches fits a wide variety of shaft sizes
• Outside diameter of 4.68 inches with belt pitch A diameter of 4.0 inches and belt pitch B diameter of 4.4 inches
• Belt pitch 5V diameter of 4.5 inches supports 5V belt cross-section applications
• UNSPSC Code 31171804 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement or direct-fit sheave for single-groove V belt drive systems using P1-style QD bushings, accommodating A, B, and 5V belt cross-sections.

Installation Notes

Installation is performed by a qualified mechanical or HVAC technician. Disconnect and lock out all power to the drive system before removing or installing the sheave. The P1 QD bushing must be sourced and installed separately per the bushing manufacturer specifications. Verify belt tension and sheave alignment after installation to prevent premature belt and bearing wear.
