Browning 3694585 4 Groove Qd Bushed V Belt Sheave

Product Description

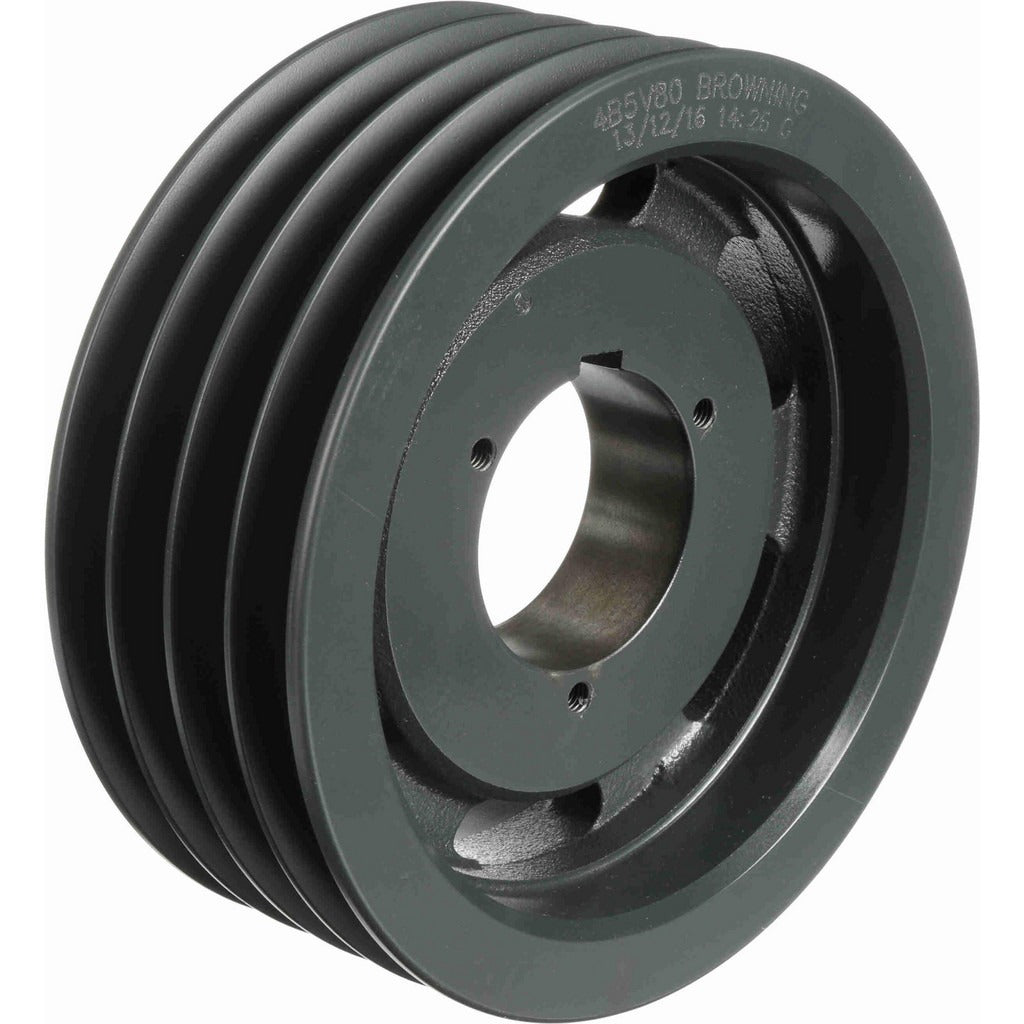

The BROWNING 3694585 is a four-groove, Quick Detachable (QD) bushed V belt sheave designed for industrial belt drive systems. It accepts 5V, A, and B cross-section belts and features an 8.28-inch outside diameter with a belt pitch diameter of 8.1 inches for 5V belts. The bore range spans 0.625 inches to 2.25 inches, accommodating a B-style QD bushing for secure, precise shaft mounting. Cast iron construction provides the rigidity and durability required in demanding HVAC, fan, blower, and pump drive applications. HVAC and mechanical contractors rely on this sheave as a direct replacement or new-installation component in belt-driven equipment.

This sheave is suited for commercial and industrial belt drive systems where multi-groove 5V, A, or B section belts are used. Common applications include air handling unit fan drives, blower assemblies, pump drives, and compressor belt trains. The QD bushing mount style simplifies field installation and removal, making it practical for service technicians who need to swap pulleys on belt-driven HVAC equipment or industrial machinery without specialized tooling beyond standard hand tools.

Key Features

• Four grooves accommodate 5V, A, and B cross-section V belts
• 8.28-inch outside diameter with 8.1-inch belt pitch diameter for 5V belts
• Bore range from 0.625 inches to 2.25 inches for flexible shaft fitment
• B-style QD bushing mount for tool-accessible installation and removal
• Cast iron construction for rigidity in high-load belt drive service
• Single-piece package quantity with a minimum order of one unit

Compatibility

Compatible with 5V, A, and B cross-section V belts. Accepts B-style QD bushings within the 0.625-inch to 2.25-inch bore range. Designed as a replacement or new-installation sheave for multi-groove belt drive systems in HVAC, fan, blower, and pump applications.

Installation Notes

Installation should be performed by a qualified millwright, HVAC mechanic, or industrial technician. Disconnect and lock out all power to the drive system before removing or installing any sheave or bushing. Verify belt cross-section and sheave groove profile match before assembly. Torque QD bushing fasteners per the bushing manufacturer specifications and confirm belt tension with a tension gauge after installation.
