Browning 3694346 3-groove Qd Bushed V-belt Sheave 11.28 in

Product Description

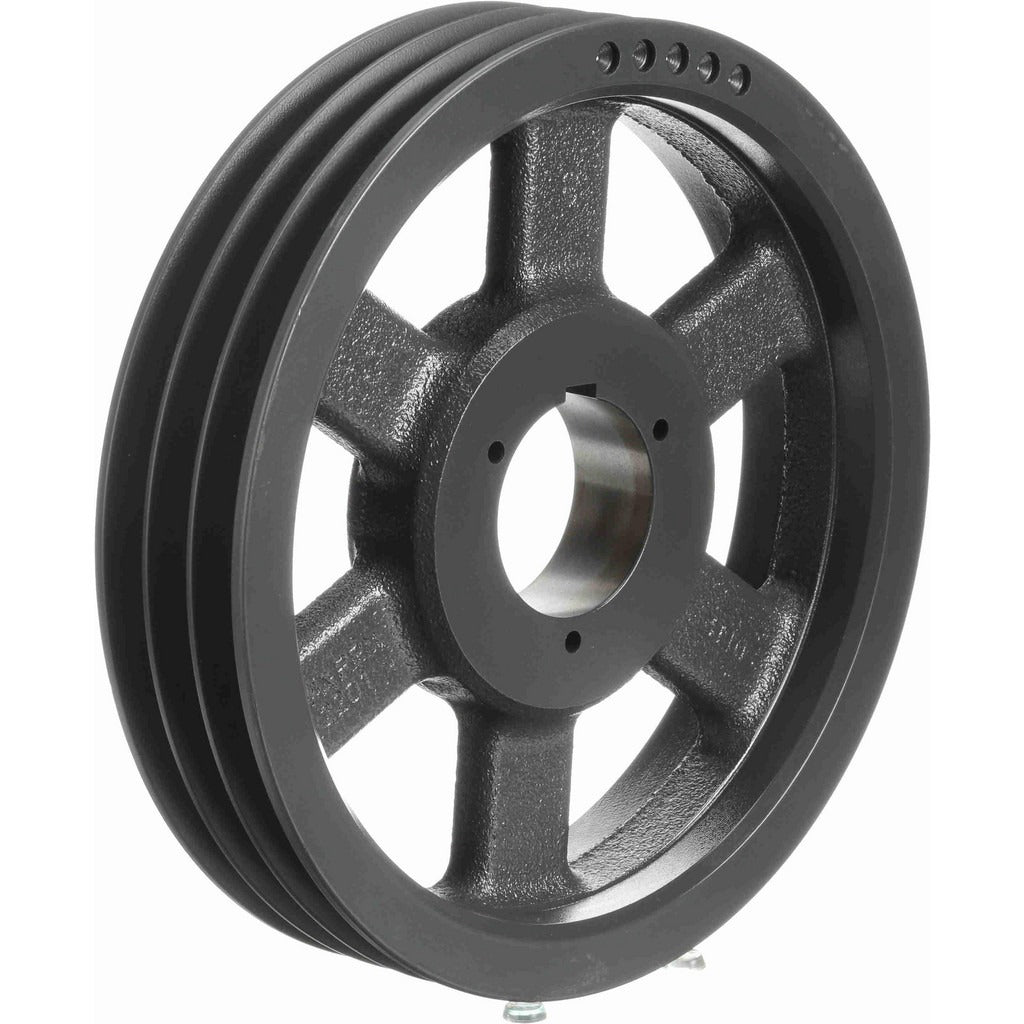

The BROWNING 3694346 is a three-groove, Quick Detachable (QD) bushed V-belt sheave designed for use with 5V, A, and B cross-section belts. The sheave measures 11.28 inches in outside diameter with a belt pitch diameter of 11.1 inches for 5V belts. It accepts bore diameters from 5/8 inch to 2-1/4 inches using a B-style QD bushing, which is sold separately. Cast iron construction provides the mass and rigidity required for reliable power transmission in HVAC, industrial fan, and blower drive applications. Licensed HVAC technicians and mechanical contractors typically install this component as part of a belt-drive blower or fan assembly.

This sheave is suited for residential and light commercial HVAC air-handling units, cooling tower fans, industrial blowers, and other rotating equipment that uses multi-groove V-belt drives. The three-groove configuration allows for higher torque transmission compared to single-groove designs, making it appropriate for larger fan systems where load must be distributed across multiple belts. Compatible belt trade sizes include 5V, A, and B section belts. No specific model or unit compatibility beyond belt cross-section was provided in the product data.

Key Features

• Three grooves accommodate 5V, A, and B cross-section V-belts
• 11.28 inch outside diameter with 11.1 inch belt pitch diameter for 5V belts
• Bore range from 5/8 inch to 2-1/4 inch via B-style QD bushing
• Quick Detachable bushing mount allows straightforward removal and reinstallation without specialty pullers
• Cast iron construction for durability and balanced mass in continuous-duty drive applications

Compatibility

Designed for use with 5V, A, and B cross-section V-belts. Requires a separately purchased B-style QD bushing to complete the shaft mount. Suitable as an OEM-style replacement or upgrade sheave in multi-groove belt-drive fan and blower systems within the stated bore and belt-section range.

Installation Notes
