Browning 3694064 Qd Bushed V Belt Sheave 2 Groove

Product Description

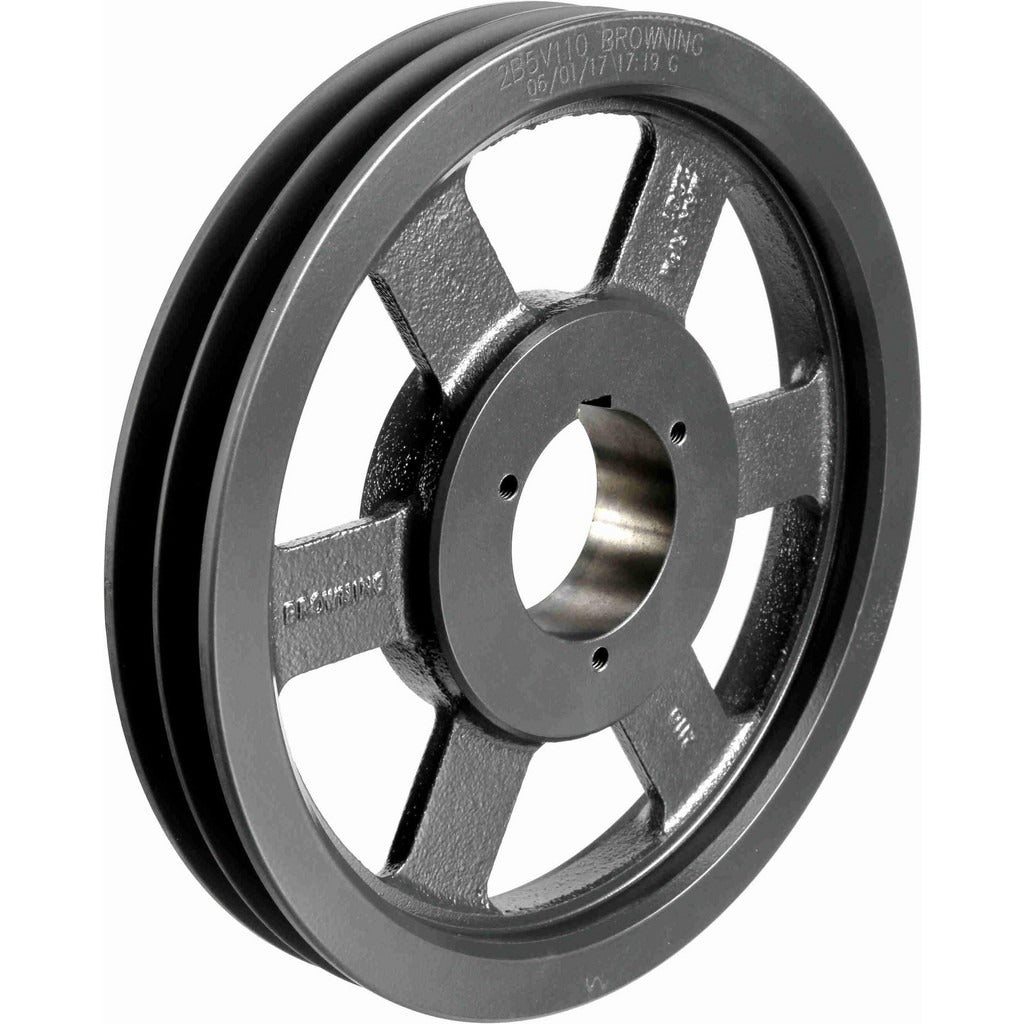

The BROWNING 3694064 is a two-groove, QD bushed V-belt sheave designed for use in belt-drive power transmission systems found in HVAC equipment, industrial fans, blowers, and related mechanical applications. The sheave accepts 5V, A, and B belt trade sizes and features an 11.28-inch outside diameter with a belt pitch diameter of 11.1 inches for 5V belts, 10.6 inches for A belts, and 11.0 inches for B belts. It accepts a B-style QD bushing and accommodates bore diameters ranging from 5/8 inch to 2-1/4 inches. At 15.9 pounds, this is a solid cast-iron component built for demanding drive service.

This sheave is commonly installed in rooftop units, air handlers, centrifugal fans, and industrial blowers where two-groove V-belt drive configurations are required. The QD bushing design allows for quick installation and removal without specialized tooling, making it a practical choice for service technicians and mechanical contractors working on both new installations and drive replacements. It is suited for residential and commercial HVAC applications as well as light industrial belt-drive setups.

Key Features

• Two-groove design accommodates 5V, A, and B belt trade sizes
• QD bushed mount with B-style bushing for tool-friendly installation and removal
• 11.28-inch outside diameter with 11.1-inch 5V belt pitch diameter
• Bore range of 5/8 inch to 2-1/4 inch for flexible shaft fitment
• Cast-iron construction for durability in continuous belt-drive service

Compatibility

Designed as an OEM-style replacement or upgrade sheave for two-groove V-belt drive systems using 5V, A, or B belt trade sizes with a B-style QD bushing mount.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the drive system before removing or installing any sheave or bushing components. Ensure the QD bushing is properly seated and fasteners are tightened evenly before tensioning the belts. Verify belt alignment and tension after installation to prevent premature wear.
