Browning 3693769 Qd Bushed V Belt Sheave 1 Groove

Product Description

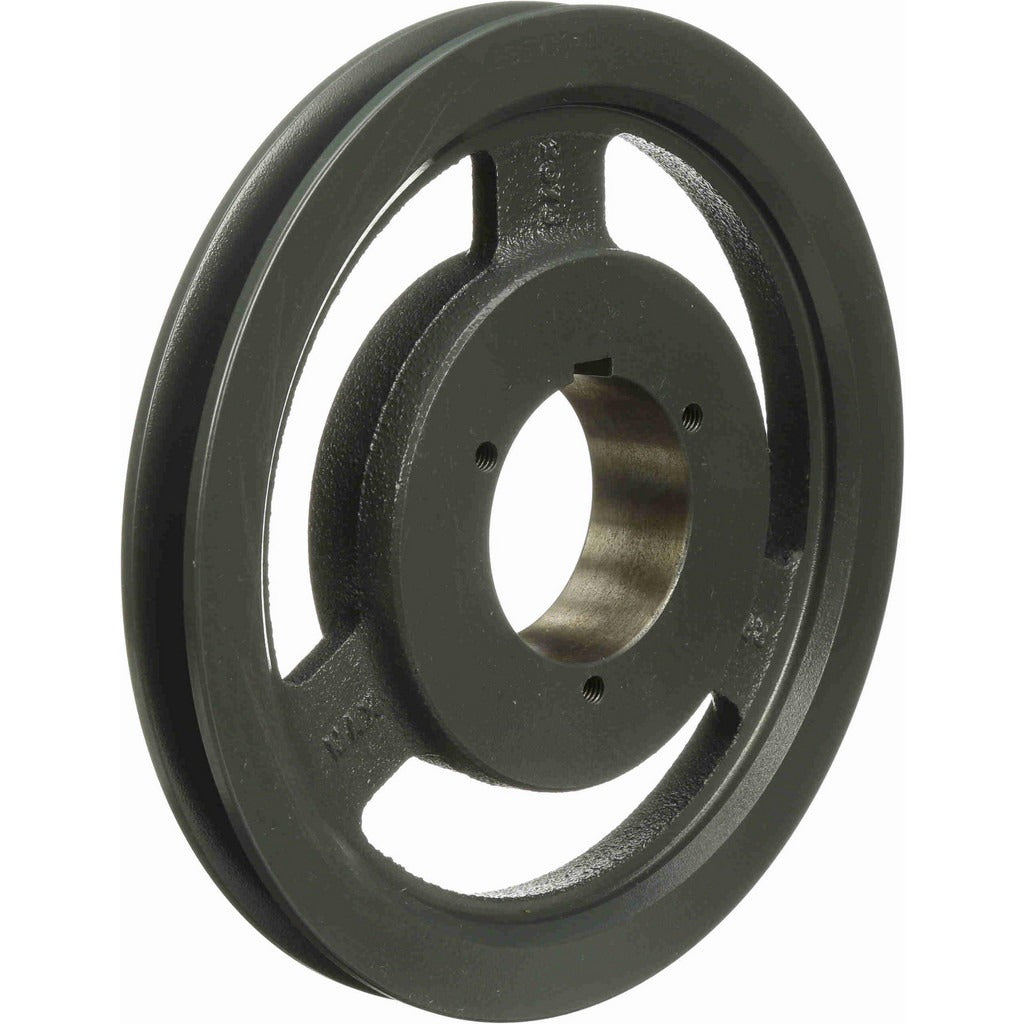

The BROWNING 3693769 is a single-groove, quick-detachable (QD) bushed V belt sheave designed for use in belt-driven mechanical systems found in HVAC, industrial fan, pump, and blower applications. Machined from iron, this sheave accepts B-style QD bushings and accommodates bore diameters ranging from 5/8 inch to 2-1/4 inch. The outside diameter measures 9.28 inches, with a belt pitch diameter of 9.1 inches for 5V belts. It is installed by HVAC technicians and mechanical contractors performing drive component replacements or new drive system builds.

This sheave is suited for single-belt drive configurations using 5V, A, or B section V belts. It is a common choice for residential and light commercial HVAC blower assemblies, cooling tower fan drives, and pump drive systems where a QD-style bushing mount is required for easy installation and removal. The B-style bushing bore range allows fitment across a wide variety of shaft sizes encountered in the field.

Key Features

• Single groove design for 5V, A, and B section V belts
• Outside diameter of 9.28 inches with a 9.1-inch belt pitch diameter for 5V belts
• Bore range from 5/8 inch to 2-1/4 inch via B-style QD bushing
• Iron construction for durability in belt drive applications
• QD bushed design allows fast installation and removal without special pullers

Compatibility

Compatible with 5V, A, and B section V belts. Accepts B-style QD bushings to fit shaft diameters from 5/8 inch to 2-1/4 inch. Designed as an OEM-style replacement or new-installation sheave for single-belt drive systems in HVAC and mechanical equipment.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out power to the drive system before beginning any sheave or belt work. Mount the B-style QD bushing to the sheave and position on the shaft before tightening bushing fasteners to manufacturer specifications. Verify belt alignment and tension after installation before returning the system to service.
