Browning 3693728 Qd Bushed V Belt Sheave 1 Groove

Product Description

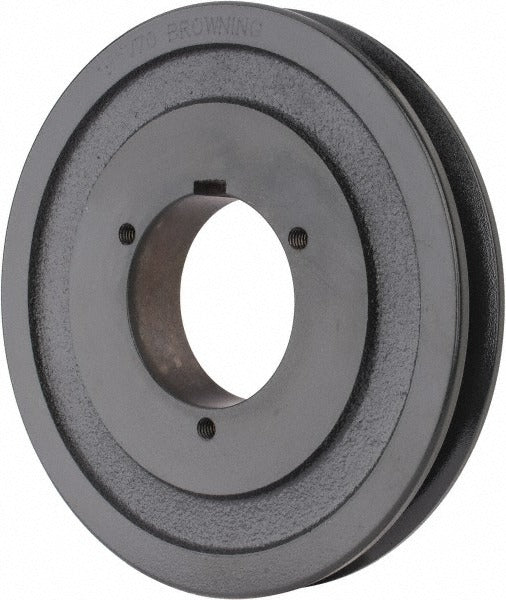

The BROWNING 3693728 is a single-groove, QD bushed V belt sheave designed for power transmission applications in HVAC, industrial, and mechanical systems. It accepts a quick-detach (QD) style B bushing, allowing fast installation and removal without special tooling. The outside diameter measures 7.28 inches, with a belt pitch diameter of 7.1 inches for 5V belt sections. The bore range spans 5/8 inch to 2-1/4 inch, accommodating a wide variety of shaft sizes. At 7.05 pounds, this cast sheave is a durable, field-proven component used by HVAC technicians and millwrights on blower and fan drive assemblies.

This sheave is suited for single V belt drive configurations in commercial and residential HVAC air handling units, industrial blowers, pumps, and fan systems. The QD bushing system simplifies alignment and re-use during maintenance or drive ratio changes. It is compatible with 5V, A, and B belt sections based on the stated pitch diameters. Installation is performed by licensed HVAC technicians or qualified mechanical contractors wherever belt-driven blower assemblies are serviced or commissioned.

Key Features

• Single groove design for straightforward single-belt drive configurations
• QD bushed style B mount for tool-friendly installation and removal
• Outside diameter of 7.28 inches with a 5V belt pitch diameter of 7.1 inches
• Bore range of 5/8 inch to 2-1/4 inch fits a broad range of shaft diameters
• Compatible with A, B, and 5V belt sections per stated pitch diameter data
• Weighs 7.05 pounds for a solid, low-vibration drive assembly

Compatibility

Designed as an OEM-style replacement or new-installation sheave for single-groove belt drive systems requiring a QD style B bushing and a 7.28-inch outside diameter with 5V, A, or B belt section compatibility.

Installation Notes

Power down and lock out the drive system before removing or installing any sheave. A licensed HVAC technician or qualified mechanical contractor should perform this work. Verify shaft diameter falls within the 5/8 inch to 2-1/4 inch bore range before ordering the appropriate QD bushing. After installation, check belt tension and sheave alignment with a straightedge before returning the system to service.
