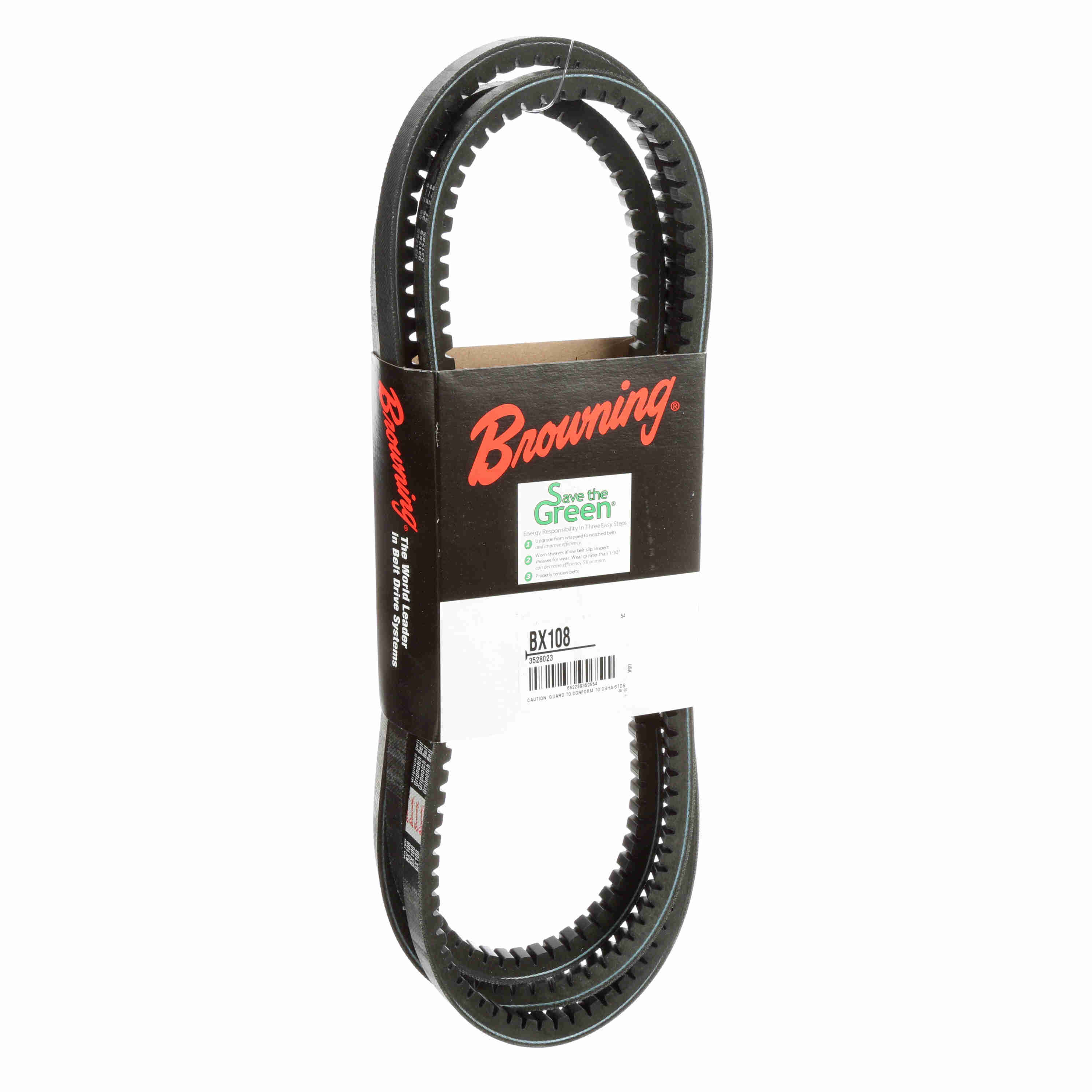

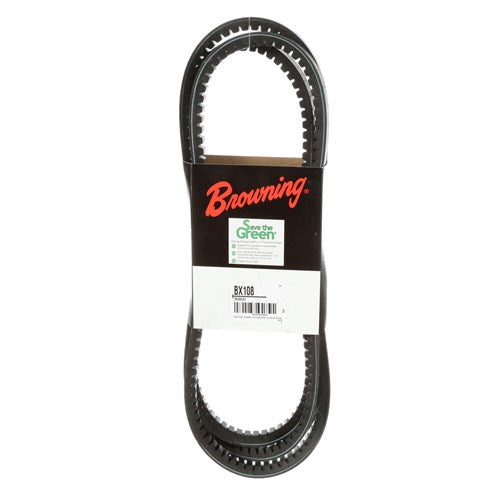

Browning 3528023 BX108 gripnotch belt BX belt section 109.8 pitch length

Product Description

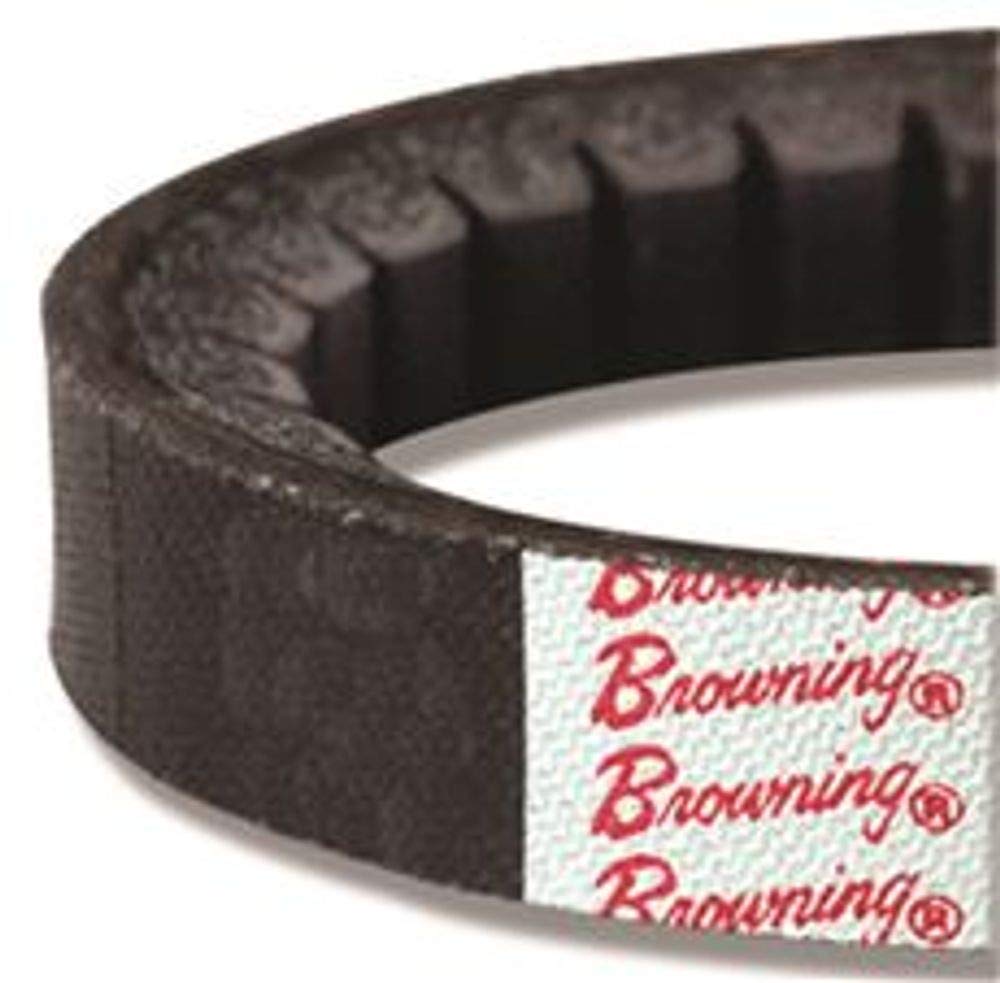

The Browning 3528023 BX108 Gripnotch Belt is a cogged V-belt designed for power transmission applications. It features a raw edge construction, resisting heat and oil, and is static conducting. This belt is suitable for fans, blowers, ventilation units, agricultural blower units, pumps, conveyors, and mixers. It has an outside length of 111 inches, a top width of 21/32 inches, and a pitch length of 109.8 inches.

• Ground form sidewalls reduce vibration and increase belt and bearing life.
• Raw edge sidewalls provide a uniform, anti-slip surface with greater flexibility.
• Wider notch spacing increases rigidity and stability while reducing stress on the cord line.

Product Highlights

Browning 3528023 BX108 Gripnotch Belt offers efficient power transmission with a durable EPDM construction, resisting oil and heat, and operating across a wide temperature range.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 3528023
• Country of Origin: USA

Technical Specifications

• MPN: 3528023
• Brand: Browning
• Manufacturer: Regal
• Category: V-Belts
• Belt Section Size: BX
• Thickness: 7/16 in
• Belt Type: Gripnotch Cogged V-Belt
• Top Width: 21/32 in
• UPC: 662289359554
• Product Type: V-Belt
• Pitch Length: 109.8 in
• Construction: Raw Edge
• Material: EPDM
• Outside Length: 111 in
• Resistance: Heat, Oil
• Temperature Rating: -60 to 250 deg F
• Item Number: BRNBX108
• Model: BX108
• Number of Bands: 1
• Number of Ribs: 1
• Outer Material: Rubber
• Reinforced Material: Nylon
• System of Measurement: Imperial
• Tensile Material: Polyester
• Design: Notched
• ID: BR100-1S9-1049
