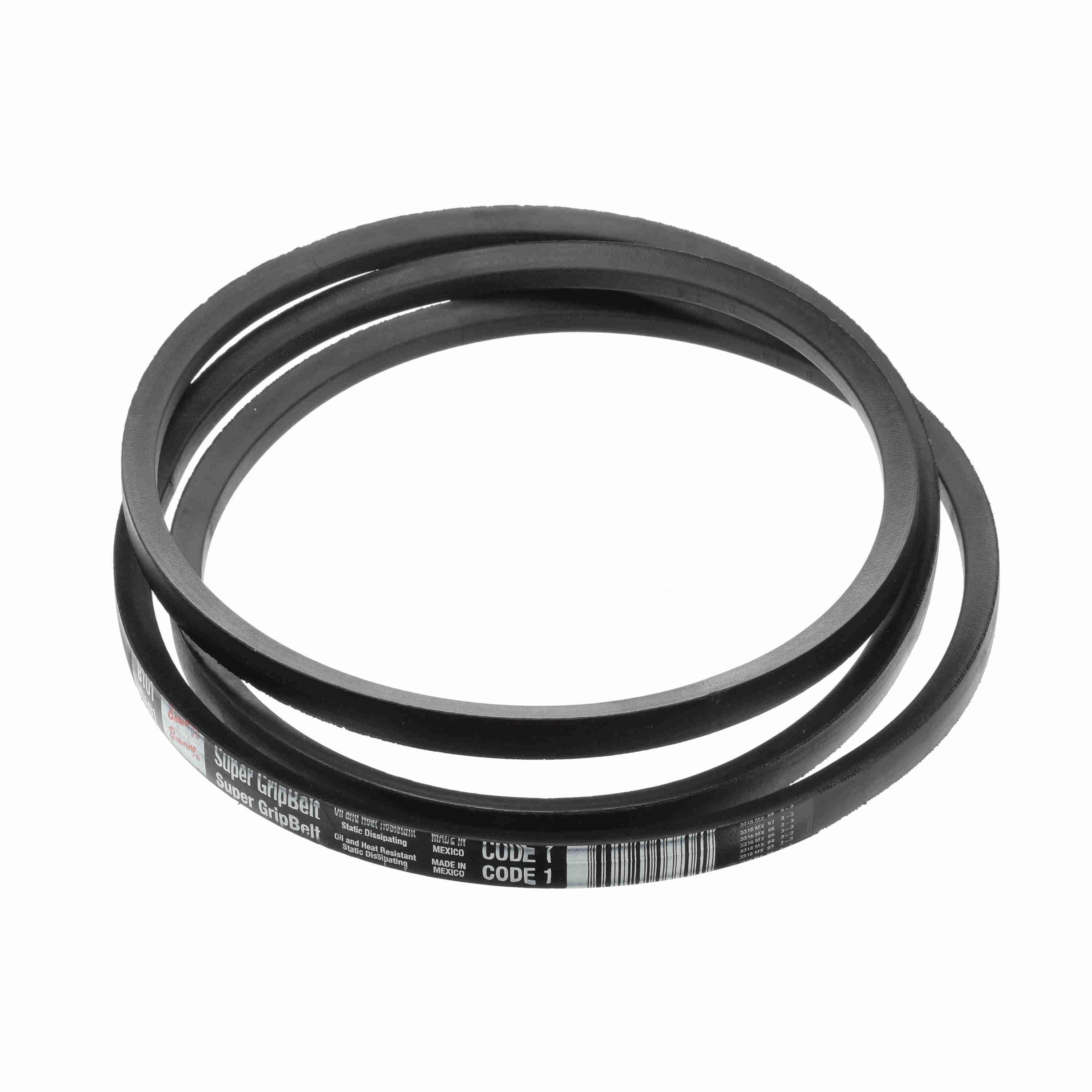

Browning 3433059 B101 Gripbelt 104 in (B section) B101

Product Description

The Browning 3433059 is a B101 Super Gripbelt V-belt with a 104-inch outside length that provides flexible power transmission for industrial drives. The belt features a single fabric design and high-strength synthetic fiber cords embedded in a neoprene compound to carry horsepower loads and reduce stretching. It has a B-section cross section with a 21/32-inch top width and 7/16-inch thickness, and is used in fans, blowers, pumps, conveyors, mixers, and ventilation units.

• Single-fabric Super Gripbelt design increases flexibility and allows use with sub-min pitch diameter sheaves
• Neoprene construction with high-strength synthetic fiber cords for horsepower load carrying and reduced elongation
• B-section wrapped/non-cogged profile: 104 in outside length, 21/32 in top width, 7/16 in thickness, single rib

Product Highlights

B101 (B section) wrapped V-belt, 104 in outside length, neoprene with synthetic fiber reinforcement, suitable for HVAC, pumping, agricultural, and material handling drives

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 3433059
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• Model/MPN: 3433059
• Belt Industry Code: B101
• Belt Type: Standard V-Belt
• Section: B
• Outside Length: 104 in
• Top Width: 21/32 in
• Thickness: 7/16 in
• Number of Ribs: 1
• Material: Neoprene
• Reinforcement: Synthetic fiber
• Design: Single fabric (Super Gripbelt)
• Profile: Wrapped, non-cogged
• Operating Temperature: 140°F
• Weight: 1.15 lb
• UOM: EA
• UPC: 662289037049
• Prop 65: Yes
• Country of Origin: MEX
