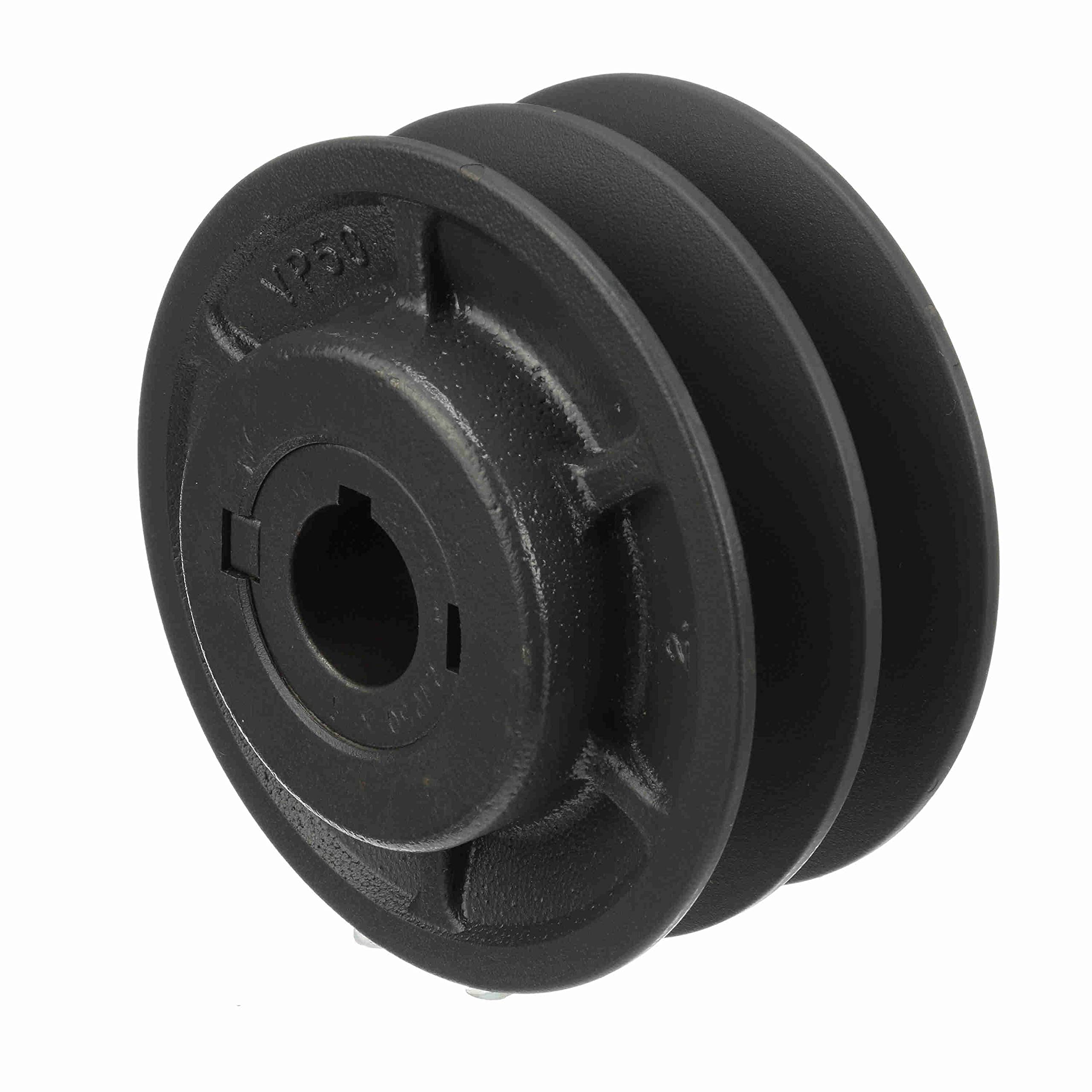

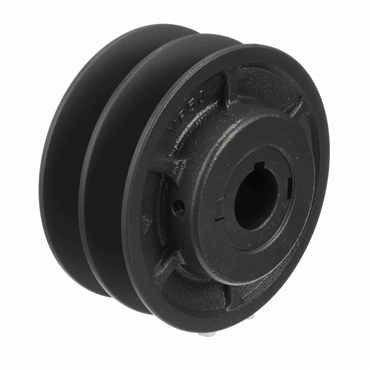

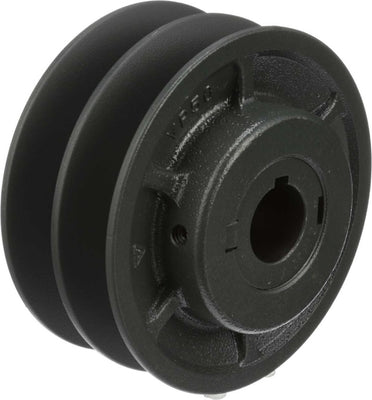

Browning 2VP50X1 Variable pitch sheave 2 groove finished bore cast iron (1 in bore x 4.75 in OD)

Product Description

Browning 2VP50X1 is a variable pitch cast iron sheave with a finished 1.000 in bore and two grooves, designed for use with 3L, 4L (A) and 5L (B) section belts. The sheave has a 4.75 in outside diameter, a face width range of 1-3/8 to 2-1/8 in, and accepts a Z12 bushing or finished-bore mounting with keyway. Typical applications include conveyors, pumps, fans, mixers, and ventilators.

• Variable pitch two-groove cast iron sheave with finished 1.000 in bore and keyway
• Compatible with 3L, 4L (A) and 5L (B) belt sections; pitch diameter range (3L) 3.30–4.10 in
• 4.75 in outside diameter, face width 1-3/8 to 2-1/8 in, length through bore 3.000 in; weight ~5.76 lb

Product Highlights

Two-groove VP series variable pitch sheave (2VP50X1) in cast iron with 1.000 in finished bore, 4.75 in OD, compatible with 3L/4L/5L belt sections.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 2VP50X1
• Country of Origin: United States

Technical Specifications

• Brand: Browning
• Manufacturer: Regal
• MPN: 2VP50X1
• Manufacturer catalog number: 1045939
• Series: VP
• Material: Cast iron
• Number of grooves: 2
• Bore type: Finished (with keyway)
• Bore diameter: 1.000 in
• Bushing: Z12
• Outside diameter: 4.750 in
• Pitch diameter (3L) min: 3.300 in
• Pitch diameter (3L) max: 4.100 in
• Pitch diameter (4L/A) min: 3.400 in
• Pitch diameter (4L/A) max: 4.400 in
• Pitch diameter (5L/B) min: 3.700 in
• Pitch diameter (5L/B) max: 4.700 in
• Compatible belt sections: 3L, 4L (A), 5L (B)
• Face width: 1-3/8 to 2-1/8 in
• Length through bore: 3.000 in
• Keyway size: 1/4 x 1/8 in
• Weight (manufacturer listed): 5.76 lb
• Length/Overall width: 4.750 in
• Country of origin: United States
• Turns open (3L) for min PD: 4
• Turns open (4L/A) for min PD: 5
• Turns open (5L/B) for min PD: 6
