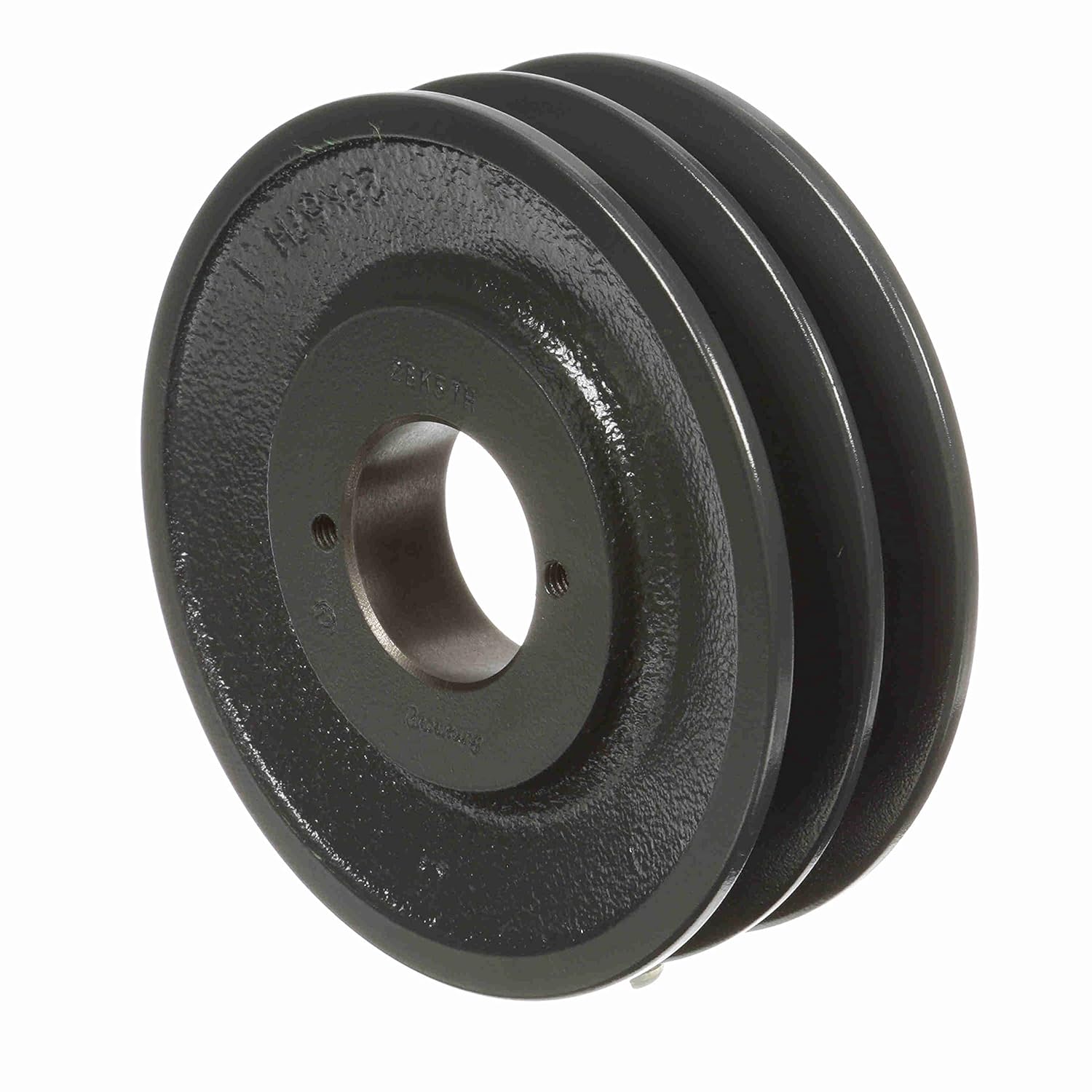

Browning 2BK57H Bushed Classical Gripbelt Sheave 4L or A 5L or B Belt 2 Grooves Uses H Bushing

Product Description

The Browning 2BK57H Bushed Classical Gripbelt Sheave is designed for use with 4L or A and 5L or B belts. It features 2 grooves and utilizes H bushings for optimal performance.

• Designed for 4L, A, 5L, and B belts
• Two grooves for enhanced power transmission
• Uses H bushings for secure mounting

Product Highlights

The Browning 2BK57H is constructed from high-strength cast iron, providing excellent durability and resistance to wear. The two-groove design increases power transmission capacity, ideal for applications like conveyors, material handling systems, fans, and pumps. Precision-engineered for smooth operation.

Product Information

Standard Information

• Item Number: 2BK57H
• Brand: Browning
• Product Type: Classical Gripbelt Sheave
• Outside Diameter: 5.45 inches
• Material: Cast Iron

Technical Specifications

• Grooves: 2
• Allows Belts: A, B, 5L or B, 4L or A
• Bore Size: 1.5 inches
• Usage: H Bushing
• Shipping Weight: 4.5 lbs
• Length: 6.7 inches
• Width: 6.4 inches
• Height: 2.65 inches
