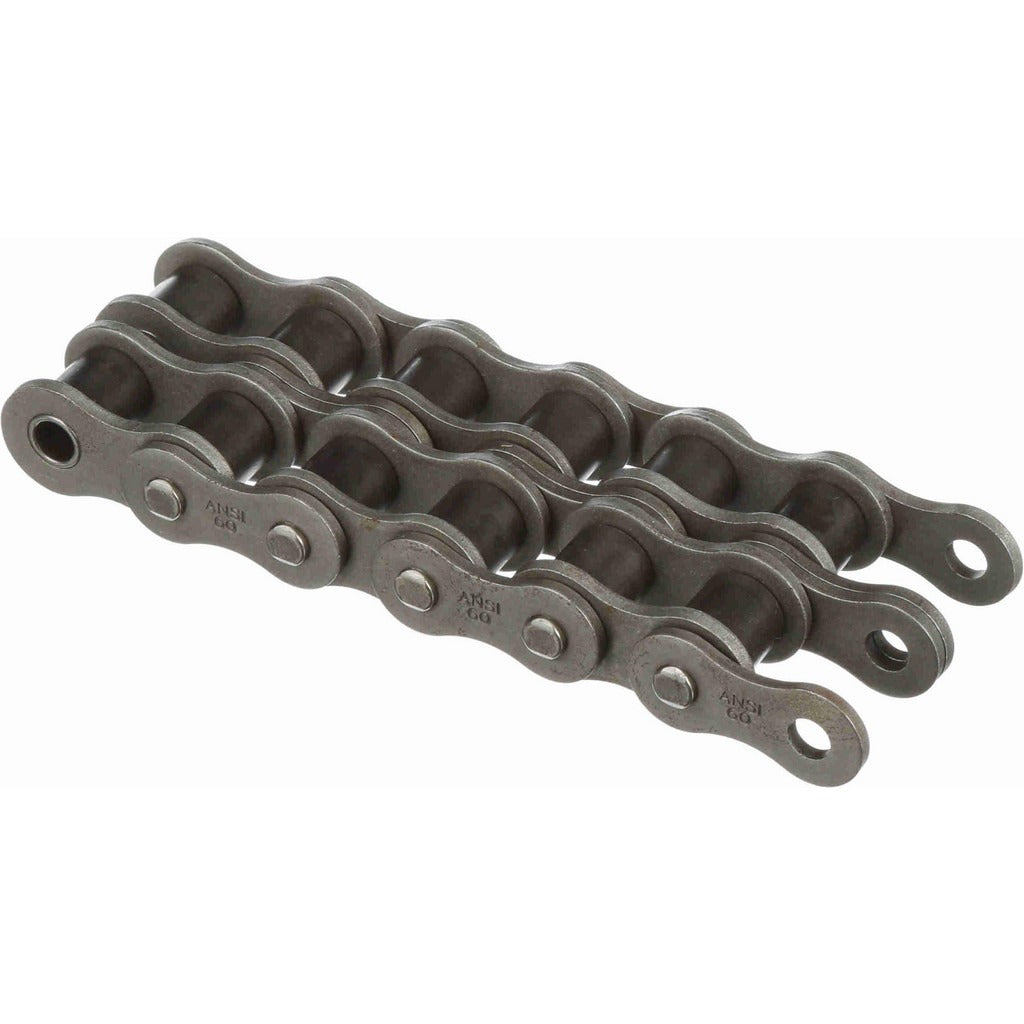

Browning 2740447 Roller Chain 3/4 in Pitch 60-2 Double Strand

Product Description

The BROWNING 2740447 is a double-strand roller chain designed for power transmission applications in industrial and commercial mechanical systems. Built to ANSI B29.1 standards, it carries a 3/4 inch pitch and features a riveted connection type for secure, reliable load transfer. The chain runs at a 0.469 inch roller diameter with a 0.500 inch roller width and an overall width of 1.080 inches. Each section measures 10 feet in length and weighs 20.5 pounds. This chain is installed by millwrights, industrial mechanics, and maintenance technicians working on drive systems, conveyors, and machinery requiring double-strand chain configurations.

This roller chain is suited for heavy-duty drive applications where a single-strand chain lacks sufficient load capacity. Typical installations include conveyor drives, industrial machinery, agricultural equipment drives, and power transmission setups requiring ANSI 60-2 specification chain. The 10-foot length allows for custom cutting and linking to fit a wide range of drive configurations in both fixed and portable equipment settings.

Key Features

• ANSI B29.1 compliant double-strand roller chain
• 3/4 inch pitch (0.7500 inch decimal) for ANSI 60-2 drive systems
• Riveted connection type for high-load, vibration-resistant performance
• Steel construction for durability in demanding industrial environments
• 0.469 inch roller diameter with 0.500 inch roller width
• 10-foot length suitable for custom installation and trimming

Compatibility

Designed as an OEM-style replacement or new-installation chain for industrial and commercial power transmission systems requiring ANSI 60-2 double-strand roller chain with 3/4 inch pitch per ANSI B29.1 standards.

Installation Notes

Installation should be performed by a qualified millwright or industrial mechanic. De-energize and lock out the drive system fully before removing or installing chain. Use a proper chain breaker tool to size the chain to the required length, and install a correctly rated master link when joining ends. Refer to applicable ANSI and OSHA machinery safety standards for guarding requirements on exposed drive chains.
