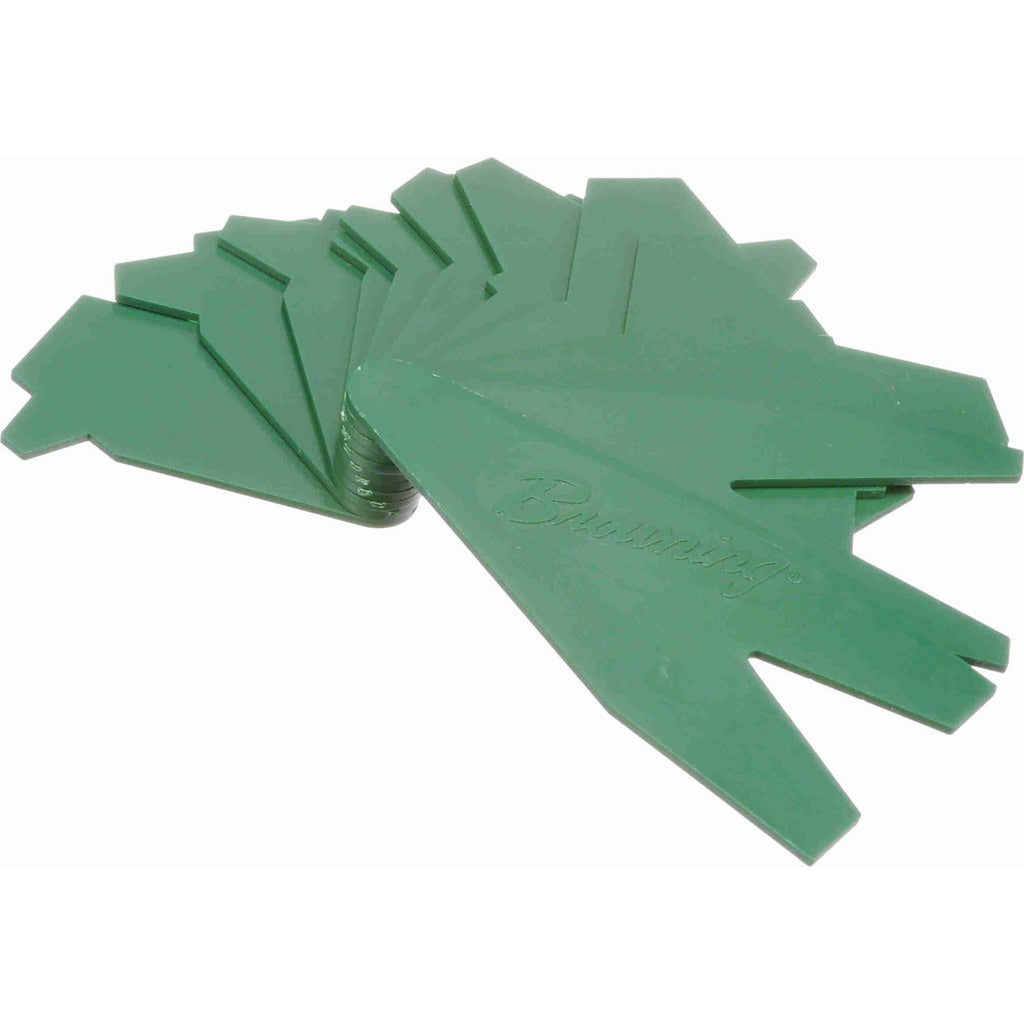

Browning 2695179 Sheave Groove Gauge 3x3x2 Inches

Product Description

The BROWNING 2695179 is a sheave groove gauge used to measure and verify the groove profile on belt drive sheaves and pulleys. Proper sheave groove geometry is critical to belt alignment, tension, and service life in HVAC, industrial, and mechanical drive applications. This gauge measures 3 inches overall length by 3 inches overall width by 2 inches high. HVAC technicians, millwrights, and mechanical contractors use this tool when inspecting or replacing V-belt drive components to confirm that sheave grooves are within acceptable tolerance before placing new belts in service.

This gauge is suited for use with standard V-belt sheaves in residential and commercial HVAC systems, as well as industrial belt drive setups where groove wear or profile accuracy must be confirmed. It is a practical inspection tool for any belt drive service call or preventive maintenance check where sheave condition is evaluated alongside belt replacement.

Key Features

• Verifies sheave groove profile to confirm proper belt fit and alignment
• Compact form factor: 3 inches OAL x 3 inches wide x 2 inches high
• Compatible with standard V-belt sheave groove profiles
• Supports preventive maintenance workflows on belt drive systems
• Lightweight and easy to carry on service calls

Compatibility

Designed for use with V-belt sheaves in belt drive applications across HVAC, commercial, and light industrial systems.

Installation Notes

This is an inspection and measurement tool, not an installed component. Before using the gauge, de-energize the equipment and lock out or tag out the drive per applicable safety procedures. Place the gauge into the sheave groove and compare the profile to confirm acceptable wear and geometry. If groove wear is excessive, the sheave should be replaced before installing new belts.
