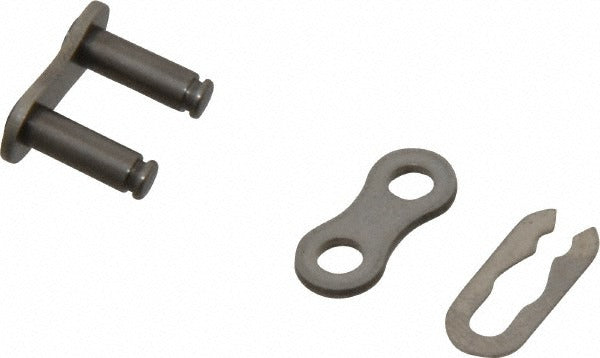

Browning 2622777 Connecting Link 35 Chain 3/8 Inch Pitch

Product Description

The BROWNING 2622777 is a stainless steel connecting link designed for single strand roller chain with a 3/8 inch pitch, conforming to ANSI number 35 chain standards. This link is used to join chain ends or close a chain loop in mechanical drive and conveyor applications. The stainless steel construction provides corrosion resistance in wet, chemical, or food-adjacent environments. With a roller diameter of 0.200 inches and a roller width of 0.187 inches, the link is dimensionally matched to ANSI 35 chain. Mechanical technicians and maintenance professionals install this link as part of routine chain drive service or new assembly work.

This connecting link is suited for light-duty mechanical drive systems, conveyor assemblies, and power transmission applications that use ANSI 35 single strand roller chain. Its stainless steel material makes it appropriate for environments where carbon steel would corrode, including washdown areas, outdoor installations, and light agricultural or food service equipment. It is sold individually but requires ordering in multiples of five units.

Key Features

• Matches ANSI 35 chain specification with 3/8 inch pitch
• Stainless steel construction for corrosion resistance in harsh or wet environments
• Single strand design for standard roller chain drive applications
• Roller diameter of 0.200 inches and roller width of 0.187 inches for proper chain fit
• Compliant with ANSI standards for chain drive components

Compatibility

Designed for use with ANSI 35 single strand roller chain with a 3/8 inch pitch. Suitable as a replacement or assembly connecting link for any standard ANSI 35 chain drive or conveyor system.

Installation Notes

Installation is performed by mechanical technicians or maintenance personnel familiar with roller chain drive systems. Disengage and de-energize the drive system completely before removing or installing chain components. The connecting link slip clip or cotter pin must be fully seated and oriented with the closed end facing the direction of chain travel to prevent disengagement under load. Inspect the mating chain ends for wear or damage before installing a new connecting link.
