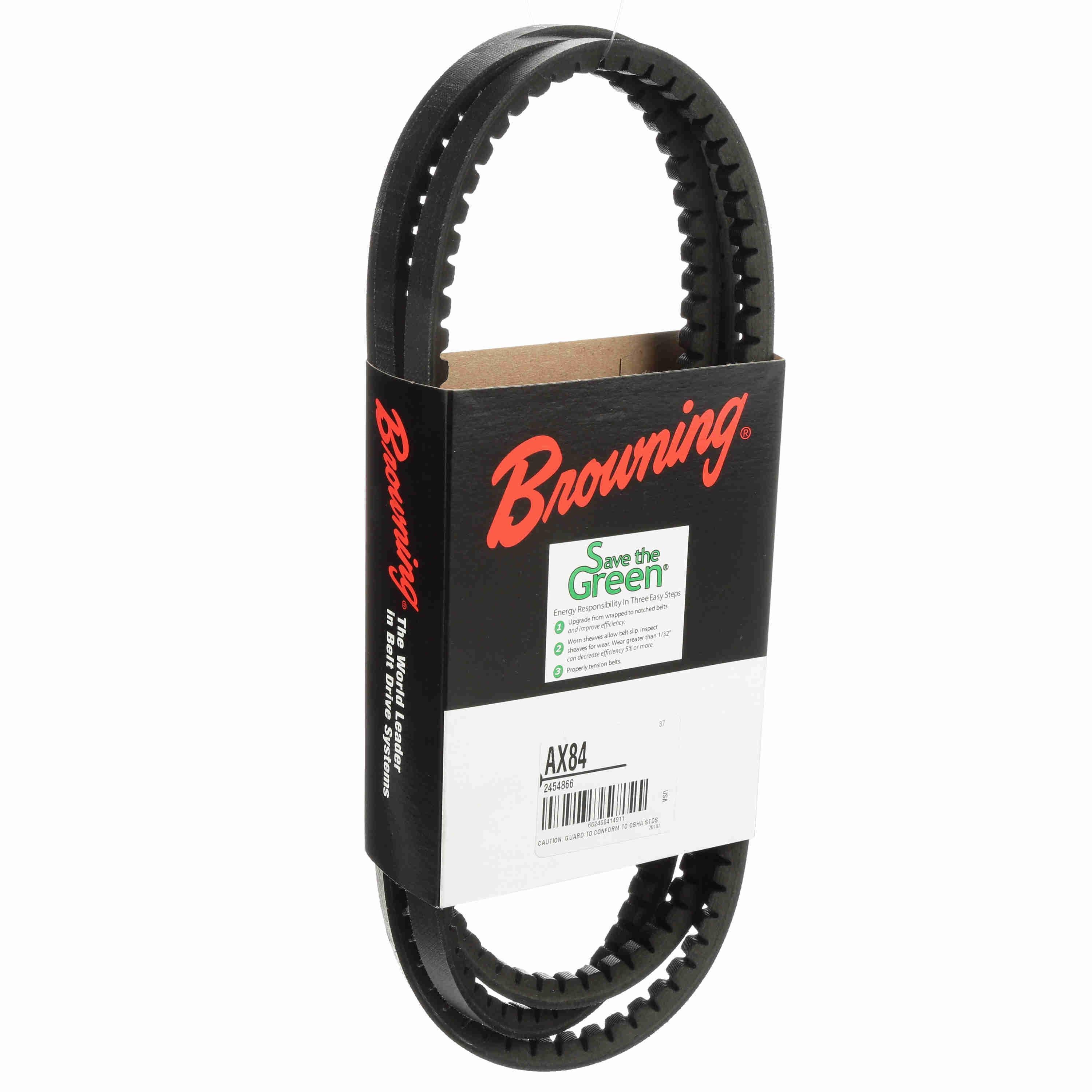

Browning 2454866 Gripnotch Belt AX Belt Section 85.3 Pitch Length

Product Description

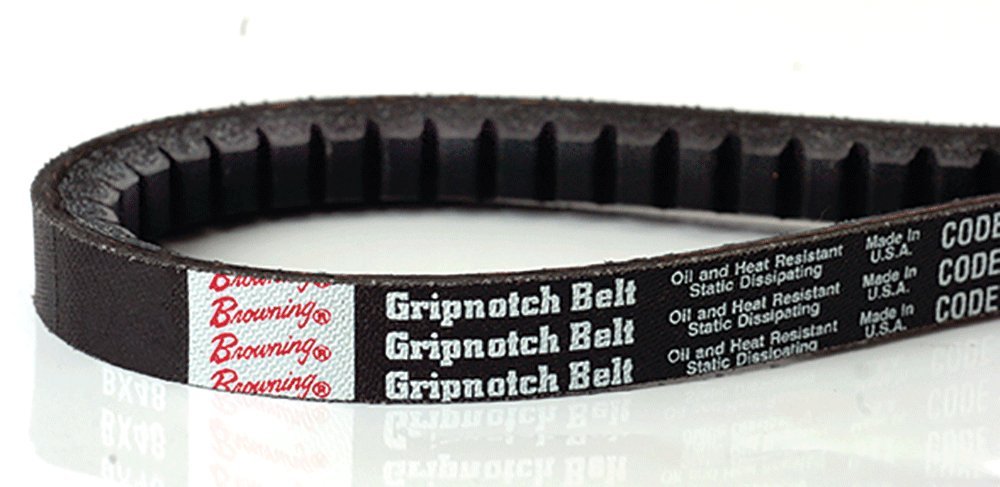

The BROWNING 2454866 Gripnotch Belt is an AX section V-belt designed for power transmission. It features EPDM material construction, making it resistant to oil, heat, and static conducting. This notched belt offers high efficiency, suitable for longer life and small diameter drives, with a pitch length of 85.3 inches.

• Utilizes "ground form" design which reduces vibration, wear, and initial belt tension loss.
• Constructed from EPDM material, offering an expanded operating temperature range from -60 degrees F to +230 degrees F.
• Features fabric on top and bottom of the belt for enhanced stability and performance.

Product Highlights

Oil and heat resistant, static conducting, and designed for high efficiency in small diameter drives.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 2454866
• Country of Origin: USA

Technical Specifications

• ASIN: B005L68BNQ
• Manufacturer: Regal
• Brand: Browning
• Product Type: MECHANICAL_BELT
• Product Group: BISS
• MPN: 2454866
• Section Size: AX
• Number of Items: 1.0
• Part ID: AX84
• Category Root: Industrial & Scientific
• Category Sub: V-Belts
• Category Tree: Industrial & Scientific > Power Transmission Products > Belts > V-Belts
• EAN: 0662460414911
• UPC: 662460414911
• Efficiency: 98%
• Construction: Cogged, Raw Edge
• Material: EPDM
• Number of Ribs: 1
• Outside Length: 86.2 in
• Pitch Length: 85.3 in
• Reinforced Material: Polyester
• Resists: Oil, Chemical, Heat
• Series: TorqTitan Series
• Suitable For Use With: Longer Life, High Efficiency and Small Diameters Drives
• Operating Temperature: -40 to 251 deg F
• Thickness: 5/16 in
• Top Width: 1/2 in
