Browning 2454833 Gripnotch V-belt Ax Section 83.2 in Cogged

Product Description

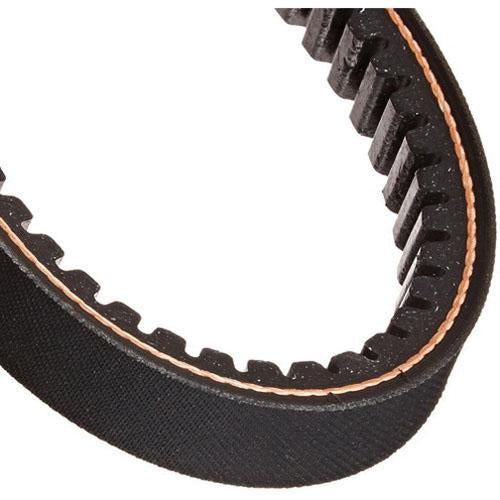

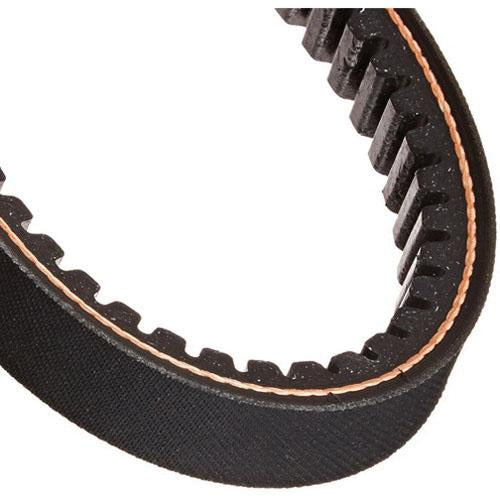

The BROWNING 2454833 is a Gripnotch cogged V-belt designed for industrial and HVAC drive applications where heat and oil resistance are required. Built with a raw edge, cogged construction, this AX-section belt delivers improved flexibility and reduced bending loss compared to conventional wrapped belts. The outside length is 83.2 inches with a pitch length of 82.3 inches. Top width measures 0.5 inches and belt thickness is 0.3125 inches. The neoprene and nylon construction allows continuous operation up to 230 degrees F, making it suitable for demanding drive systems found in commercial HVAC equipment, fans, blowers, and light industrial machinery.

This belt is intended for use in AX-section belt drive systems where a cogged, raw edge belt is specified. Typical applications include belt-driven blower assemblies, air handlers, commercial refrigeration fan drives, and general industrial machinery requiring a single-rib, classical V-belt profile. It is a direct replacement for worn or broken AX-section belts in matched or single-belt drive configurations. Installation is performed by qualified HVAC technicians, maintenance mechanics, or industrial equipment service personnel.

Key Features

• Cogged, raw edge construction reduces bending loss and runs cooler on small-diameter sheaves
• Neoprene and nylon materials provide resistance to heat and oil exposure
• Rated for continuous operation up to 230 degrees F
• AX section profile with 83.2-inch outside length and 82.3-inch pitch length for precise drive sizing
• Single-rib design suitable for standard single and multi-belt drive configurations using matched sets
• 0.5-inch top width and 0.3125-inch thickness conform to classical AX-section standards

Compatibility

Designed as an OEM-style replacement for AX-section cogged V-belt drive systems. Fits any sheave or pulley grooved to the AX classical V-belt profile.

Installation Notes

Belt installation should be performed by a qualified technician. Always de-energize and lock out the drive motor before removing guards or handling belts. Never pry a belt onto a sheave with tools; adjust center distance to allow proper belt seating, then re-tension according to the drive manufacturer's specifications. Inspect sheave grooves for wear before installing a new belt to prevent premature failure.

Technical Specifications

• Section Size: AX
• Outside Length: 83.2 inches
• Pitch Length: 82.3 inches
• Top Width: 0.5 inches
• Thickness: 0.3125 inches
• Number of Ribs: 1
• Construction: Cogged, Raw Edge
• Material: Neoprene/Nylon
• Temperature Rating: 230 degrees F
• Resists: Heat, Oil

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 2454833
