Browning 2454809 ax76 gripnotch belt ax belt section 77.3 pitch length

Product Description

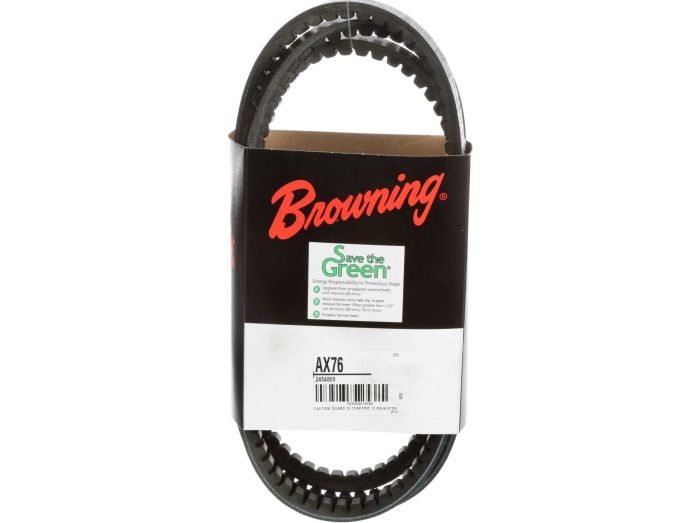

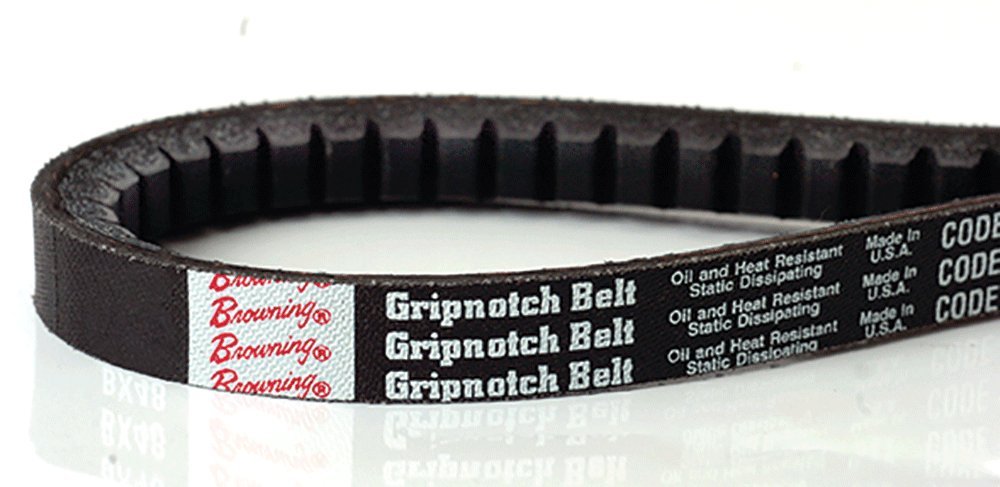

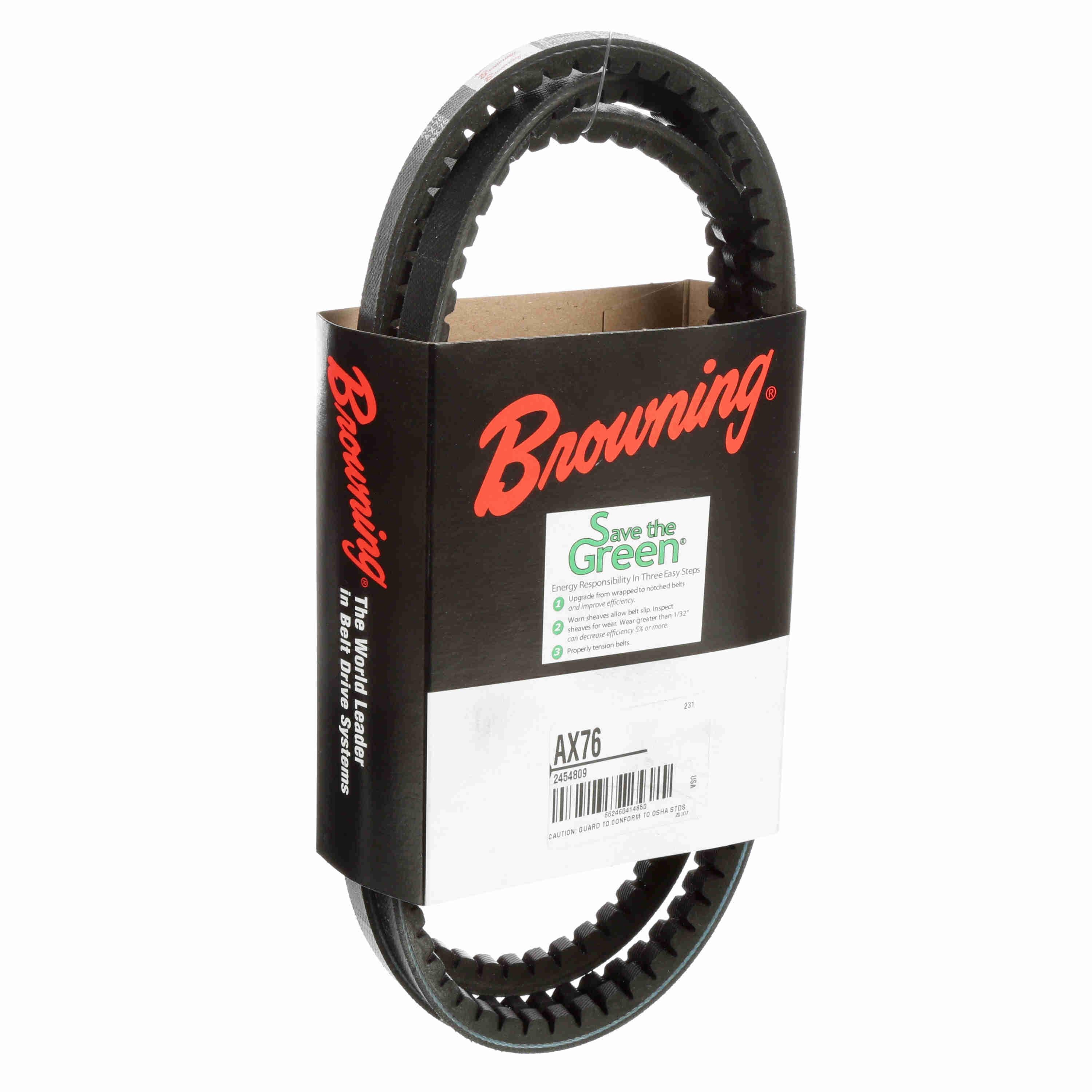

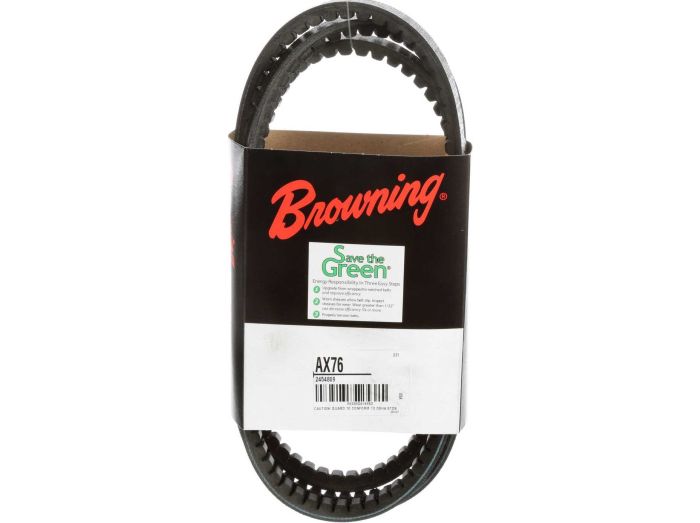

The BROWNING 2454809 Gripnotch Belt is an AX Belt Section designed for industrial power transmission. This V-belt is oil and heat resistant, static conducting, and features a 77.3 pitch length. Constructed from EPDM, it offers 98% efficiency and is suitable for demanding applications, reducing vibration and wear. Its robust design ensures reliable performance in various operating conditions.

• Utilizes a ground form design to minimize vibration, wear, and initial belt tension loss.
• Made with new EPDM material, providing an expanded operating temperature range from -60°F to +230°F.
• Features fabric on top and bottom for enhanced stability and performance, ensuring greater contact with the sheave.

Product Highlights

This AX76 Gripnotch V-Belt offers precision with Browning CODE 1 matched tolerance, high 98% efficiency, and durable EPDM construction for reliable industrial power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 2454809
• Country of Origin: US

Technical Specifications

• MPN: 2454809
• Brand: Browning
• Manufacturer: Regal
• Product Type: MECHANICAL_BELT
• Model: AX76
• Belt Type: V-Belt
• Section: AX Belt Section
• Pitch Length: 77.3 inches
• Outside Length: 78.2 inches
• Number of Bands: 1
• Top Width: 0.5 inches
• Design: Notched, Cogged, Gripnotch
• Material: EPDM
• Operating Temperature Range: -60°F to +230°F
• Efficiency: 98%
• Series: TorqTitan
• Number of Ribs: 1
• Thickness: 5/16 inches
• Reinforced Material: Nylon
• Tensile Material: Polyester
• System of Measurement: Imperial
