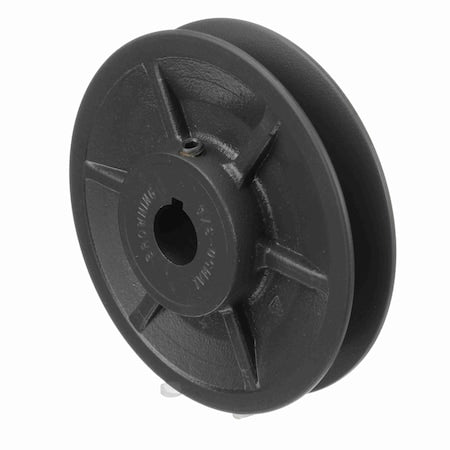

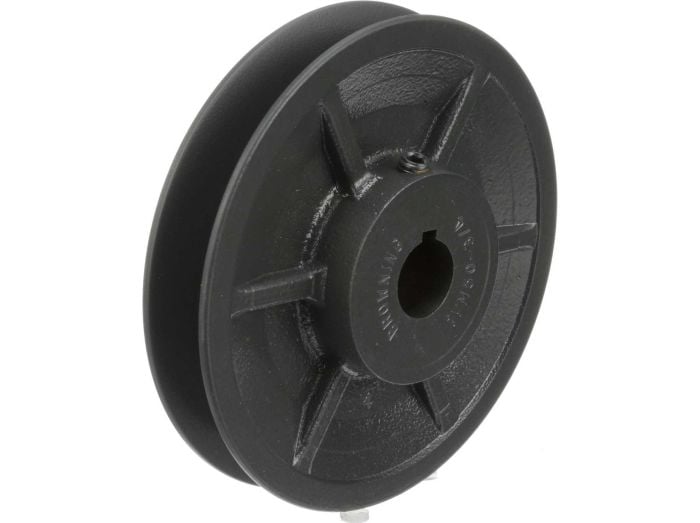

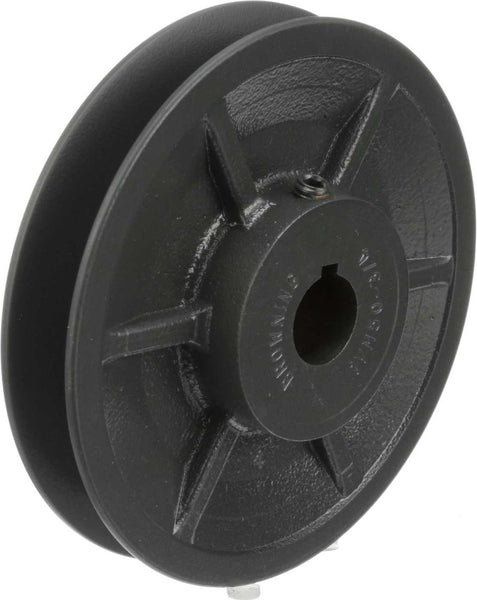

Browning 1VM50X3/4 Finished bore cast iron variable pitch sheave (4.75 in OD / 0.75 in bore)

Product Description

The Browning 1VM50X3/4 is a finished-bore cast iron variable pitch sheave with a 0.75 in bore and 4.75 in outside diameter. It provides adjustable effective pitch diameter for variable-speed V-belt drives and accepts 3L, 4L, 5L, A and B belt sections. The single-groove sheave includes a finished bore with keyway and a 1.9375 in length through bore, intended for fractional-horsepower drive applications and equipment replacement.

• Finished 0.7500 in bore with keyway; keyway size 3/16 x 3/32 in.
• 4.7500 in outside diameter; single groove; face width 11/16 to 1-1/16 in; length through bore 1.9375 in.
• Compatible with 3L, 4L, 5L, A and B belt sections; variable pitch adjusts effective pitch diameter (3L: 3.3–4.1 in).

Product Highlights

Finished-bore cast iron variable pitch sheave, 1 groove, 0.75 in bore, 4.75 in OD, compatible with 3L/4L/5L/A/B V-belts.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1VM50X3/4
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• MPN: 1VM50X3/4
• Manufacturer Item Number: 1046481
• Series: VM
• Product Type: Variable pitch sheave
• Material: Cast iron
• Bore Type: Finished with keyway
• Bore Diameter: 0.7500 in
• Outside Diameter: 4.7500 in
• Number of Grooves: 1
• Belt Section Size: 3L, 4L, 5L, A, B
• Face Width: 11/16 to 1-1/16 in
• Length Through Bore: 1.9375 in
• Keyway Size: 3/16 x 3/32 in
• Minimum Pitch Diameter (3L): 3.3000 in
• Maximum Pitch Diameter (3L): 4.1000 in
• Pitch Diameter Ranges: 3.3 to 4.1 in (3L); 3.6 to 4.6 in (A/4L); 3.8 to 4.8 in (B/5L)
• Weight: 2.545 LB
• Manufacturer UPC: 662289245970
• Country of Origin: Mexico
