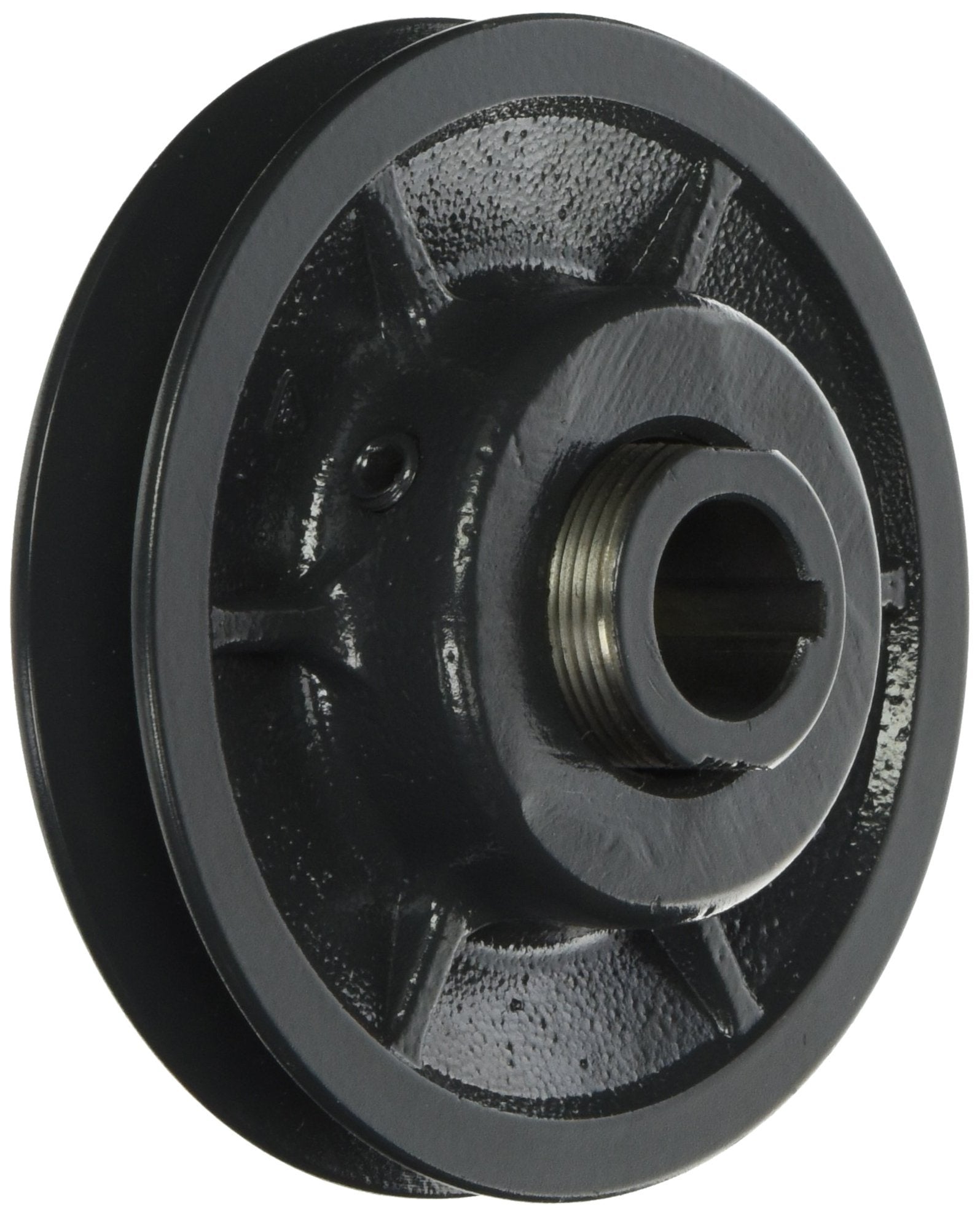

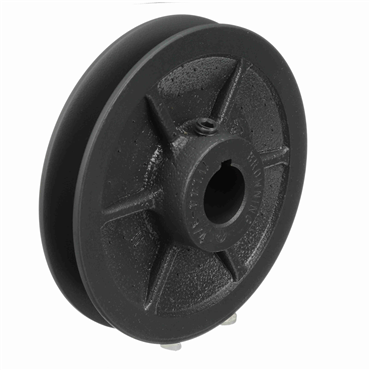

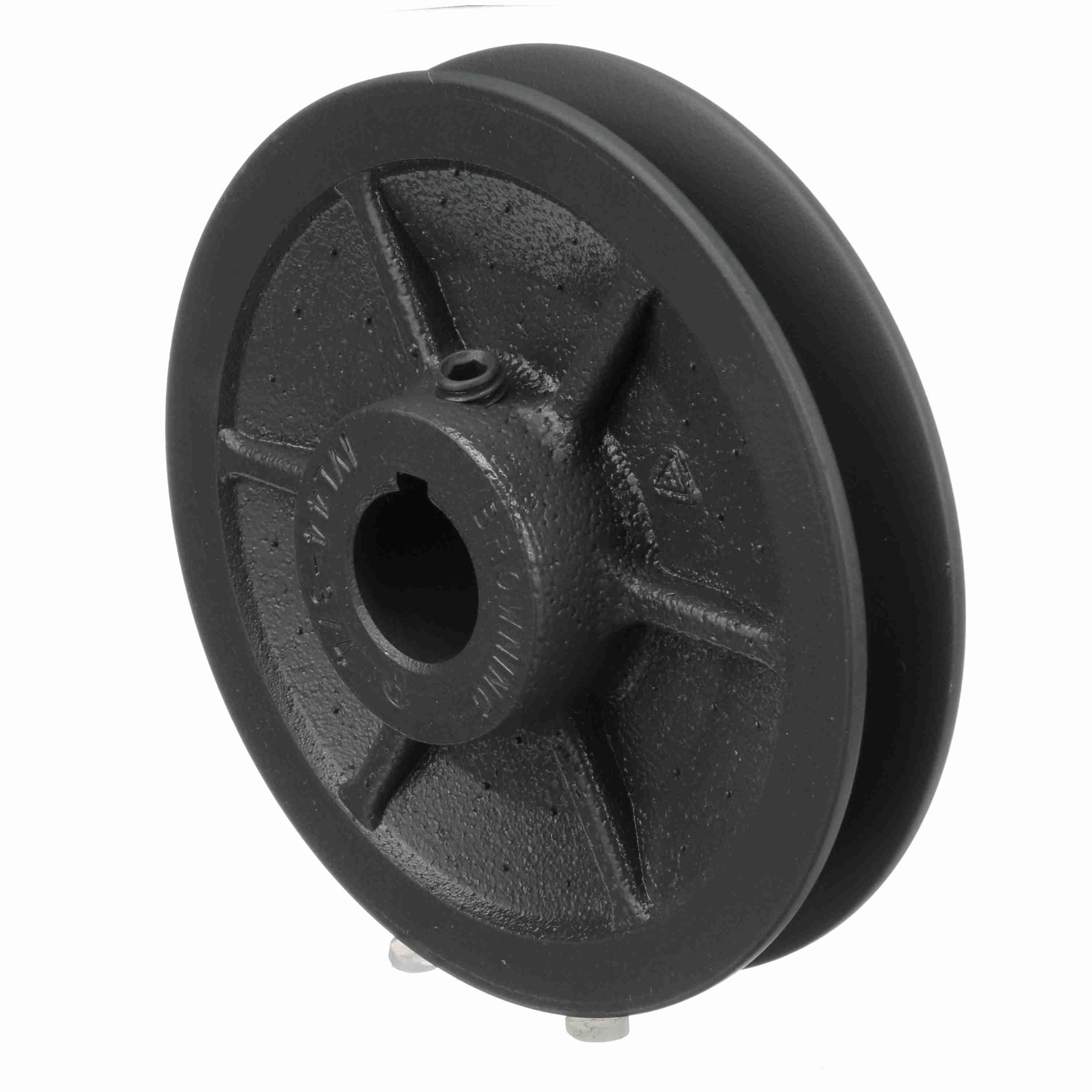

Browning 1VL44X3/4 VL VM Series cast iron variable pitch sheave 25 HP (0.75 in bore) 1046440

Product Description

Browning 1VL44X3/4 is a VL/VM series cast iron variable pitch sheave with a 0.75 inch finished bore and single groove. It provides adjustable pulley diameter (manual turn) for variable-speed drive applications, with a 4.15 inch outside diameter and 3L pitch diameters approximately 2.7 in (min) to 3.5 in (max). It accepts 3L, 4L/A and 5L/B section V-belts and is sized for up to 25 horsepower.

• Variable pitch design with manual turn adjustment; pitch diameter range 2.7 in to 3.5 in (3L) for speed variation.
• Finished 0.75 in bore with keyway; length through bore 1.8750 in; keyway size 3/16 x 3/32 in.
• Cast iron single-groove sheave; outside diameter 4.1500 in; compatible with 3L, 4L (A) and 5L (B) V-belt sections; covers up to 25 HP.

Product Highlights

Single-groove cast iron variable pitch sheave, 0.75 in finished bore, 4.15 in OD, 2.7–3.5 in pitch range.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1VL44X3/4
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• Manufacturer Part Number: 1VL44X3/4
• Series: VL, VM
• Material: Cast iron
• Number of Grooves: 1
• Pulley Construction: Variable pitch (adjustable)
• Adjustment Method: Manual turn
• Bore Type: Finished bore with keyway
• Bore Diameter: 0.7500 in
• Length Through Bore: 1.8750 in
• Keyway Size: 3/16 x 3/32 in
• Outside Diameter: 4.1500 in
• Face Width: 21/32 to 1-1/32 in
• Pitch Diameter Min (3L): 2.7000 in
• Pitch Diameter Max (3L): 3.5000 in
• Pitch Diameter (4L/A): 3.0 in to 4.0 in
• Pitch Diameter (5L/B): 3.2 in to 4.2 in
• Compatible Belt Sections: 3L, 4L (A), 5L (B)
• Maximum Horsepower: Up to 25 HP
• Max Belt Width: 0.656 in
• Min Belt Width: 0.375 in
• Key UPC: 662289195862
• GTIN / EAN: 0662289195862
• Country of Origin: United States
• Product Type: Variable pitch sheave
• Weight: 1.92 LB
