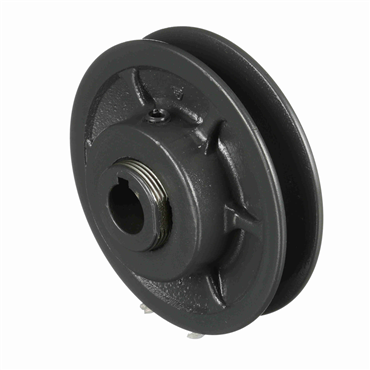

Browning 1VL34X5/8BULK Finished Bore Cast Iron Variable Pitch Sheave

Product Description

The BROWNING 1VL34X5/8BULK is a finished bore cast iron variable pitch sheave. Browning offers a wide range of variable speed sheaves. This sheave is designed with one groove and is suitable for belt sections 3L, 4L or A, 5L or B. Bulk Pak packaging 20 per pack

• Widest range of variable speed sheaves in the market
• One groove product
• Bulk Pak packaging 20 per pack

Product Highlights

Finished bore cast iron variable pitch sheave with one groove for variable speed applications.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1VL34X5/8BULK

Technical Specifications

• Turns Open (A or 4L) (For Min PD): 5
• Pitch Diameter (B or 5L) (Max): 3.3
• Pitch Diameter (3L) (Max): 2.5
• Type of Bore: Finished
• Pitch Diameter (B or 5L) (Min): 2.5
• Pitch Diameter (3L) (Min): 1.7
• Turns Open (B or 5L) (For Max PD): 1
• Turns Open (3L) (For Min PD): 4
• Material: Cast Iron
• Pitch Diameter (A or 4L) (Min): 2
• Belt Section: 3L, 4L or A, 5L or B
• Pitch Diameter (A or 4L) (Max): 3
• Number of Grooves: 1
