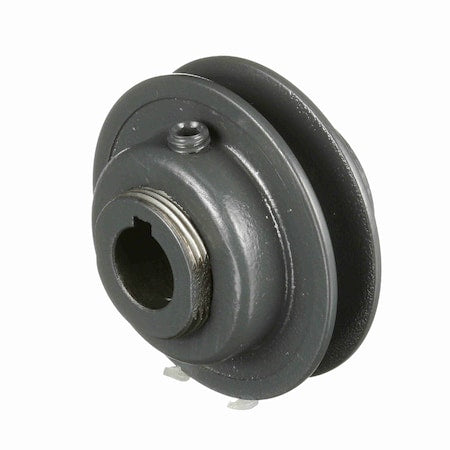

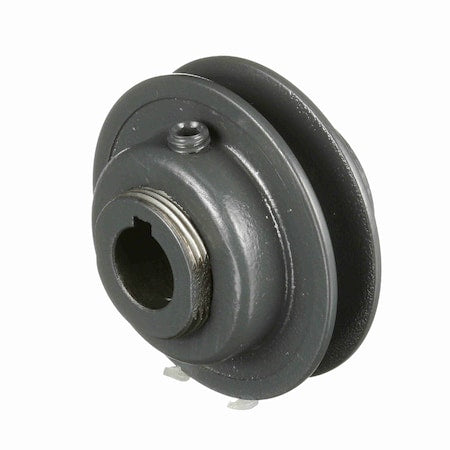

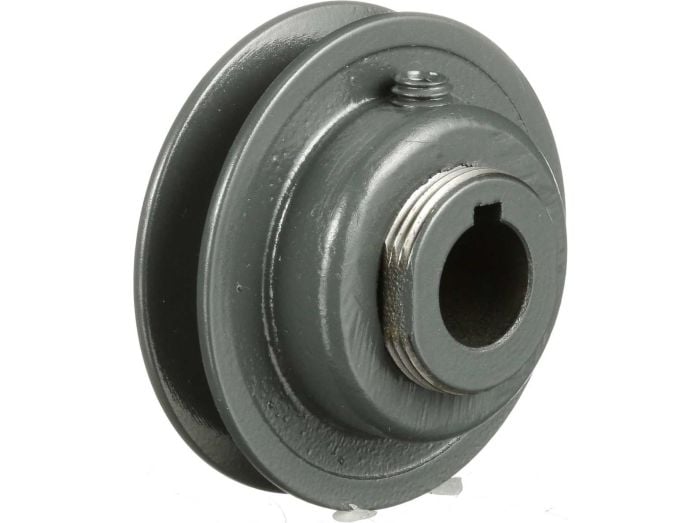

Browning 1VL25X5/8 1-groove cast iron FHP variable pitch sheave 2.5 in OD 5/8 in bore 1046325

Product Description

The Browning 1VL25X5/8 is a cast iron FHP variable pitch sheave with a finished 0.625 in (5/8 in) bore and a 2.50 in outside diameter. It has a single-groove VL series design for 3L V-belts and a finished bore with a 3/16 x 3/32 in keyway. Variable construction provides an adjustable pitch diameter range of 1.60 in to 2.40 in for fractional-horsepower belt-drive and variable-speed applications.

• Cast iron construction, finished bore with keyway; bore diameter 0.625 in and outside diameter 2.50 in
• Variable-pitch VL series design for 3L V-belts; pitch diameter range 1.60 in to 2.40 in; single groove
• Face/overall width 2.50 in, length through bore 1.6875 in, keyway size 3/16 x 3/32 in

Product Highlights

Single-groove VL series sheave for 3L belts; adjustable pitch 1.60–2.40 in; finished 5/8 in bore with keyway

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1VL25X5/8
• Country of Origin: Mexico

Technical Specifications

• Brand: Browning
• MPN: 1VL25X5/8
• Manufacturer Item Number: 1046325
• Series: VL
• Product Type: FHP variable pitch sheave
• Material: Cast iron
• Bore Type: Finished with keyway
• Bore Diameter: 0.6250 in (5/8 in)
• Outside Diameter: 2.5000 in (2.5 in)
• Overall Width: 2.5000 in
• Face Width: 17/32 to 25/32 in
• Belt Section: 3L
• Number of Grooves: 1
• Length Through Bore: 1.6875 in
• Keyway Size: 3/16 x 3/32 in
• Minimum Pitch Diameter: 1.6000 in (3L) Min
• Maximum Pitch Diameter: 2.4000 in (3L) Max
• Pulley Construction: Variable (adjustable pitch)
• UPC: 662289316823
• Country of Origin: Mexico
• Weight: 0.85 lb
