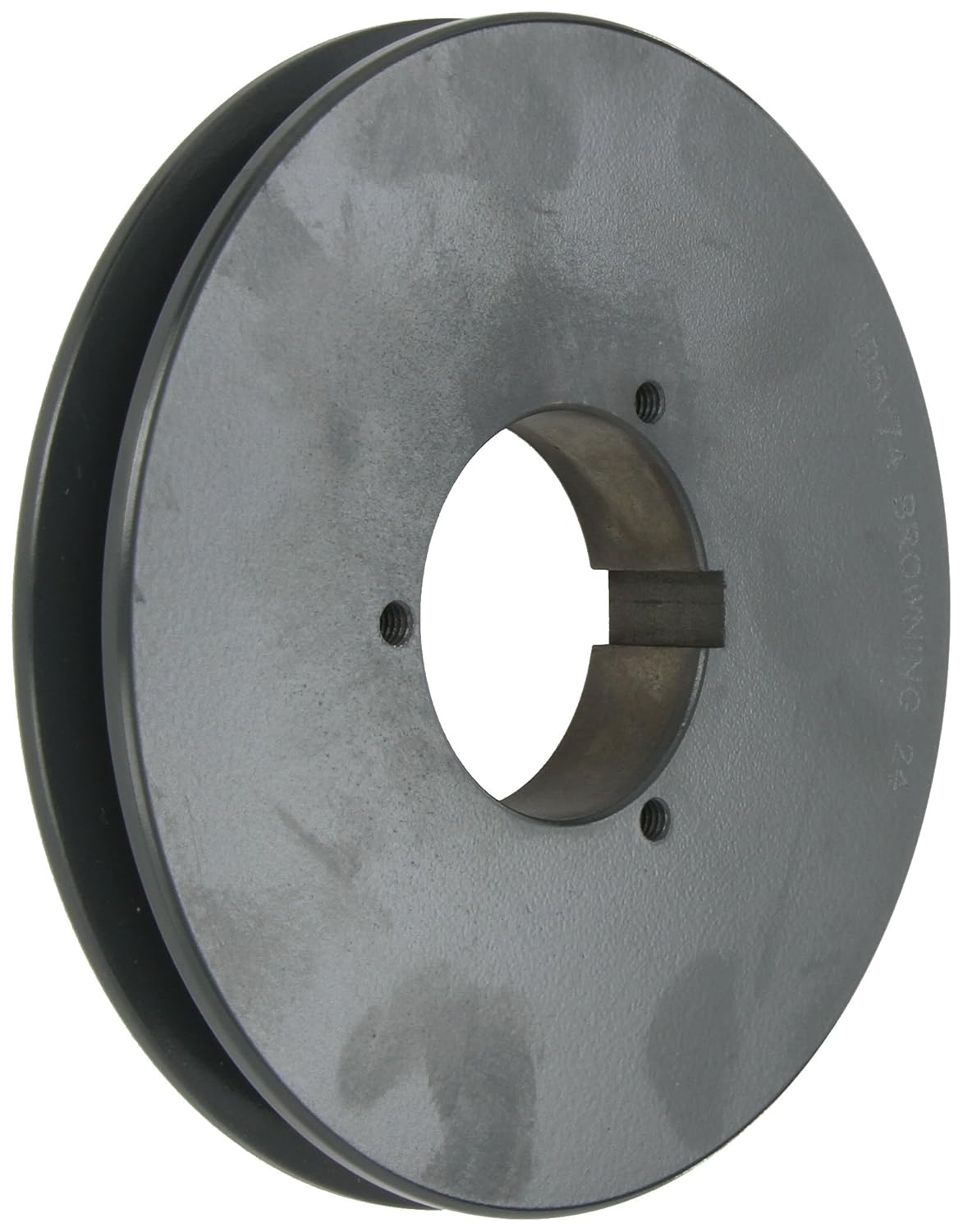

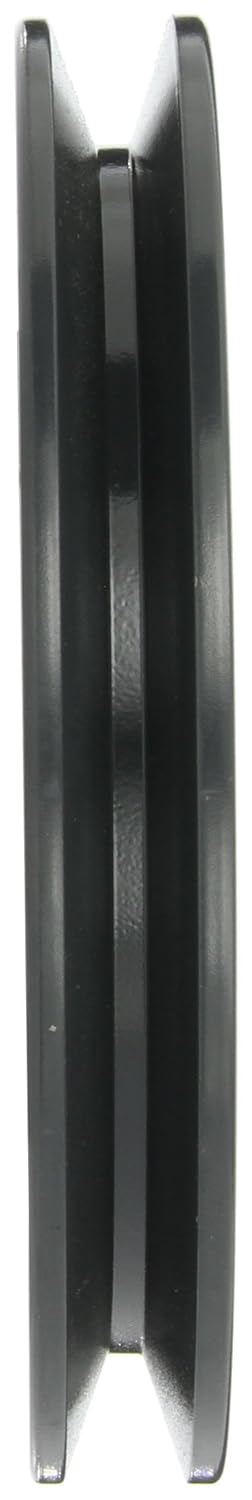

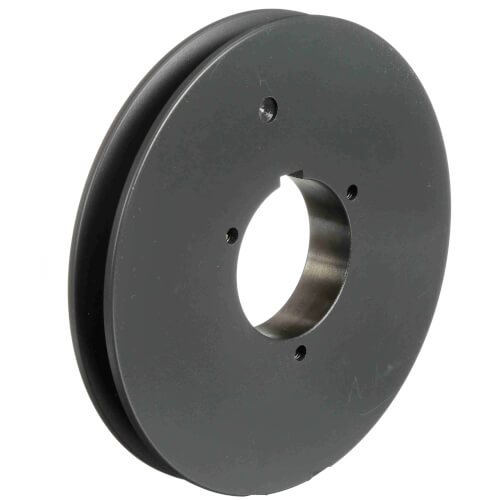

Browning 1B5V74 Split Taper Sheave Cast Iron 1 Groove A B or 5V Belt Uses B Bushing

Product Description

Experience the efficiency of the Browning 1B5V74 Split Taper Sheave, expertly designed for versatile belt-driven systems. Crafted from robust cast iron, this sheave features a single groove compatible with A, B, or 5V belts and uses a B bushing for reliable performance.

• Optimized for various belt types including A, 4L, B, 5L, and 5V.
• Capable of supporting 5 to 125 horsepower drives.
• Incorporates a true Key-to-Key drive with Browning Split Taper Bushing.

Product Highlights

This high-performance sheave is engineered for power transmission in heavy-duty applications. Its adaptable design supports a wide array of belt sizes, while its split taper bushing ensures increased efficiency and a perfect fit.

Product Information

Standard Information

• Brand: Browning
• MPN: 1B5V74

Technical Specifications

• Material: Cast Iron
• Number of Grooves: 1
• Belt Types Supported: A, B, 5V
• Outside Diameter: 7.68 inches
• Country of Origin: United States
• Application: Used in conveyors, hoists, and machinery
