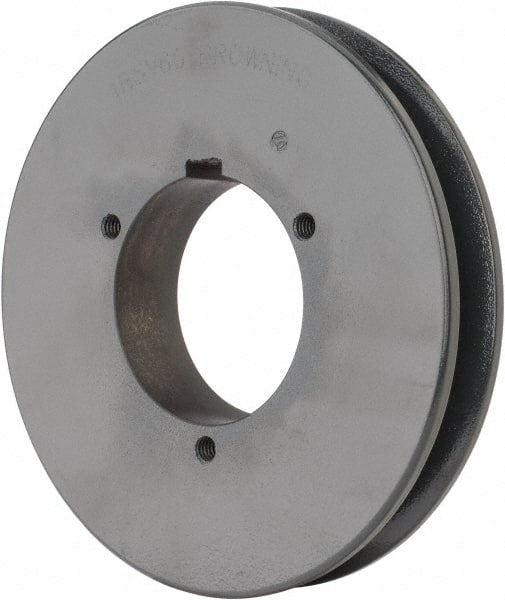

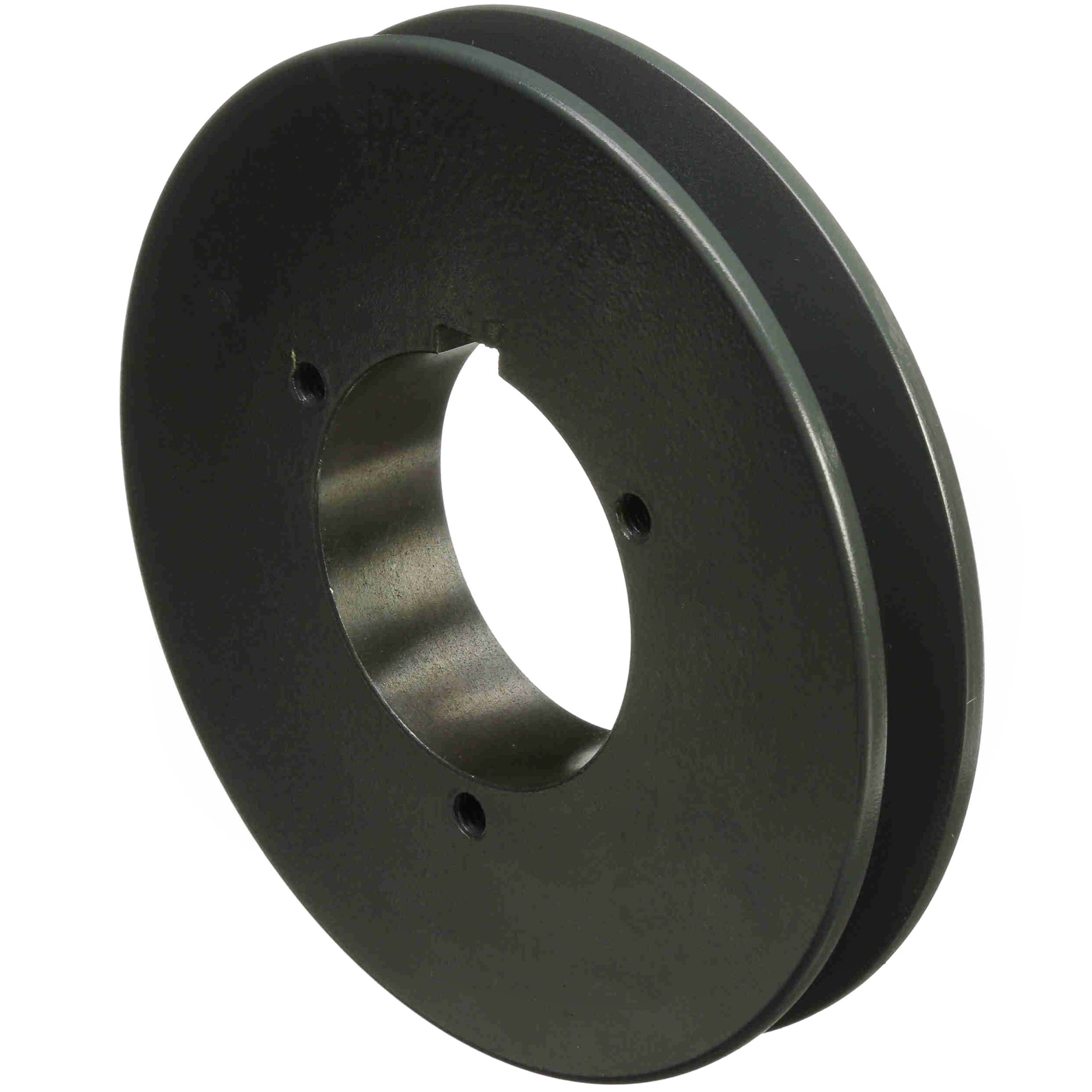

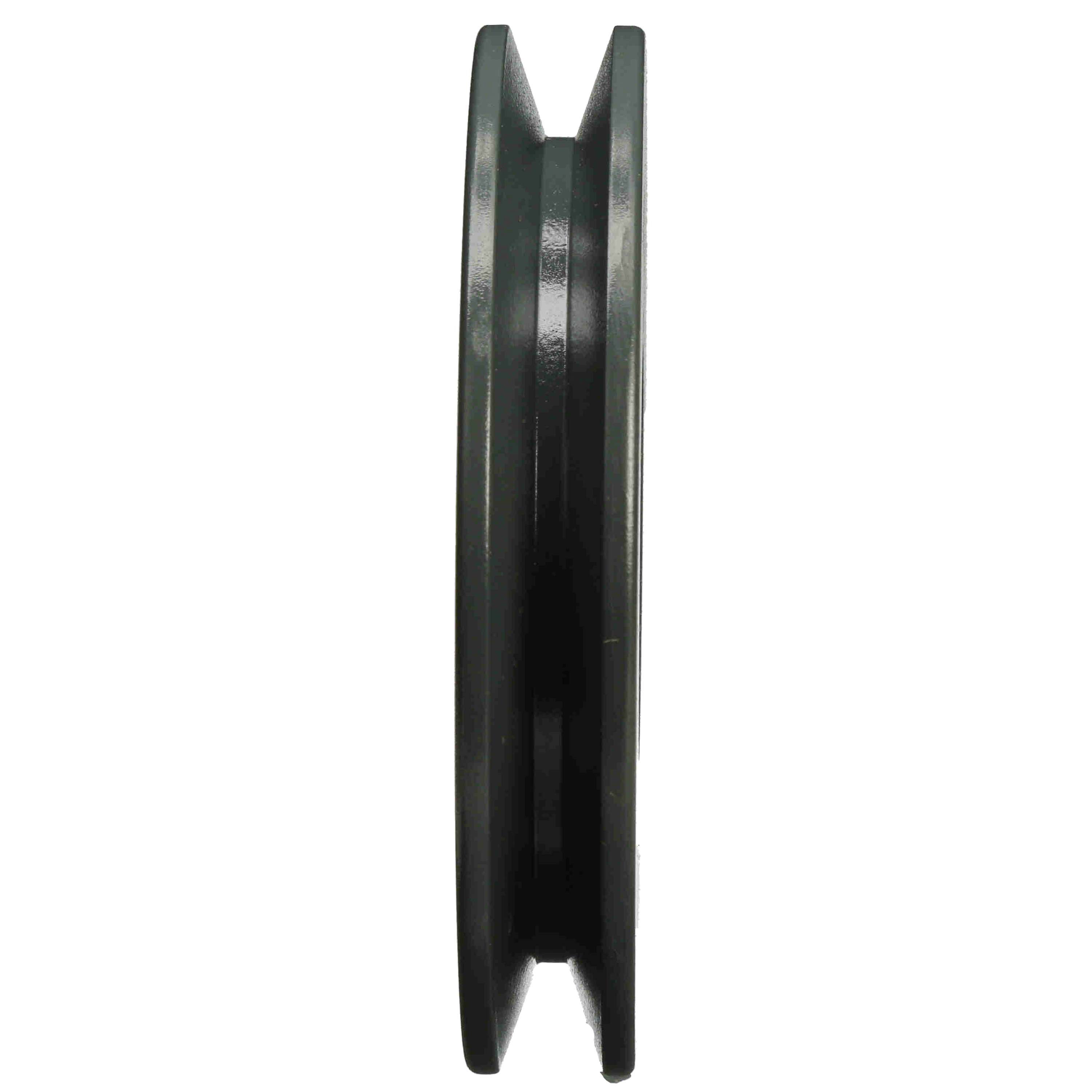

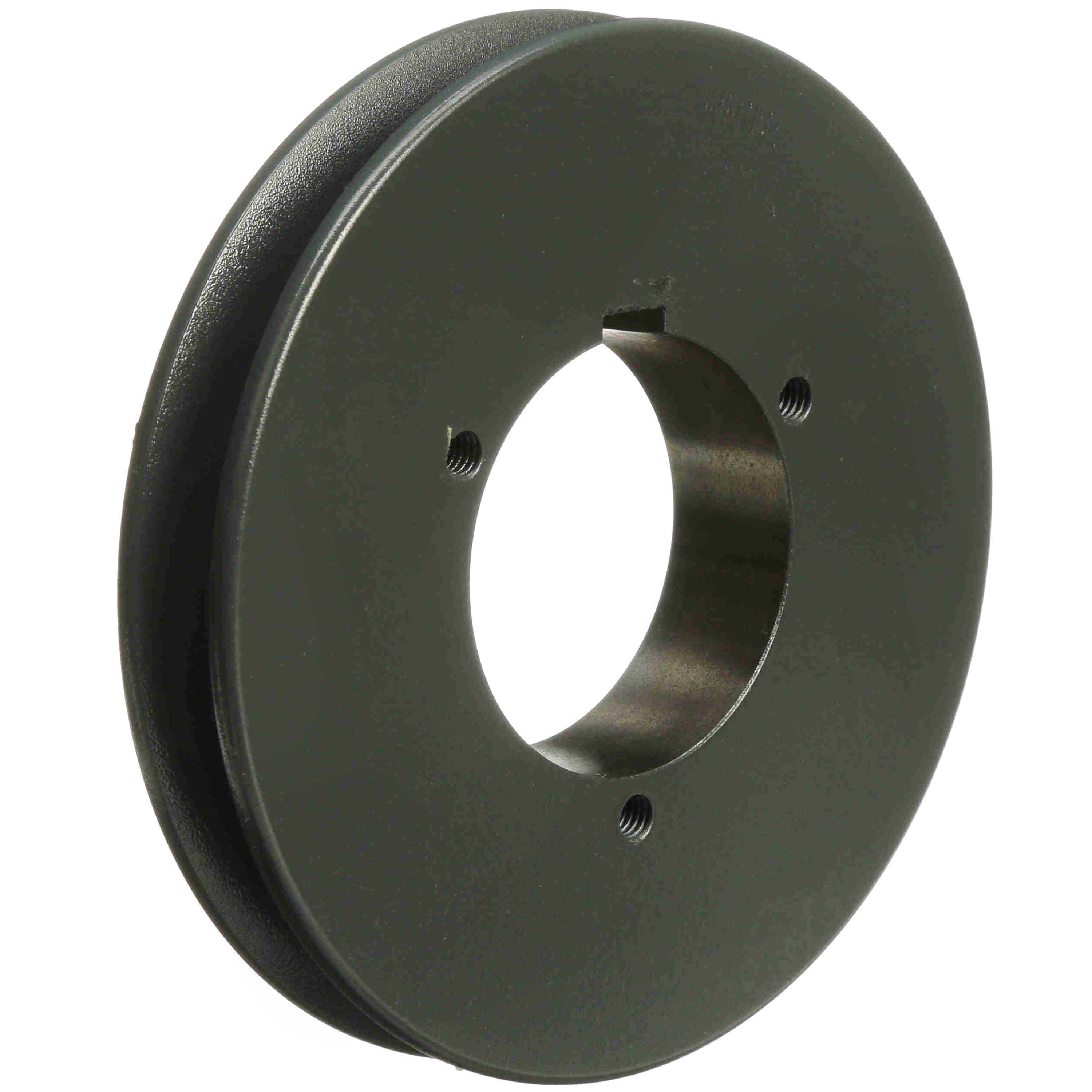

Browning 1B5V60 Split Taper Bushed Multiple Sheave (1 Groove 6.28 in OD) 3693678

Product Description

The Browning 1B5V60 is a split taper bushed multiple sheave used for industrial power transmission. It has a combination groove that accepts A, 4L, B, 5L and 5V belts and an outside diameter of 6.28 in. The sheave uses a B series split taper bushing with a bore range of .500 to 2.4375 in and is intended for applications such as fans, blowers, conveyors, pumps and mixers.

• Combination groove permits A, 4L, B, 5L and 5V belts for multiple pitch diameters and horsepower ranges
• Split taper B series bushing with bore range .500 - 2.4375 in for key-to-key shaft-to-hub drive
• Cast iron construction; outside diameter 6.28 in, face width 1.00 in, overall width 2.14 in, weight 5.44 lb

Product Highlights

Single-groove cast iron sheave with combination groove; split taper B bushing; 6.28 in OD; bore range .500 to 2.4375 in.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1B5V60
• Country of Origin: United States

Technical Specifications

• Brand: Browning
• MPN: 1B5V60
• Manufacturer Catalog Number: 3693678
• Model Name: 1B5V-SheaveMaster
• Product Type: Split taper bushed multiple sheave (V-belt pulley)
• Material: Cast iron
• Number of Grooves: 1
• Belt Compatibility: A, 4L, B, 5L, 5V (combination groove)
• Bushing Type: Split taper
• Bushing Series: B
• Bushing Bore Range: .500 - 2.4375 in
• Bore Minimum: 0.500 in
• Outside Diameter: 6.28 in
• Pitch Diameter (A): 5.8 in
• Pitch Diameter (5V): 6.1 in
• Datum Diameter (A): 5.6 in
• Datum Diameter (B): 6.0 in
• Overall Width: 2.14 in
• Face Width: 1.00 in
• Length Through Bore: 1.9375 in
• Number of Hubs: 1
• Keyway Size: 0.500 in
• Weight: 5.44 lb
• Applications: Fans; Blowers; Conveyors; Pumps; Mixers; Crushers; Conveying equipment; Shakers and sorters; Saws
