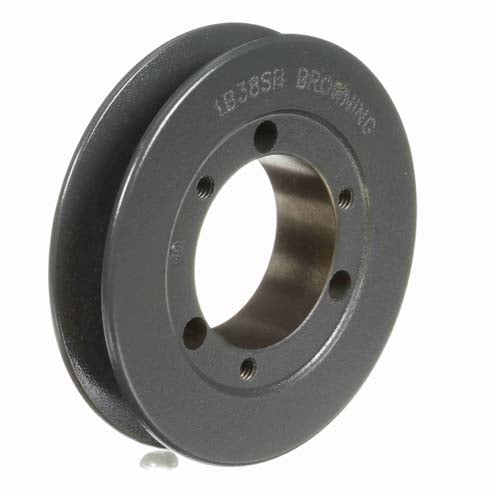

Browning 1B38SH V-Belt Pulleys - A, B Belt Section, 1 Groove, 3.6000 in (A) 4.1000 in (B) Pitch Dia.

Product Description

The Browning 1B38SH V-Belt Pulley is designed for use with A and B belt sections. This product features one groove with precise dimensions for optimal performance. The pitch diameter measures three point six inches for the A section and four point one inches for the B section. The outside diameter of the pulley is four point fifteen inches, and it includes a QD bushing with a bore size of half an inch. Made from cast iron, this pulley is built for durability.

• Combination groove suitable for A and B belts.
• Close grain cast iron construction permits close tolerances.
• Single hub design for efficient operation.

Product Highlights

This pulley is suitable for various applications in mechanical power transmission, allowing for flexibility and reliability in operation.

Product Information

Standard Information

• Brand: Browning
• Country Of Origin: Mexico

Technical Specifications

• MPN: 1B38SH
• Material: Cast Iron
• Bore Type: QD Bushed
• Face Width: 0.8750 in
• Overall Width: 1.4688 in
• Diameter: 4.1500 in
• Pitch Diameter: 3.6000 in (A) 4.1000 in (B)
• Bushing Series: SH
