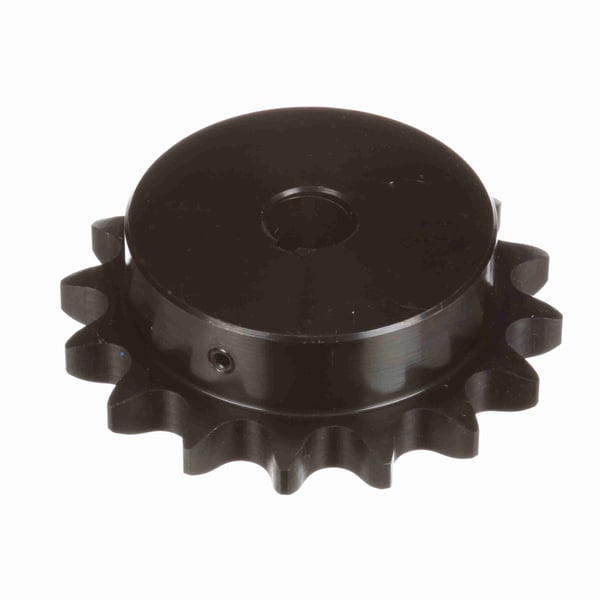

Browning 1882133 H6016X3/4 BRN Single Strand Finished Bore Type 1 Roller Chain Sprocket

Product Description

Browning finished bore sprockets are designed for single strand applications. The part number is 1882133. This roller chain sprocket features a three-quarter inch diameter bore and is suitable for use with #60 chain. It is made from steel and includes hardened teeth for enhanced durability.

• Suitable for aggregate, cement, agriculture, forestry, minerals, mining, and pulp and paper industries.
• Standard keyway on centerline of tooth with hollow head setscrew over keyway.
• Warranted to last at least twice as long as standard unhardened mild steel sprockets.

Product Highlights

This sprocket is ideal for heavy-duty applications, ensuring reliability and extended service life.

Product Information

Standard Information

• Brand: Browning
• Manufacturer: Regal Rexnord

Technical Specifications

• Material: Steel
• Chain Size: #60
• Bore Diameter: 3/4 in
• Hub Diameter: 3.078 in
• Outside Diameter: 4.22 in
• Pitch Diameter: 3.844 in
• Number of Teeth: 16
• Length Through Bore: 1-1/4 in
• Country of Origin: US
