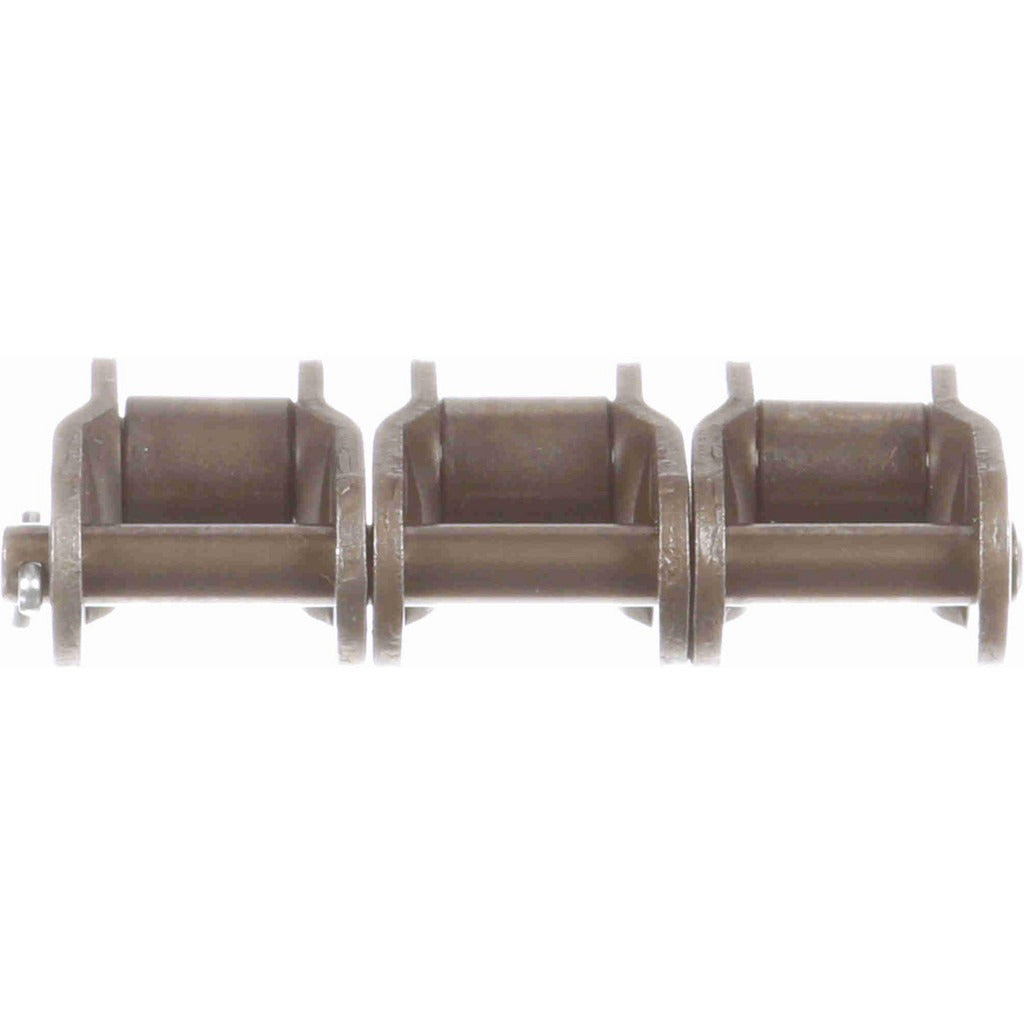

Browning 1298199 Offset Link Triple Strand 60 Chain

Product Description

The BROWNING 1298199 is a steel offset link designed for use with triple strand roller chain at a 3/4 inch pitch. Offset links are used to add or remove a single link from a chain run when an even number of pitches cannot be achieved with standard connecting links. This part conforms to ANSI standard number 60-3, making it a direct-fit component for ANSI 60 triple strand chain applications. The pin attachment type and 0.234 inch pin diameter are sized to match the roller and side plate geometry of standard 60-3 chain. Weighing 0.19 pounds, this link is sold individually and is a common service part stocked by industrial maintenance and conveyor technicians.

This offset link is suited for industrial, agricultural, and mechanical power transmission applications where triple strand number 60 chain is used. Typical install scenarios include conveyor systems, agricultural equipment drives, and general industrial machinery requiring periodic chain length adjustment. The 0.468 inch roller diameter and 0.500 inch roller width match the standard ANSI 60-3 chain specification, ensuring proper engagement with sprockets sized for that chain trade number.

Key Features

• ANSI 60-3 standard offset link for triple strand chain
• 3/4 inch pitch matches standard number 60 chain dimensions
• Steel construction for durability in power transmission applications
• Pin attachment type with 0.234 inch pin diameter
• 0.468 inch roller diameter and 0.500 inch roller width
• Sold as a single unit for precise quantity purchasing

Compatibility

Designed for use with ANSI 60-3 triple strand roller chain with a 3/4 inch pitch. Fits sprockets and drive assemblies dimensioned to the ANSI 60 triple strand standard.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical assemblers. De-energize and lock out the drive system fully before removing or installing any chain link. Use a chain breaker or press tool appropriate for number 60 triple strand chain to seat the pin without damaging the side plates. Verify chain tension and sprocket alignment after installation per equipment manufacturer guidelines.
