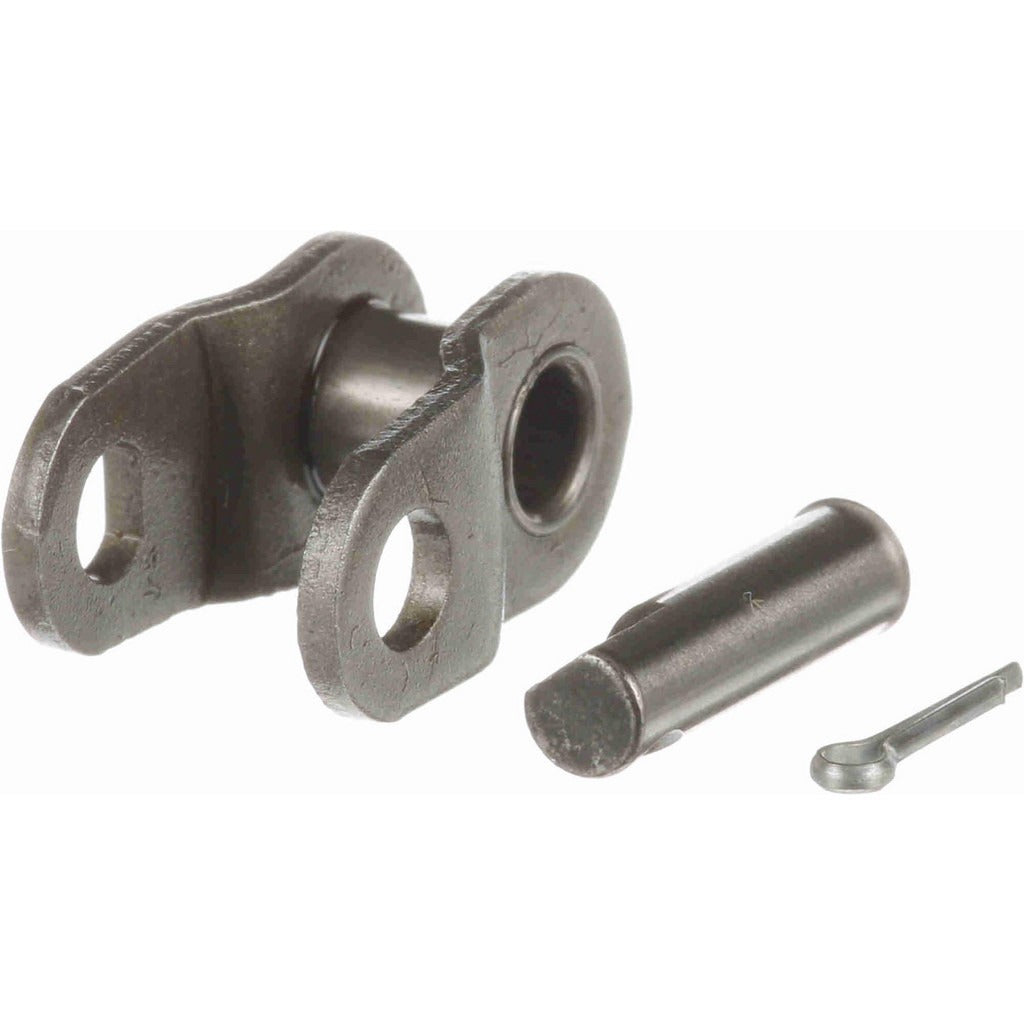

Browning 1297969 Offset Link 35 Chain 3/8 Inch Pitch

Product Description

The BROWNING 1297969 is a steel offset link designed for use with single strand roller chain in ANSI 35 chain applications. An offset link allows a roller chain to be shortened or lengthened by a single pitch when a standard master link cannot be used due to an odd number of links. This link features a 3/8 inch pitch, a 0.141 inch pin diameter, and a 0.200 inch roller diameter. It meets ANSI standards and is installed by HVAC technicians, mechanical contractors, and industrial maintenance professionals working on chain-driven equipment.

This offset link is suited for light-duty power transmission applications using ANSI 35 single strand roller chain. Common installations include chain drives on fans, conveyors, augers, and other equipment found in residential, commercial, and light industrial settings. The 3/8 inch pitch and 0.1875 inch roller width match standard ANSI 35 chain dimensions, making this link a direct-fit solution when adjusting chain length during maintenance or repair.

Key Features

• ANSI 35 single strand chain compatibility with 3/8 inch pitch
• Steel construction for durability in power transmission applications
• Pin attachment type with 0.141 inch pin diameter
• 0.200 inch roller diameter and 0.1875 inch roller width match ANSI 35 chain specs
• Meets ANSI standards (UNSPSC 31151609)

Compatibility

Designed for use with ANSI 35 single strand roller chain with a 3/8 inch pitch. Suitable as an offset connecting link wherever ANSI 35 chain is used in single strand configurations.

Installation Notes

Installation is performed by qualified mechanical or HVAC technicians. De-energize and lock out all power to the equipment before servicing any chain drive. Use appropriate chain breaker and connecting pin tools to seat the link correctly. Verify chain tension and alignment after installation per equipment manufacturer guidelines.
