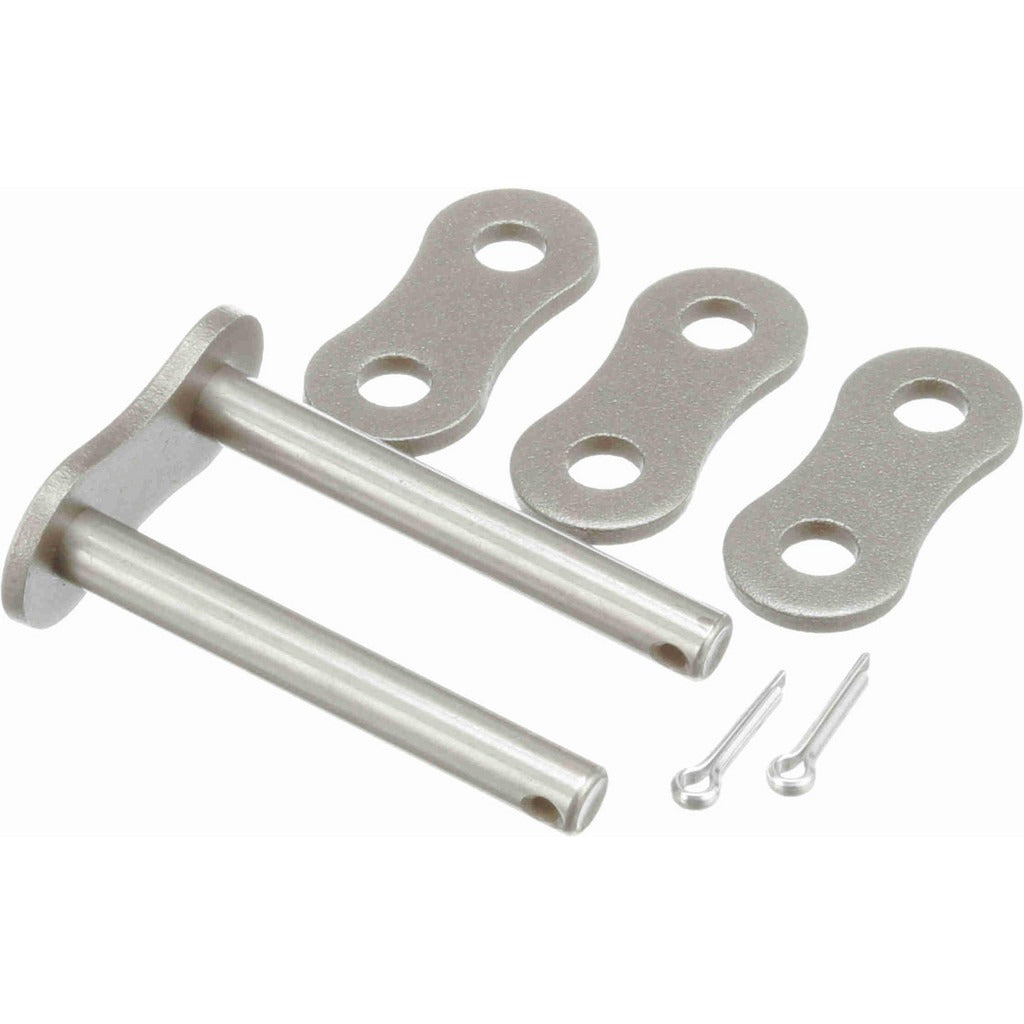

Browning 1297738 Double Strand 80 Chain Connecting Link

Product Description

The BROWNING 1297738 is a steel connecting link designed for double strand roller chain with a 1-inch pitch. It meets ANSI standards and fits ANSI number 80-2 chain. The link uses a pin-style attachment and is constructed from steel for durability in industrial drive applications. Roller diameter is 0.625 inches and roller width is 0.625 inches, with a pin diameter of 0.312 inches. This type of connecting link allows technicians to join or close a length of roller chain without specialized tooling, making it a standard service component in mechanical power transmission systems.

This connecting link is used in industrial and commercial applications wherever ANSI 80-2 double strand roller chain is specified. Typical installations include conveyor drives, agricultural equipment, manufacturing machinery, and other mechanical power transmission setups. It is sized for 80 chain with a 1-inch pitch and double strand configuration, making it a direct fit for systems built to ANSI roller chain standards. Licensed maintenance technicians and millwrights commonly install and replace these links during chain service or repair.

Key Features

• Steel construction for strength in mechanical drive applications
• 1-inch pitch matches ANSI 80-2 double strand roller chain specifications
• Pin-style attachment type for straightforward chain closure
• Roller diameter of 0.625 inches and roller width of 0.625 inches
• Pin diameter of 0.312 inches for precise fit
• Compliant with ANSI standards (ANSI Number 80-2)

Compatibility

Designed for use with ANSI 80-2 double strand roller chain with a 1-inch pitch. Suitable as an OEM-style replacement or service link wherever this chain specification is used.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during chain assembly or repair. De-energize and lock out all power sources to the drive system before servicing the chain. Use appropriate chain tools to seat the connecting link clip or cotter pin securely. Verify that the link is fully engaged and the retaining clip is properly oriented before returning the system to service.
