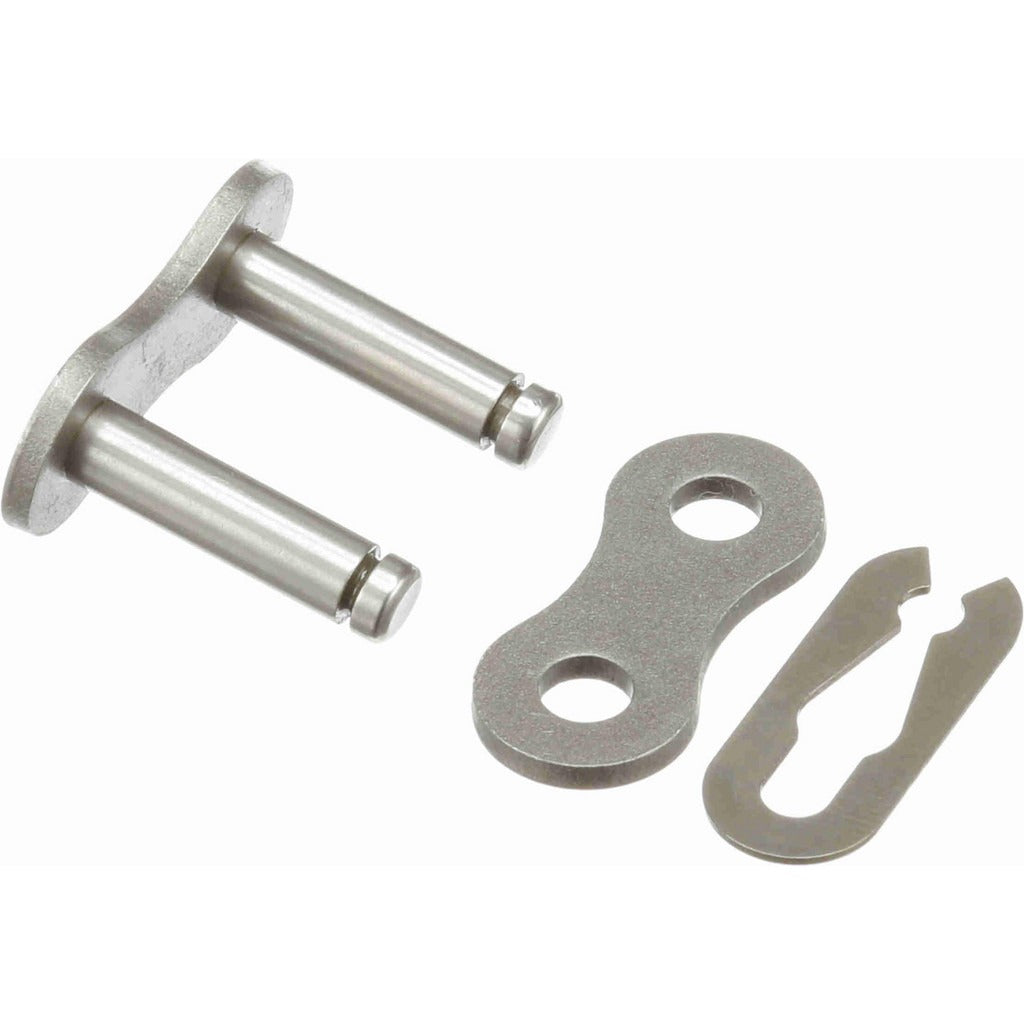

Browning 1297605 Connecting Link 60 Chain 3/4 Inch Pitch

Product Description

The BROWNING 1297605 is a connecting link designed for single strand roller chain with a 3/4 inch pitch, conforming to ANSI Number 60 chain standards. This steel link allows technicians and mechanics to join or close a length of #60 roller chain without specialized tools, making it a standard consumable for chain drive maintenance and installation. The link features a pin attachment type with a pin diameter of 0.234 inches and a roller width of 0.500 inches, keeping dimensions consistent with OEM chain specifications. It is commonly installed by industrial maintenance technicians, HVAC equipment installers, and mechanical contractors working on chain-driven conveyor, fan, or drive systems.

This connecting link is suited for use in single strand #60 roller chain applications found in light industrial machinery, HVAC equipment drives, agricultural equipment, and general mechanical power transmission systems. It is used wherever a serviceable, reusable chain closure is needed on ANSI 60 chain. The link meets ANSI standards, making it interchangeable with other ANSI 60 compliant chain hardware. Each package contains one connecting link, with a minimum order quantity of 5 units.

Key Features

• Designed for ANSI Number 60 single strand roller chain with 3/4 inch pitch
• Steel construction for durability in mechanical drive environments
• Pin attachment type for straightforward chain closure and removal
• Pin diameter of 0.234 inches and roller width of 0.500 inches match ANSI 60 chain dimensions
• Meets ANSI standards for compatibility with standard #60 chain components

Compatibility

Designed as an OEM-style connecting link for ANSI Number 60 single strand roller chain with a 3/4 inch pitch, compatible with chain assemblies conforming to ANSI 60 specifications.

Installation Notes

Installation is typically performed by a qualified mechanical or maintenance technician. Always de-energize and lock out the drive system before removing or installing chain components, following LOTO procedures per applicable safety codes. Use proper snap ring pliers or a connecting link tool to seat the clip securely. Do not reuse a connecting link clip that shows signs of wear or deformation.
