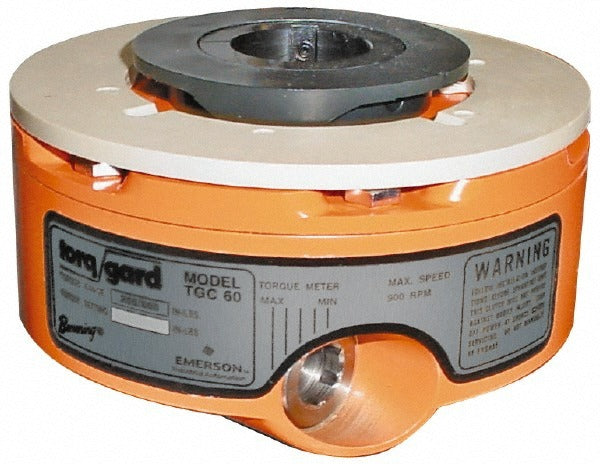

Browning 1295344 Clutch Torque Guard Sprocket 28 Tooth

Product Description

The BROWNING 1295344 is a steel clutch torque guard with sprocket designed for mechanical power transmission applications. Built to work with the Torq Gard 800 series, this unit provides controlled torque limiting to protect driven equipment from overload damage. It features a 28-tooth sprocket configuration, an overall height of 11.84 inches, an overall width of 6.46 inches, and a sprocket face width of 0.692 inches. The 1-1/4 inch pitch matches standard roller chain drive systems. At 14.68 pounds, this is a robust, steel-construction component suited for industrial and commercial drive train installations performed by mechanical or millwright technicians.

This torque guard with sprocket is intended for use in chain drive systems where overload protection is required. It is specifically designed for integration with Torq Gard 800 series clutch assemblies. Typical applications include conveyors, packaging equipment, agricultural machinery, and other industrial drive systems where protecting gearboxes, motors, or downstream components from shock loads or jam conditions is a priority. Installation is performed by qualified mechanical technicians during new drive system builds or as replacement units during scheduled maintenance.

Key Features

• 28-tooth sprocket for standard roller chain engagement
• 1-1/4 inch pitch compatible with matching roller chain
• Steel construction for durability in demanding drive applications
• Torque limiting design protects downstream components from overload
• Overall height of 11.84 inches and overall width of 6.46 inches
• Designed for use with Torq Gard 800 series clutch assemblies

Compatibility

Designed for use with the Torq Gard 800 series clutch system. Verify sprocket pitch and tooth count match the existing chain drive before installation.

Installation Notes

Installation should be performed by a qualified mechanical or millwright technician. Disconnect and lock out all power sources before removing or installing any drive components. Ensure the mating roller chain pitch and width match the sprocket specifications before assembly. Torque guard clutch settings should be verified and adjusted per the equipment manufacturer's specifications after installation.
