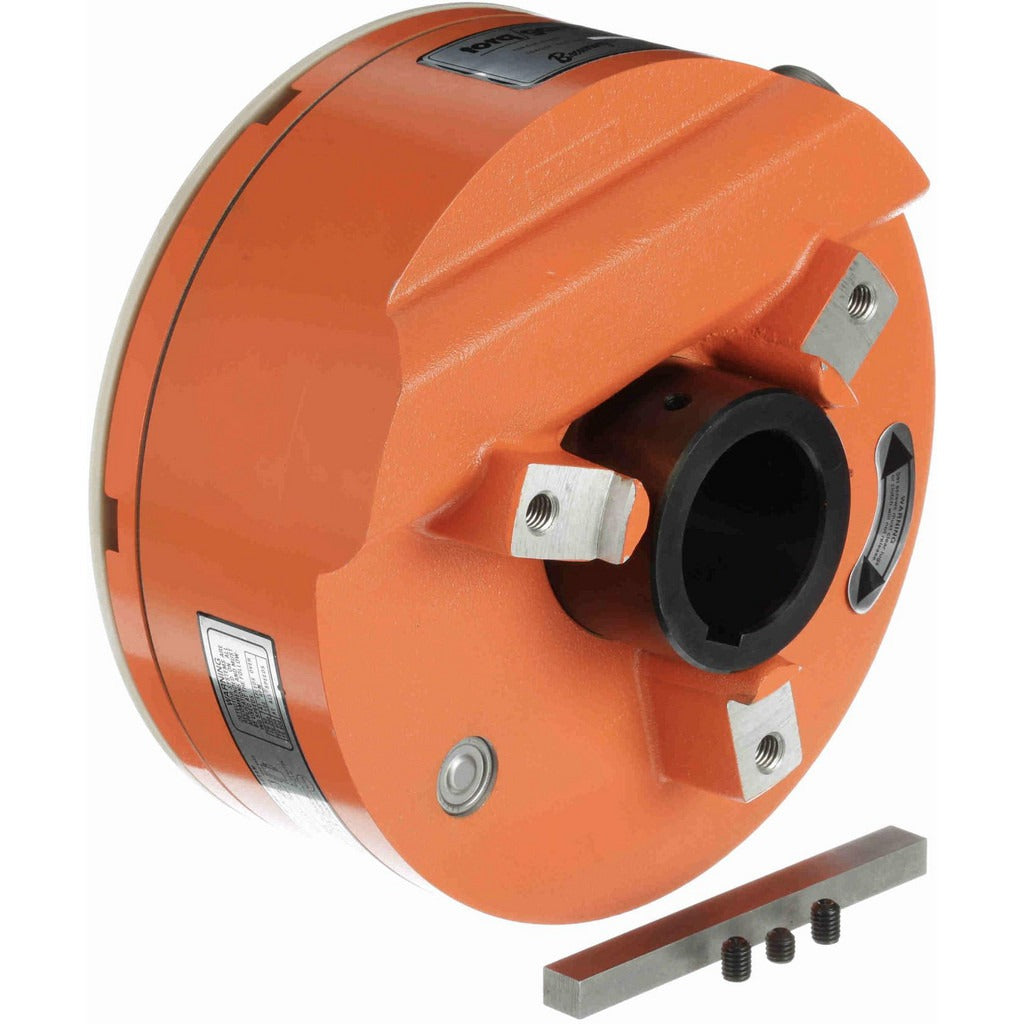

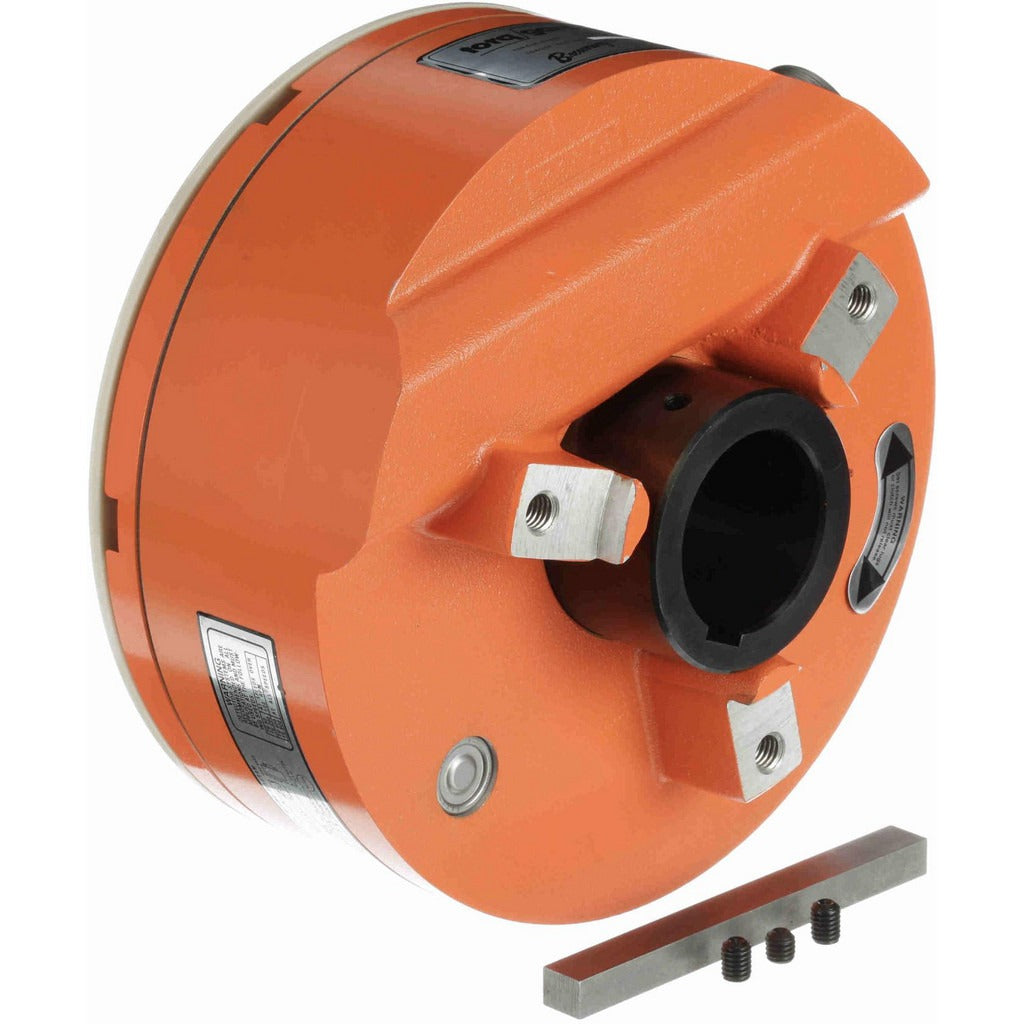

Browning 1295187 Torque Overload Device Clutch

Product Description

The BROWNING 1295187 is a torque overload device clutch designed to protect mechanical drive systems from damage caused by sudden load spikes or jam conditions. When torque exceeds the preset threshold, the clutch disengages the drive, preventing downstream component failure. It supports a maximum bore diameter of 2.43 inches and delivers a static torque range of 4000 to 8000 in/lb. The unit has an overall length of 6.19 inches and a maximum operating speed of 350 RPM. Installation and setup are typically handled by millwrights, industrial mechanics, or drive system technicians working on power transmission equipment.

This clutch is suited for industrial and commercial power transmission applications where overload protection is required on rotating drive shafts. Common install scenarios include conveyor systems, packaging machinery, mixers, and other equipment where a mechanical jam or sudden load increase could damage gearboxes, motors, or driven components. It is intended for use in applications running at or below 350 RPM where static torque demands fall within the 4000 to 8000 in/lb range.

Key Features

• Static torque range of 4000 to 8000 in/lb provides a wide adjustment window for overload protection
• Maximum bore diameter of 2.43 inches accommodates a range of shaft sizes
• 350 RPM maximum speed rating suitable for low-speed drive applications
• Overall length of 6.19 inches for straightforward integration into existing drive trains
• Mechanical overload protection reduces risk of costly gearbox or motor damage

Compatibility

Designed as an OEM-style replacement or direct-fit torque overload device clutch for industrial power transmission drive systems requiring overload protection within the 4000 to 8000 in/lb static torque range.

Installation Notes

Installation should be performed by a qualified industrial mechanic or millwright. De-energize and lock out the drive motor and confirm all stored energy is released before beginning work. Verify shaft diameter is within the 2.43 inch maximum bore capacity before mounting. Do not exceed the 350 RPM maximum speed rating during operation.
