Browning 1295153 Torque Overload Clutch 900 Rpm 1.25 in Bore

Product Description

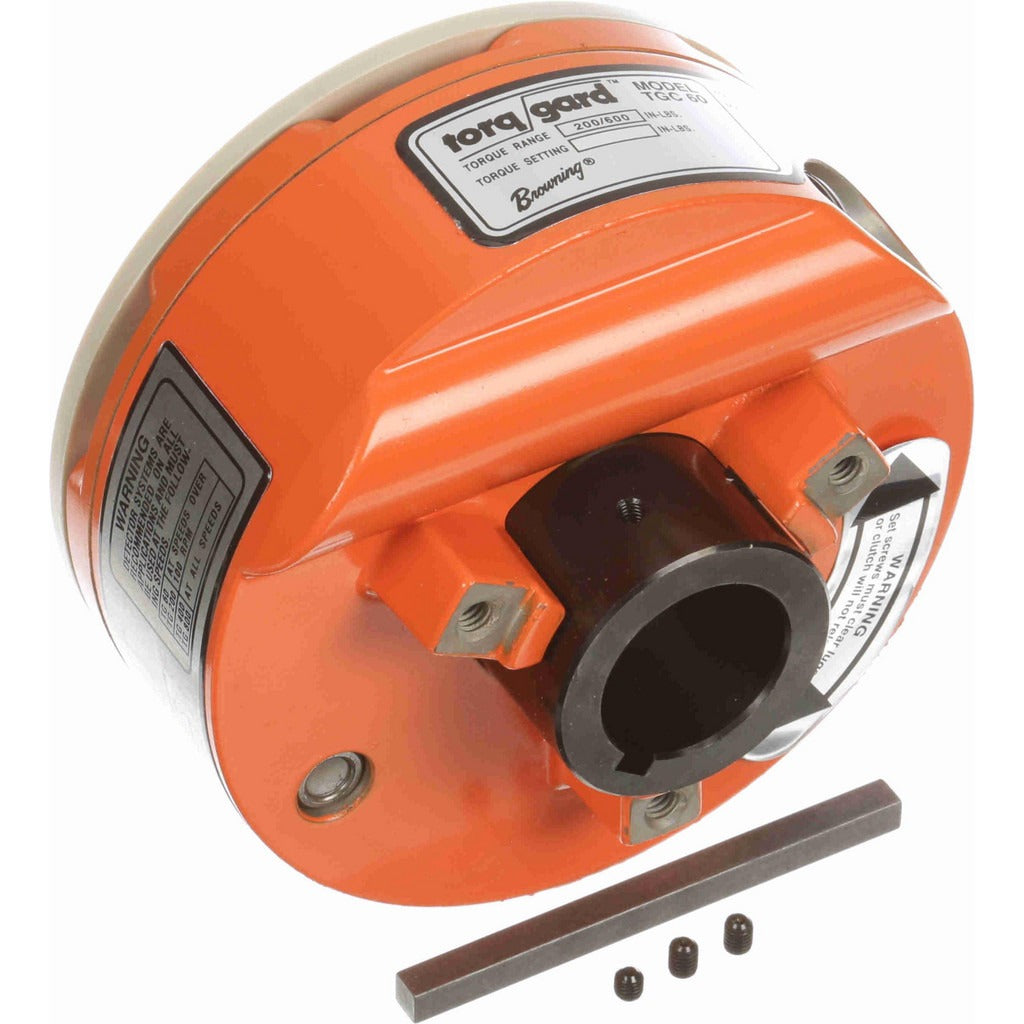

The BROWNING 1295153 is a torque overload device clutch designed to protect drive systems from mechanical damage caused by excessive load. It is a TGC60-series clutch rated for a maximum speed of 900 RPM with an overall length (OAL) of 3.5 inches and a maximum bore diameter of 1.25 inches. The static torque range spans 200 to 600 inch-pounds, making it suitable for a variety of mechanical drive applications. The aluminum housing keeps weight manageable while providing adequate durability for industrial and commercial equipment. Mechanical and maintenance technicians handling conveyor drives, packaging machinery, or pump drive systems typically specify this clutch as an overload protection device.

This clutch is suited for mechanical power transmission systems where protecting downstream components from torque spikes is critical. It fits residential and commercial equipment applications that require a compact overload device. The 1/8 inch keyway accommodates standard keyed shaft connections. The unit ships individually and is appropriate for direct replacement or new installation in drive train assemblies where shaft diameters do not exceed 1.25 inches.

Key Features

• Maximum operating speed of 900 RPM for compatibility with a range of drive applications
• Static torque range of 200 to 600 inch-pounds provides adjustable overload protection
• Overall length of 3.5 inches for compact installation in space-limited drive assemblies
• Maximum bore diameter of 1.25 inches accommodates common keyed shaft sizes
• Aluminum housing reduces overall assembly weight without sacrificing structural integrity
• 1/8 inch keyway for secure shaft engagement using standard keystock

Compatibility

Designed as an OEM-style replacement or direct installation torque overload clutch for mechanical power transmission drive systems with keyed shafts up to 1.25 inches in diameter operating at speeds up to 900 RPM.

Installation Notes

Installation is typically performed by a qualified millwright or mechanical technician. De-energize and lock out all power to the drive system before installing or servicing this clutch. Ensure the shaft diameter and keyway dimensions match the clutch bore and keyway specifications before mounting. Follow applicable machinery safety standards and manufacturer torque guidelines when securing the clutch to the shaft.
