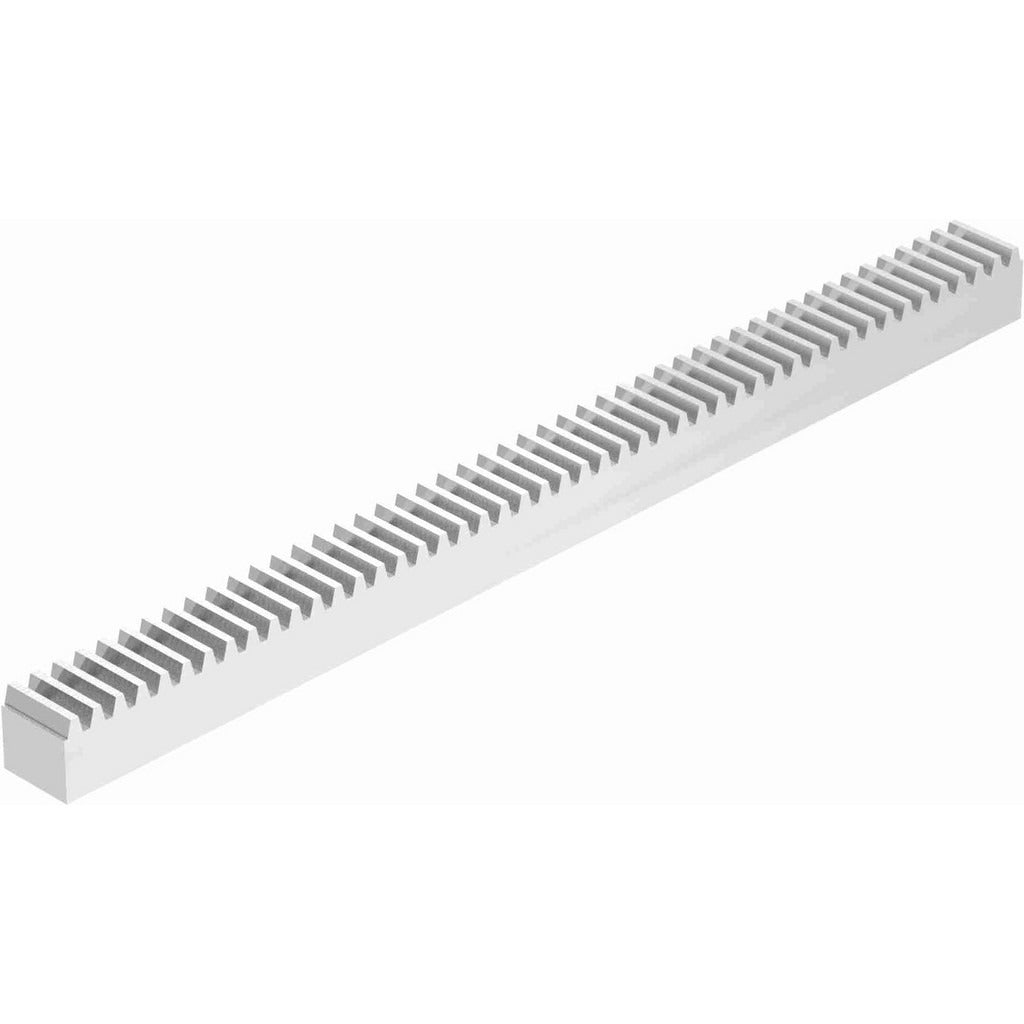

Browning 1234889 Gear Rack 1.5 in 14.5 Degree Spur Gear Steel

Product Description

The BROWNING 1234889 is a steel gear rack designed for use with spur gears in linear motion and power transmission applications. It features a 1.5 inch face width and a 14.5 degree pressure angle, which are standard parameters for spur gear meshing in mechanical drive systems. The steel construction provides the strength and wear resistance expected in industrial and trade settings. This type of gear rack converts rotational motion to linear motion and is typically installed by mechanical technicians, millwrights, or automation specialists working on machinery, conveyor systems, or actuator assemblies.

This gear rack is suited for mechanical systems requiring linear actuation paired with a spur gear pinion. Common applications include industrial automation equipment, machine tool components, gate drive systems, and positioning mechanisms. The 14.5 degree pressure angle is a legacy standard that provides smooth engagement and is found across a wide range of older and current mechanical designs. The 1.5 inch face width accommodates moderate load transmission in compact drive layouts.

Key Features

• 1.5 inch face width for moderate load and compact installation requirements
• 14.5 degree pressure angle matches standard spur gear pinion geometry
• Steel construction for strength and wear resistance in mechanical drive applications
• Compatible with spur gear pinions following standard gear rack meshing conventions
• UNSPSC Code 31171500 for procurement and classification purposes

Compatibility

Designed for use with spur gears. No specific compatible model numbers or system families were provided in the product data. Consult gear ratio and module specifications to confirm pinion compatibility before installation.

Installation Notes

Gear rack installation is typically performed by millwrights or mechanical technicians familiar with power transmission components. Before service, de-energize all connected drive motors and lock out the system per applicable LOTO procedures. Ensure the mating spur gear pinion matches the pressure angle and pitch of this rack before assembly. Proper alignment of the rack relative to the pinion is critical to avoid premature wear and noise.
