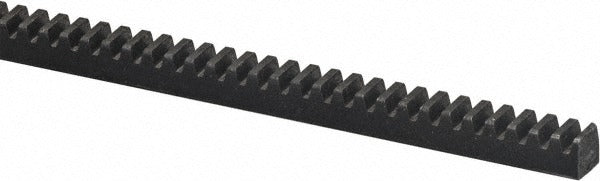

Browning 1234871 Gear Rack 1.5 in Face Width Steel

Product Description

The BROWNING 1234871 is a steel gear rack designed for linear motion drive applications in mechanical and industrial systems. With a 1.5-inch face width and a 14.5-degree pressure angle, this rack delivers reliable tooth engagement for linear actuators, machine slides, conveyor positioning systems, and similar power transmission setups. The 14.5-degree pressure angle is a standard geometry that provides smooth load distribution across the tooth profile. Installation is typically performed by mechanical technicians and millwrights working on machinery requiring precise linear travel control.

This gear rack suits residential and commercial mechanical applications where a standard steel rack-and-pinion arrangement is required. It is commonly used in machine tool slides, positioning stages, automated gate drives, and conveyor indexing systems. The 1.5-inch face width accommodates moderate load capacity while keeping the assembly compact. Pairing with a matched 14.5-degree pressure angle pinion gear is required for proper meshing and performance.

Key Features

• 1.5-inch face width for moderate load and compact installation
• 14.5-degree pressure angle for standard tooth geometry and smooth mesh engagement
• Steel construction for durability in mechanical drive applications
• UNSPSC Code 31171500 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement or new-installation gear rack for mechanical linear motion systems requiring a 1.5-inch face width rack with a 14.5-degree pressure angle and a matched steel pinion gear.

Installation Notes

Gear rack installation is typically performed by a qualified millwright or mechanical technician. Disengage and lock out all power to the machine before handling or mounting. Verify that the mating pinion gear shares the same pressure angle and module or diametral pitch to ensure correct tooth mesh. Secure mounting surfaces should be clean, flat, and properly aligned before fastening the rack to prevent binding or premature tooth wear.
