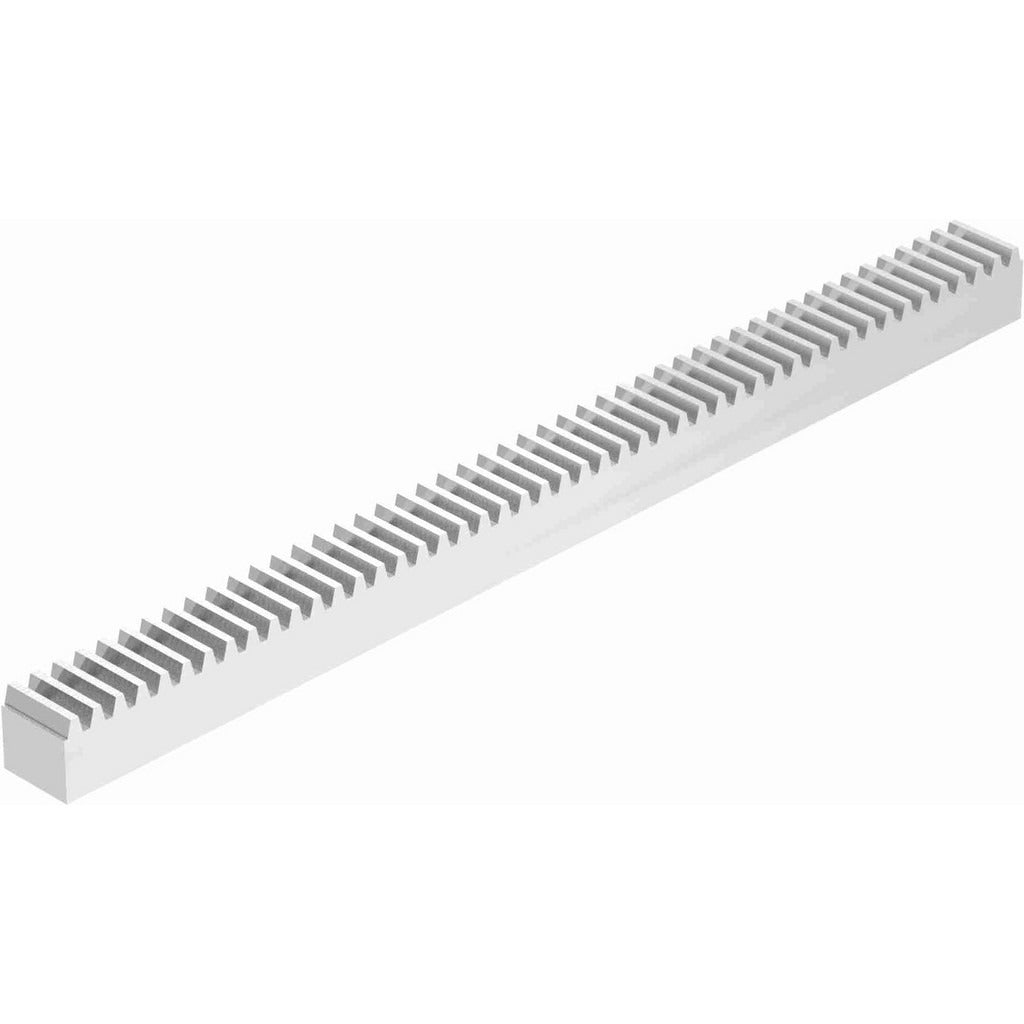

Browning 1234830 Gear Rack 1.25 in 14.5 Degree Spur Gear Steel

Product Description

The BROWNING 1234830 is a steel gear rack designed for use with spur gears in linear motion and power transmission applications. It features a 1.25-inch face width and a 14.5-degree pressure angle, which are standard dimensions for meshing with compatible spur gear stock. Gear racks convert rotational motion to linear motion and are a fundamental component in slides, actuators, positioning systems, and machine tool assemblies. Installation is typically performed by mechanical technicians and machine builders working with drive train and motion control systems.

This gear rack is suited for industrial and mechanical applications where linear actuation is required. The 14.5-degree pressure angle is a traditional standard that ensures proper tooth engagement with matching spur gears. Typical install environments include conveyor systems, rack-and-pinion steering assemblies, CNC positioning stages, and automated machinery requiring precise linear travel. The steel construction provides durability under moderate load and cyclic motion conditions.

Key Features

• 1.25-inch face width for standard spur gear engagement
• 14.5-degree pressure angle matches traditional spur gear tooth geometry
• Steel construction for strength and wear resistance in mechanical drive applications
• Compatible with spur gear stock following the same pitch and pressure angle
• Sold as individual piece with no minimum order requirement beyond single unit

Compatibility

Designed for use with spur gears matching the 14.5-degree pressure angle standard. No specific model or system compatibility data was provided in the product input.

Installation Notes

Gear racks are installed by mechanical technicians or machinists as part of linear motion assemblies. De-energize all power sources and lock out the drive system before mounting or replacing rack components. Ensure the mating spur gear shares the same pitch and pressure angle to achieve proper tooth mesh and avoid premature wear. Secure mounting fasteners to the frame per the equipment manufacturer's specifications.
