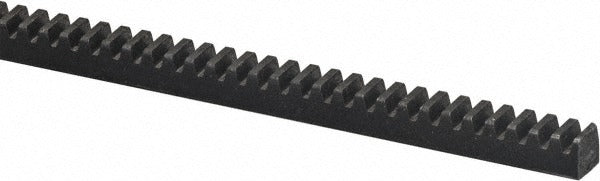

Browning 1234806 Gear Rack 1.25 in 14.5 Deg Steel

Product Description

The BROWNING 1234806 is a steel gear rack designed for linear motion and power transmission applications. With a 1.25-inch face width and a 14.5-degree pressure angle, this rack provides reliable meshing geometry suited to standard spur gear drive systems. Gear racks convert rotational motion into linear movement and are a core component in slides, actuators, positioning stages, and automated equipment. Installation is handled by mechanical and industrial technicians working on precision motion assemblies.

This gear rack is appropriate for both light industrial and trade-equipment applications where a 14.5-degree pressure angle standard is specified. The 1.25-inch face width accommodates moderate load transmission across the gear mesh. It is typically used in systems such as pneumatic or electric actuators, conveyor positioning mechanisms, and machine slides where consistent linear travel and tooth engagement are required.

Key Features

• 1.25-inch face width for moderate load-bearing linear drive applications
• 14.5-degree pressure angle conforms to legacy and standard spur gear mesh geometry
• Steel construction for durability and dimensional stability under load
• Sold as a single unit with no minimum order beyond one piece
• UNSPSC Code 31171500 classifying this as a standard gear rack component

Compatibility

Designed as an OEM-style replacement or new-installation gear rack for linear motion systems specifying a 14.5-degree pressure angle and 1.25-inch face width spur gear interface.

Installation Notes

Gear racks are installed by qualified mechanical technicians or industrial maintenance personnel. De-energize and lock out all power sources before accessing any drive or actuator assembly per applicable LOTO procedures. Ensure mating spur gear pitch and pressure angle match the rack specification before installation. Verify rack mounting surface alignment to prevent tooth binding or uneven wear during operation.
