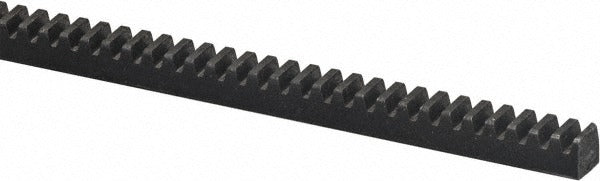

Browning 1234491 Gear Rack 2 in 20 Deg Steel Gray

Product Description

The BROWNING 1234491 is a steel gear rack designed for linear motion applications in mechanical drive systems. With a 2-inch face width and a 20-degree pressure angle, this rack provides consistent tooth engagement and load transfer across a broad range of industrial and commercial machinery. The steel construction delivers the structural rigidity needed for sustained cycling under load. The gray finish is standard for this rack profile. Licensed mechanical and industrial technicians, as well as millwrights and qualified maintenance personnel, are the typical installers.

This gear rack suits applications where rotary motion must be converted to precise linear movement, such as in conveyor systems, positioning stages, automation equipment, and machine tool assemblies. The 2-inch face width accommodates wider pinion gears and distributes load across a greater tooth surface, making it appropriate for moderate to heavy-duty drive configurations in both production and maintenance-replacement contexts.

Key Features

• 2-inch face width supports wider pinion engagement and improved load distribution
• 20-degree pressure angle provides a strong tooth profile with good efficiency and smooth mesh
• Steel construction for high structural rigidity and resistance to wear under cyclic loading
• Gray finish is standard for this rack profile
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed for use with mating pinion gears cut to a 20-degree pressure angle and sized to match a 2-inch face width rack. Verify pitch and module specifications against the mating pinion before installation.

Installation Notes

Gear rack installation is typically performed by a qualified millwright, mechanical technician, or industrial maintenance professional. De-energize and lock out all drive systems before beginning any rack installation or replacement work. Ensure the mounting surface is flat and properly aligned to avoid uneven tooth loading and premature wear. Rack and pinion backlash should be set according to the drive system manufacturer's guidelines using appropriate feeler gauges or dial indicators.
