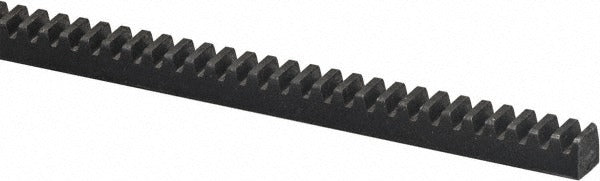

Browning 1234459 Gear Rack 1.25 in 20 Degree Steel Gray

Product Description

The BROWNING 1234459 is a steel gear rack designed for linear motion power transmission applications. With a face width of 1.25 inches and a 20-degree pressure angle, this rack delivers reliable meshing geometry suitable for precision drive systems. The gray steel construction provides structural rigidity appropriate for demanding mechanical environments. This component is installed by mechanical technicians, millwrights, and industrial maintenance professionals working on automated machinery, conveyors, positioning systems, and similar linear actuator setups.

This gear rack is suited for use in industrial and commercial mechanical drive assemblies where a linear gear interface is required. The 20-degree pressure angle is a widely adopted standard in power transmission design, making this rack compatible with standard mating spur gears of the same pitch and pressure angle. Typical installation scenarios include machine tool slides, gantry systems, material handling equipment, and automation platforms requiring repeatable linear travel.

Key Features

• 1.25-inch face width provides a broad contact surface for load distribution
• 20-degree pressure angle conforms to standard power transmission geometry
• Steel construction for high strength and wear resistance in demanding applications
• Gray finish for identification and corrosion surface treatment
• Designed for meshing with standard spur gears of matching pitch and pressure angle

Compatibility

Designed as an OEM-style replacement or new-installation gear rack for linear motion assemblies using standard spur gears with a matching pitch and 20-degree pressure angle.

Installation Notes

Gear rack installation is typically performed by qualified millwrights or mechanical technicians. De-energize all drive systems and lock out power sources before removing or installing any gear rack. Ensure proper alignment between the rack and mating pinion gear to maintain correct backlash and tooth engagement. Secure mounting fasteners to the rack and supporting structure according to the equipment manufacturer specifications.
