Browning 1095827 l belt section fhp belt 94.8 pitch 96 in outside length 5l section 9/32 in width 4/25 in thickness

Product Description

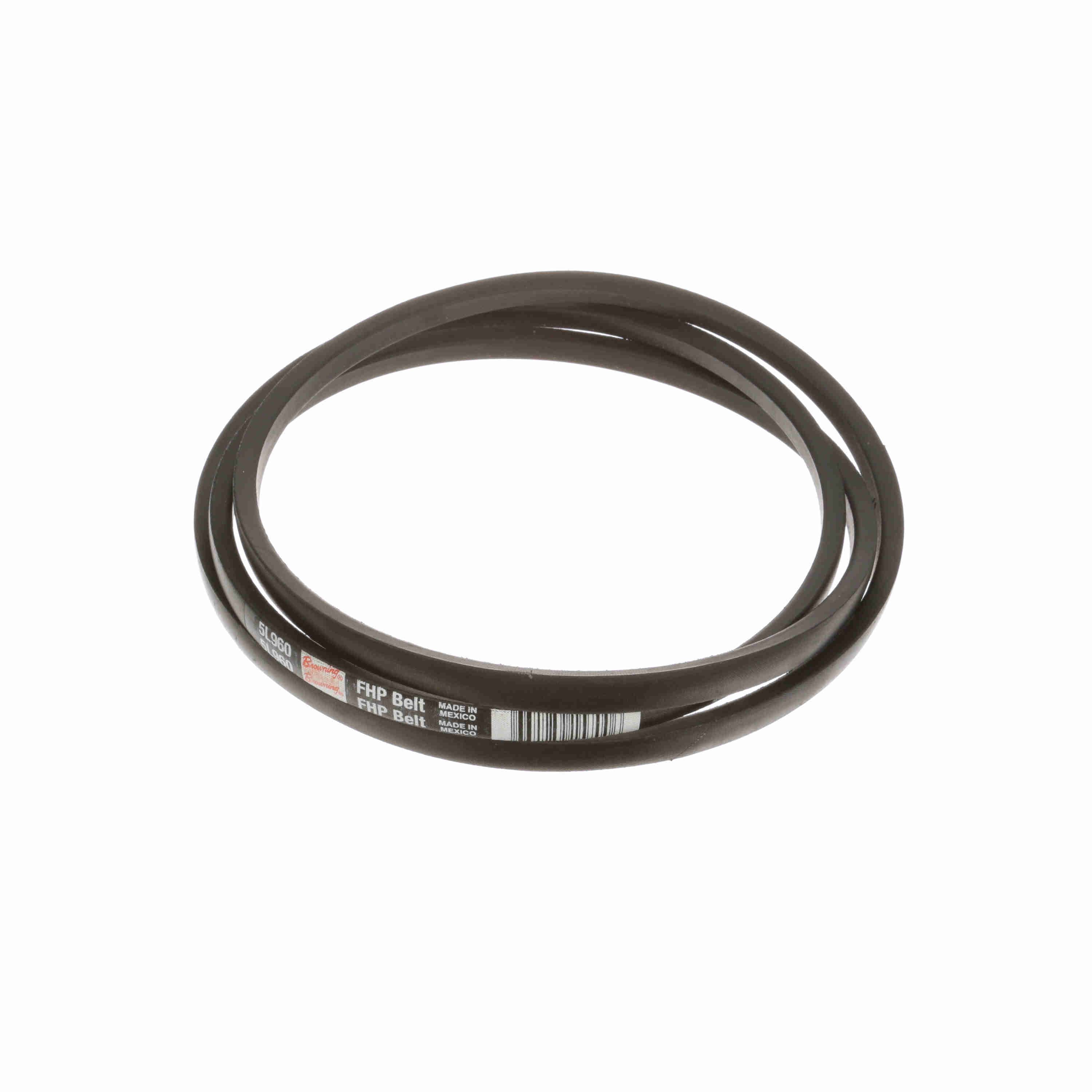

The Browning 1095827 is a Standard V-Belt, specifically an L Belt Section FHP (Fractional Horsepower) belt. This non-cogged belt features a 94.8 inch pitch length and a 96-inch outside length, designed for light-duty power transmission. With a 5L cross-section and a 9/32-inch belt width, it is suitable for applications requiring flexibility and smooth operation, such as HVAC, agricultural, and general-purpose fractional-horsepower drives. It is constructed from EPDM material, offering oil and heat resistance.

• Standard V-Belt with L Belt Section and 5L cross-section for fractional horsepower applications.
• Features a 94.8 inch pitch length and 96-inch outside length for precise fit.
• Constructed from EPDM material, providing oil and heat resistance for durability.

Product Highlights

FHP V-belt with 96-inch outside length, 5L section, and EPDM construction for reliable light-duty power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095827
• Country of Origin: US

Technical Specifications

• Belt Industry Code: 5L960
• Belt Style: L
• Belt Thickness: 4/25"
• Belt Type: Standard V-Belt
• Cubic Measurement: 0.0916
• UPC: 662289157006
• Manufacturer: Regal Rexnord
• BSC Item: 5L960 BRWN
• Standards: RMA Standard
• Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper and Unit Handling
• Cross Section: 5L
• Top Width: 21/32 in
• Outside Length: 96 in
• Number of Ribs: 1
• Operating Temperature Range: -60F to 250F degrees
• Material: EPDM
• Pitch Length: 94.8 in
• Product Type: FHP V-Belt
• Number of Bands: 1
• Measurement System: Imperial
• Tensile Material: Cotton
• Construction Type: Wrapped
• Belt Series: FHP Belts
• Cogged: No
